Page - 23
ChlorSync
®

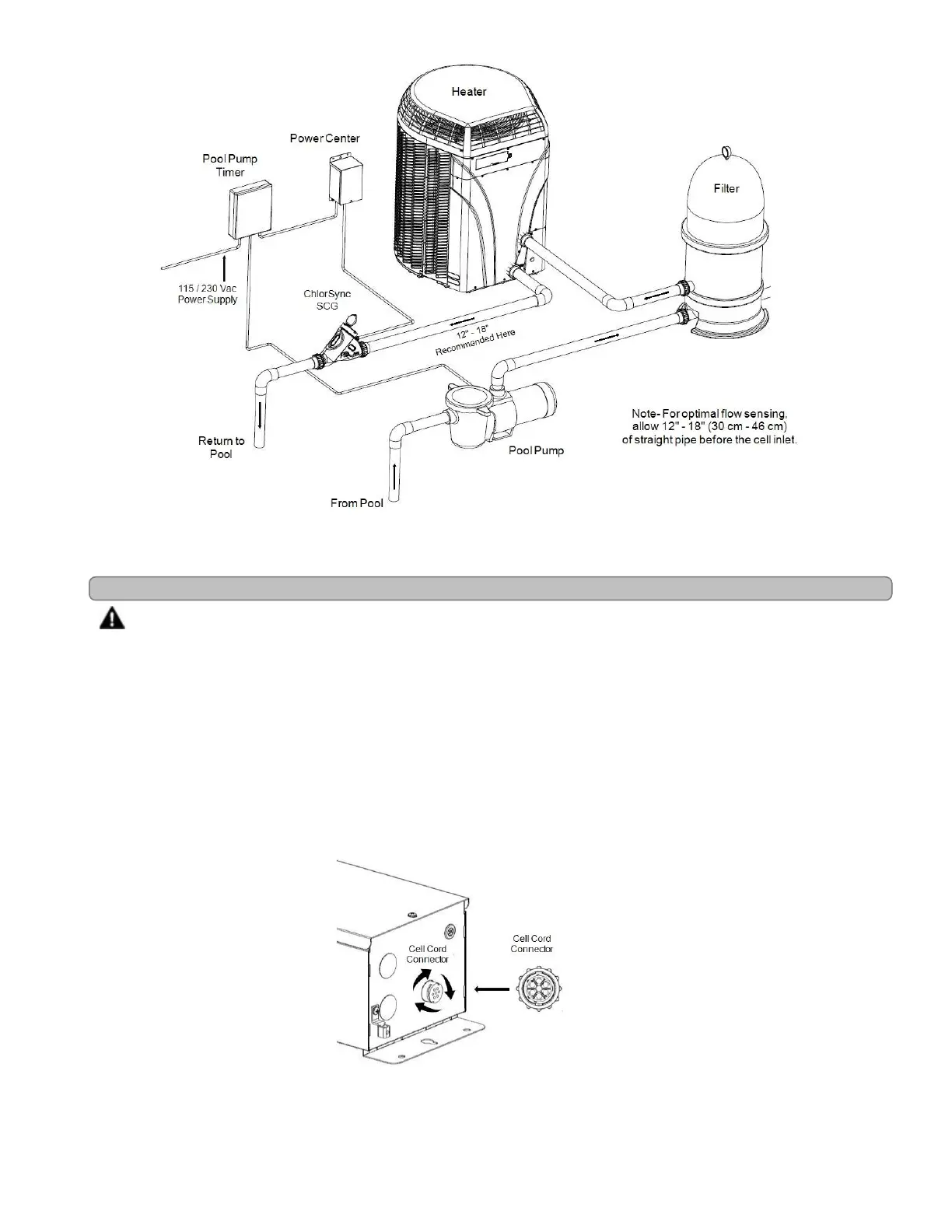

System Installation Example
Figure 12
Connecting the ChlorSync
®
Cell Cable to the Power Center
WARNING - Failure to heed the following may result in permanent injury or death.
l RISK OF ELECTRICAL SHOCK - All electrical connections should be made by a licensed electrician or
certified electrical contractor.
l RISK OF ELECTRICAL SHOCK - Disconnect all AC power when installing, before making any
connections or servicing this system.
Once the ChlorSync
®
cell is installed, connect the cell cord to the power center.
1.
The AC power should be switched OFF before connecting the power cord to the power center or the
cell may short circuit.
2.
Align and insert the six (6) pin cell cord connector with the receptacle on the bottom of the power
center. Turn the round nut until it locks the connector in place.
Cell Cord Connector
Figure 13
