SECTION 4 - SPECIFICATIONS AND APPROVALS
4.1 Specifications
For more information on sizing, see our Commercial Sizing Calculator on our website at
https://apservicecenter.com/sizing
Model Designation PPP-2 PPP-3 PPP-4 PPP-5 PPP-6
Max. Chlorine Output w / PPC5 Cell
(lbs/day)
5.24 lbs/day
(2.38 kg)
7.86 lbs/day
(3.57 kg)
10.48 lbs/day
(4.75 kg)
13.1 lbs/day
(5.94 kg)
15.72 lbs/day
(7.13 kg)
Max. Chlorine Output w / Convection
Cell (no manifold) (lbs/day)
4.53 lbs/day
(2.05 kg)
6.79 lbs/day
(3.08 kg)
9.06 lbs/day
(4.11 kg)
11.32 lbs/day
(5.14 kg)
13.59 lbs/day
(6.16 kg)
Rated Power in AC Amps 230 V/4.4 A 230 V/6.6 A 230 V/8.8 A 230 V/11.0 A 230 V/13.2 A
Minimum Water Flow Rate (gpm) 30 – 50 gpm (6.8 – 11.3 m³/hr)
Maximum Water Flow Rate (gpm) 70 gpm (22.6 m³/hr)
ORP Input (Dry contact)
10 mA typical (ORP controllers with 110 V output and multiple power supplies will
require relay kit part #110-ORP: ORP Relay Box (110V US plug)
Weight (Power Supply) 83 lbs. 91 lbs. 99 lbs. 107 lbs. 115 lbs.
Weight (Manifold) 10 lbs. 20 lbs. 20 lbs. 30 lbs. 30 lbs.
Convection Cells 10 lbs. 15 lbs. 20 lbs. 25 lbs. 30 lbs.

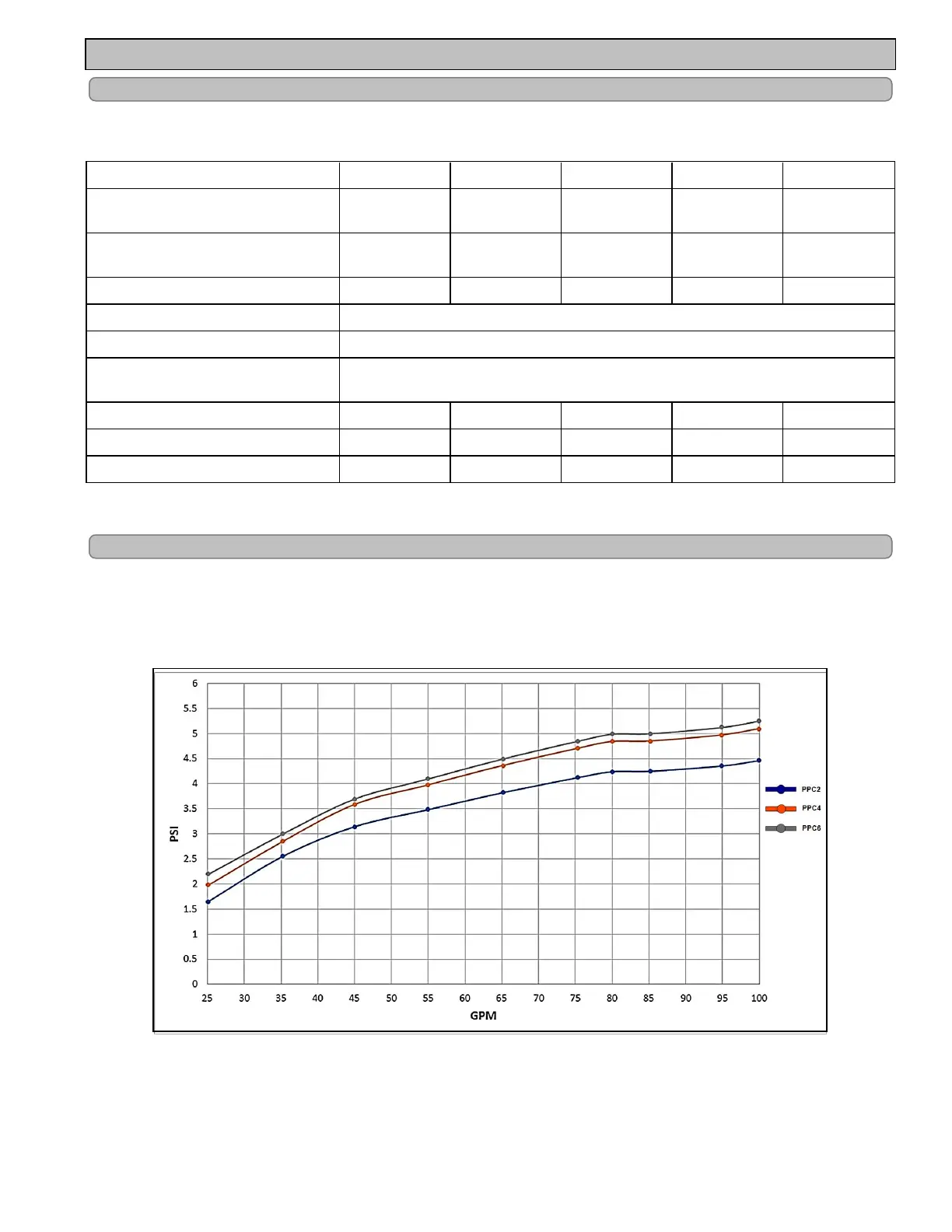

4.2 Manifold Pressure Drop vs Flow
The following chart shows pressure drop versus flow for Pool Pilot
®
Professional manifolds.
Pool Pilot
®
Professional Manifold Pressure Drop vs. Flow
Figure 4
