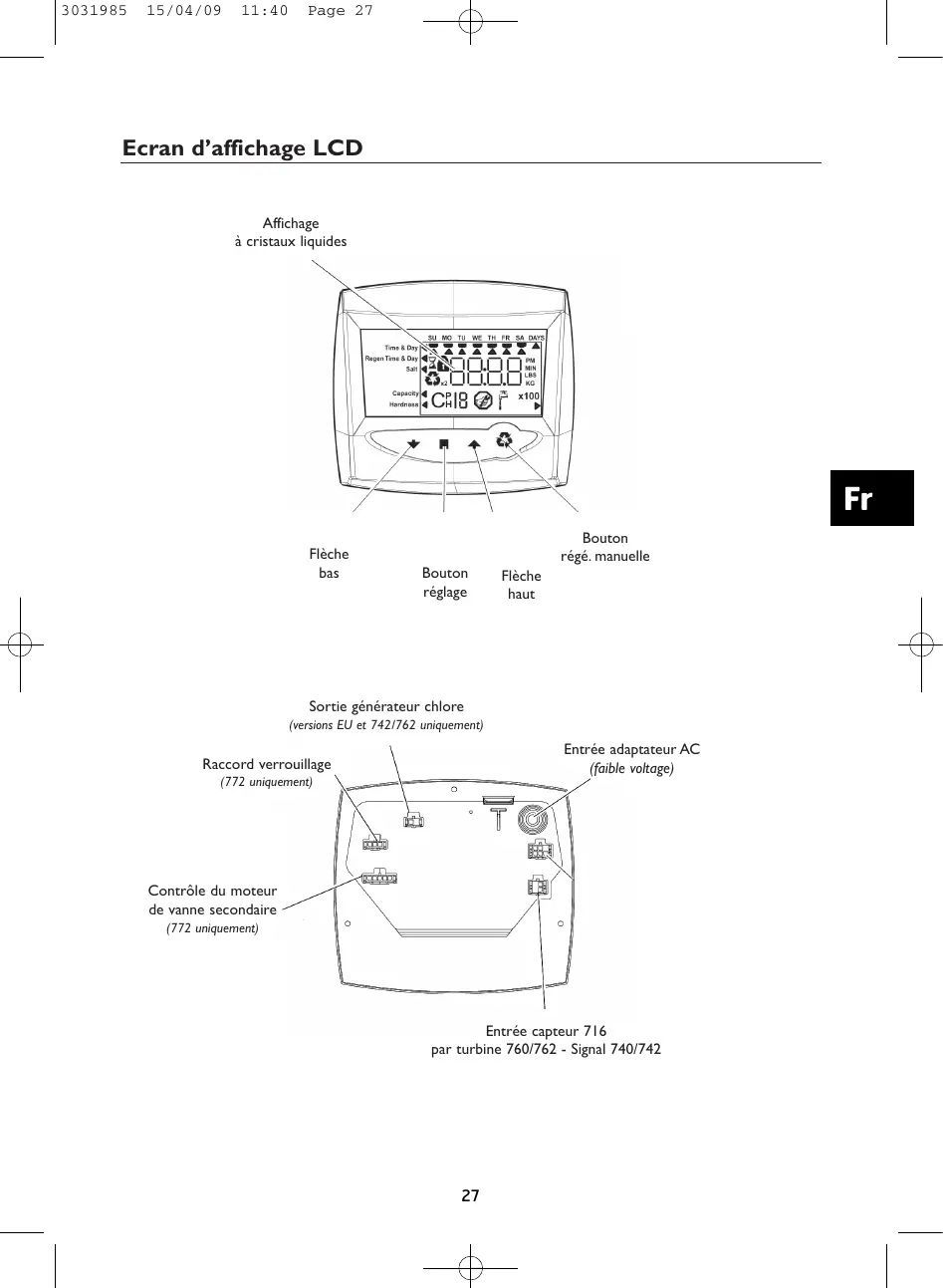

Ecran d’affichage LCD
Affichage
à cristaux liquides
Bouton
régé. manuelle
Flèche
bas
Flèche
haut
Bouton
réglage
Contrôle du moteur
de vanne secondaire
(772 uniquement)
Sortie générateur chlore
(versions EU et 742/762 uniquement)
Raccord verrouillage
(772 uniquement)
Entrée adaptateur AC
(faible voltage)
Entrée capteur 716
par turbine 760/762 - Signal 740/742
27
Fr
3031985 15/04/09 11:40 Page 27
