Autotrol LOGIX 255/740 - LCD Display Overview

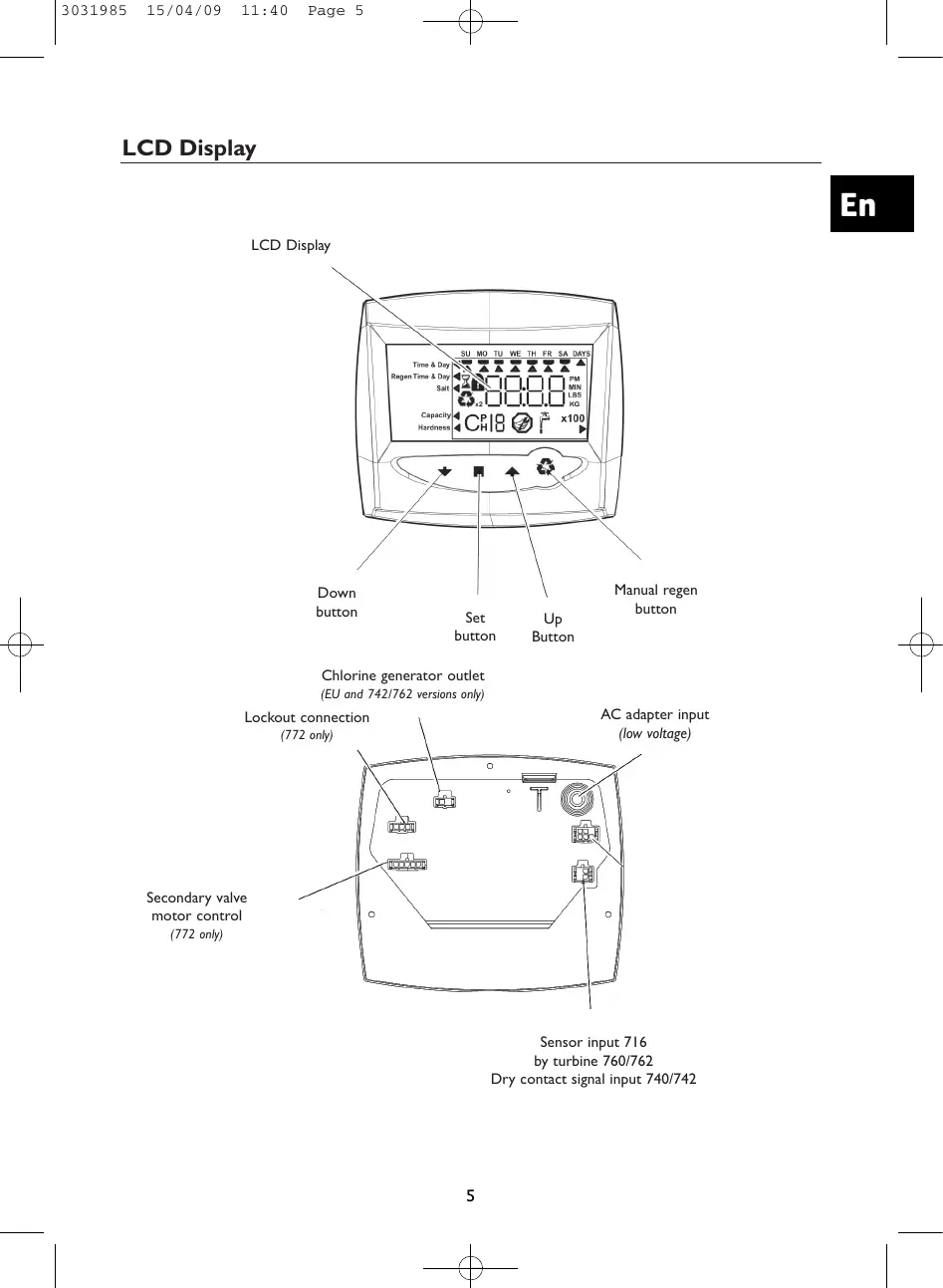

LCD Display
LCD Display
Manual regen
button
Down
button
Up
Button
Set
button
Secondary valve
motor control
(772 only)
Chlorine generator outlet
(EU and 742/762 versions only)
Lockout connection
(772 only)
AC adapter input
(low voltage)
Sensor input 716
by turbine 760/762
Dry contact signal input 740/742
