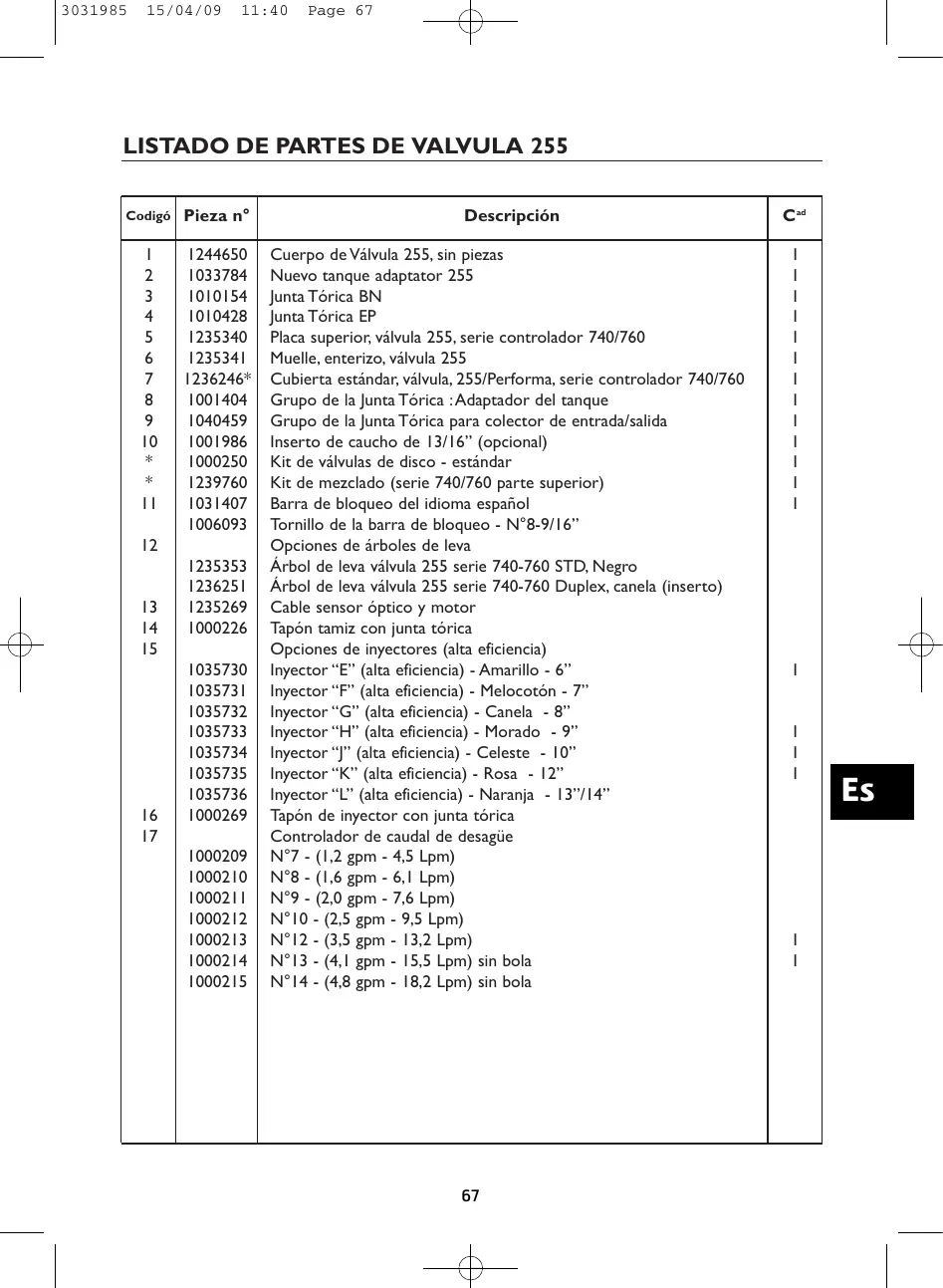

LISTADO DE PARTES DE VALVULA 255
1
2
3
4
5
6
7
8
9
10
*
*
11
12
13
14
15
16
17
1244650
1033784
1010154
1010428
1235340
1235341
1236246*
1001404
1040459
1001986
1000250
1239760
1031407
1006093
1235353
1236251
1235269
1000226
1035730
1035731
1035732
1035733
1035734
1035735
1035736
1000269
1000209
1000210
1000211
1000212
1000213
1000214
1000215
Cuerpo de Válvula 255, sin piezas
Nuevo tanque adaptator 255
Junta Tórica BN
Junta Tórica EP
Placa superior, válvula 255, serie controlador 740/760
Muelle, enterizo, válvula 255
Cubierta estándar, válvula, 255/Performa, serie controlador 740/760
Grupo de la Junta Tórica :Adaptador del tanque
Grupo de la Junta Tórica para colector de entrada/salida
Inserto de caucho de 13/16” (opcional)
Kit de válvulas de disco - estándar
Kit de mezclado (serie 740/760 parte superior)
Barra de bloqueo del idioma español
Tornillo de la barra de bloqueo - N°8-9/16”
Opciones de árboles de leva
Árbol de leva válvula 255 serie 740-760 STD, Negro
Árbol de leva válvula 255 serie 740-760 Duplex, canela (inserto)
Cable sensor óptico y motor
Tapón tamiz con junta tórica
Opciones de inyectores (alta eficiencia)
Inyector “E” (alta eficiencia) - Amarillo - 6”
Inyector “F” (alta eficiencia) - Melocotón - 7”
Inyector “G” (alta eficiencia) - Canela - 8”
Inyector “H” (alta eficiencia) - Morado - 9”
Inyector “J” (alta eficiencia) - Celeste - 10”
Inyector “K” (alta eficiencia) - Rosa - 12”
Inyector “L” (alta eficiencia) - Naranja - 13”/14”
Tapón de inyector con junta tórica
Controlador de caudal de desagüe
N°7 - (1,2 gpm - 4,5 Lpm)
N°8 - (1,6 gpm - 6,1 Lpm)
N°9 - (2,0 gpm - 7,6 Lpm)
N°10 - (2,5 gpm - 9,5 Lpm)
N°12 - (3,5 gpm - 13,2 Lpm)
N°13 - (4,1 gpm - 15,5 Lpm) sin bola
N°14 - (4,8 gpm - 18,2 Lpm) sin bola
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Codigó
Pieza n° Descripción C
ad
67
Es
3031985 15/04/09 11:40 Page 67
