Indoor heat exchanger
(Evaporation)
Compressor
(Compression)
Outdoor heat exchanger
(Condensation)
Capillary
(Throttling)
Steam-gas of low pressure
Super cooled liquid of high
pressure
Liquid of low
pressure
(also a little gas)
Gas of high pressure &
temperature
14

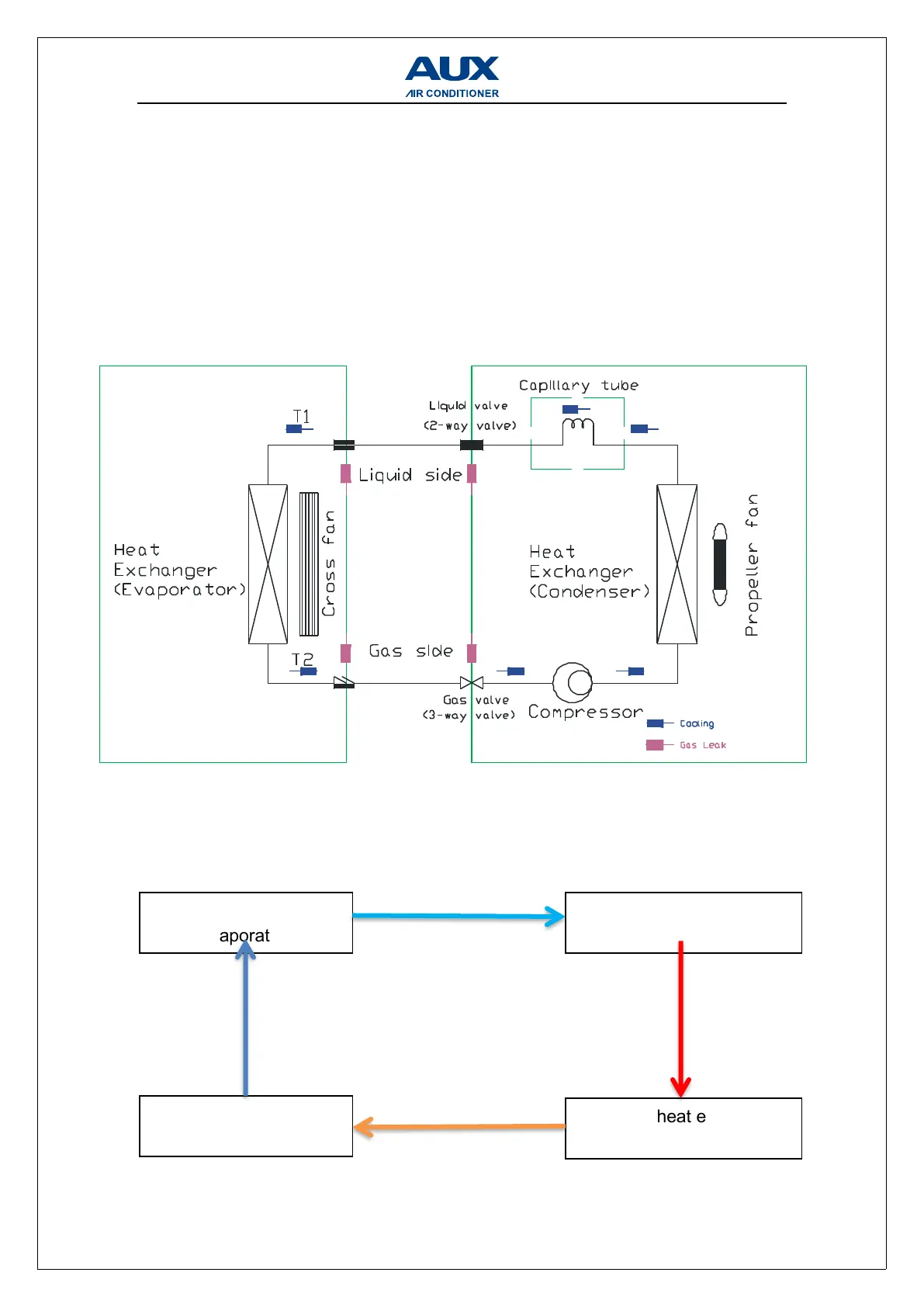

5. Refrigerant System Diagram
5-1 Cooling Only
2 Cooling Mode
3
Cooling Cycle
Indoor Unit
Outdoor Unit
