AUX FREEDOM Series User Manual

16

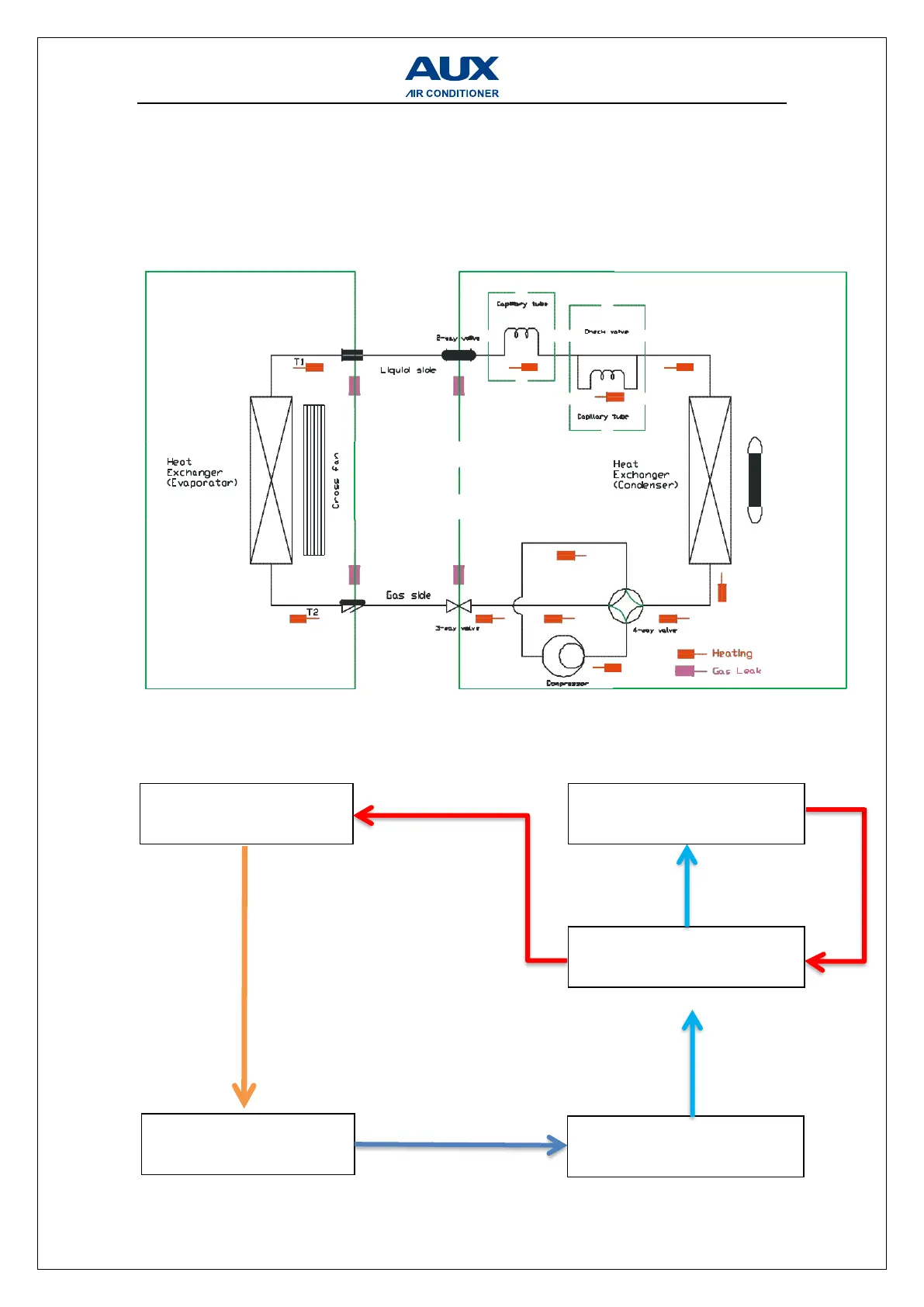

Outdoor heat exchanger
(Condensation)
Capillary
(Throttling)
Steam-gas of low
pressure
Super cooled liquid of high
pressure
Super cooled liquid of
low pressure
15
7 Heating Cycle
Indoor heat exchanger
(Evaporation)
Compressor
(Compression)
Gas of high pressure
& temperature
4-
way valve
(Heat pump only)
6 Heating Mode
Indoor Unit
Outdoor Unit

AUX FREEDOM Series Specifications

General

Power Supply	220-240V, 50Hz
Type	Split
Energy Efficiency Class Heating	A
Features	Auto Restart, Sleep Mode
Operating Temperature Range (Cooling)	18°C to 43°C
