PAGE 16 INSTALLATION (CONT.)

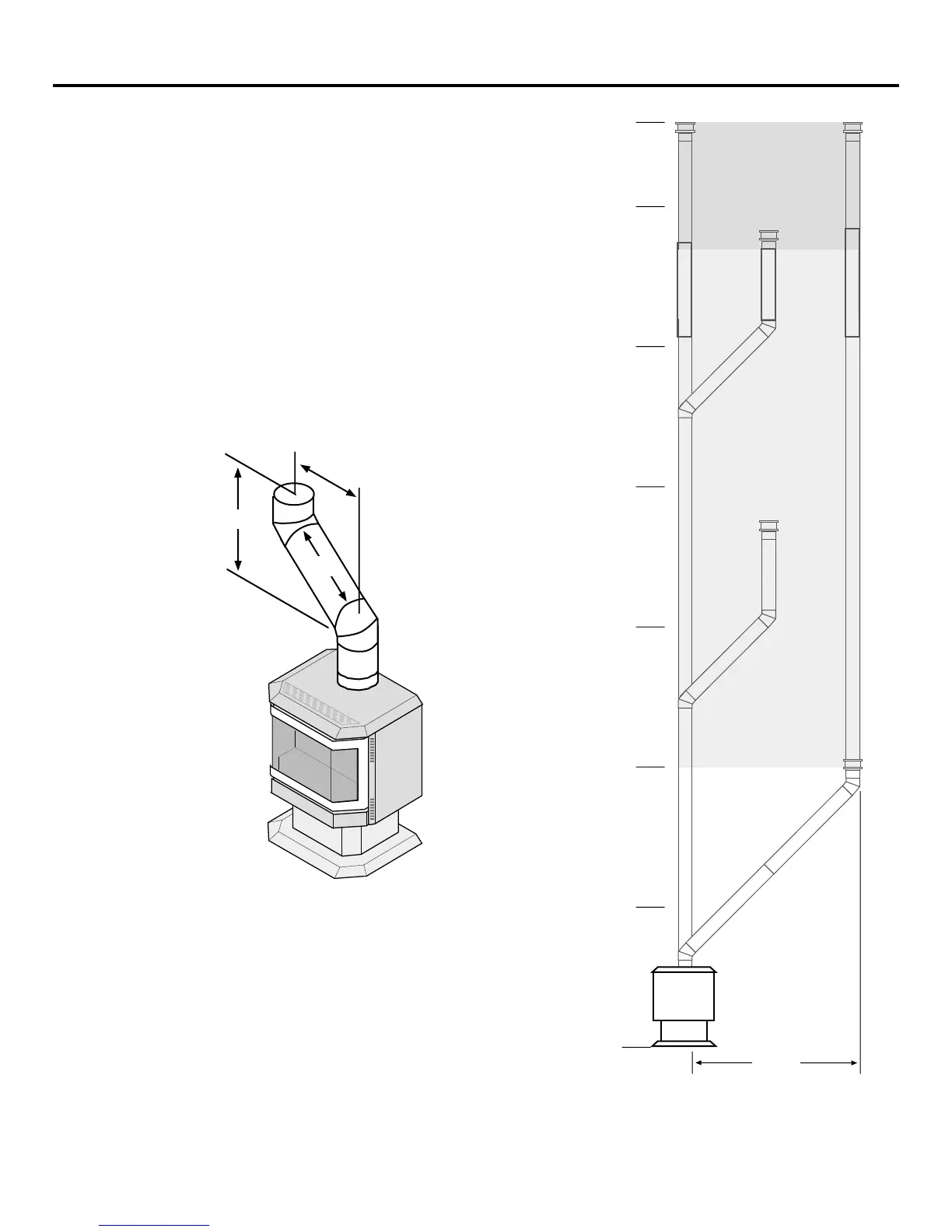

Approved Configurations with:
Vertical Termination (No Elbows)
- or -
Verticall Terminations with two 45° Elbows
¥ 10' Minimum Height (with or without offsets)
¥ 33' Maximum Height
¥ 6' Maximum Offset
¥ Use restrictor position indicated by the area that your
termination falls in
Offset
Length
Horizontal
Offset
Vertical
Rise
Offset Length Horizontal Offset Vertical Rise
None 5" 1'
1' Section 1' 1' 7"
2' Section 1' 9" 2' 4"
3' Section 2' 5" 3'
4' Section 3' 2" 3' 8"
4' + 1' Section 3' 9" 4' 4"
4' + 2' Section 4' 6" 5'
4' + 3' Section 5' 2" 5' 9"
4' + 4' Section 6' 6' 9"
5 feet
10 feet
15 feet
20 feet
25 feet
30 feet
33 feet
0 feet
6 feet
(min. height)
Restrictor
#4
Restrictor
#5
