Avalon A - Installation Procedures: Pedestal and Shell; Pedestal Attachment Details; Stove Shell Panel Assembly

INSTALLATION (CONT.) PAGE 7

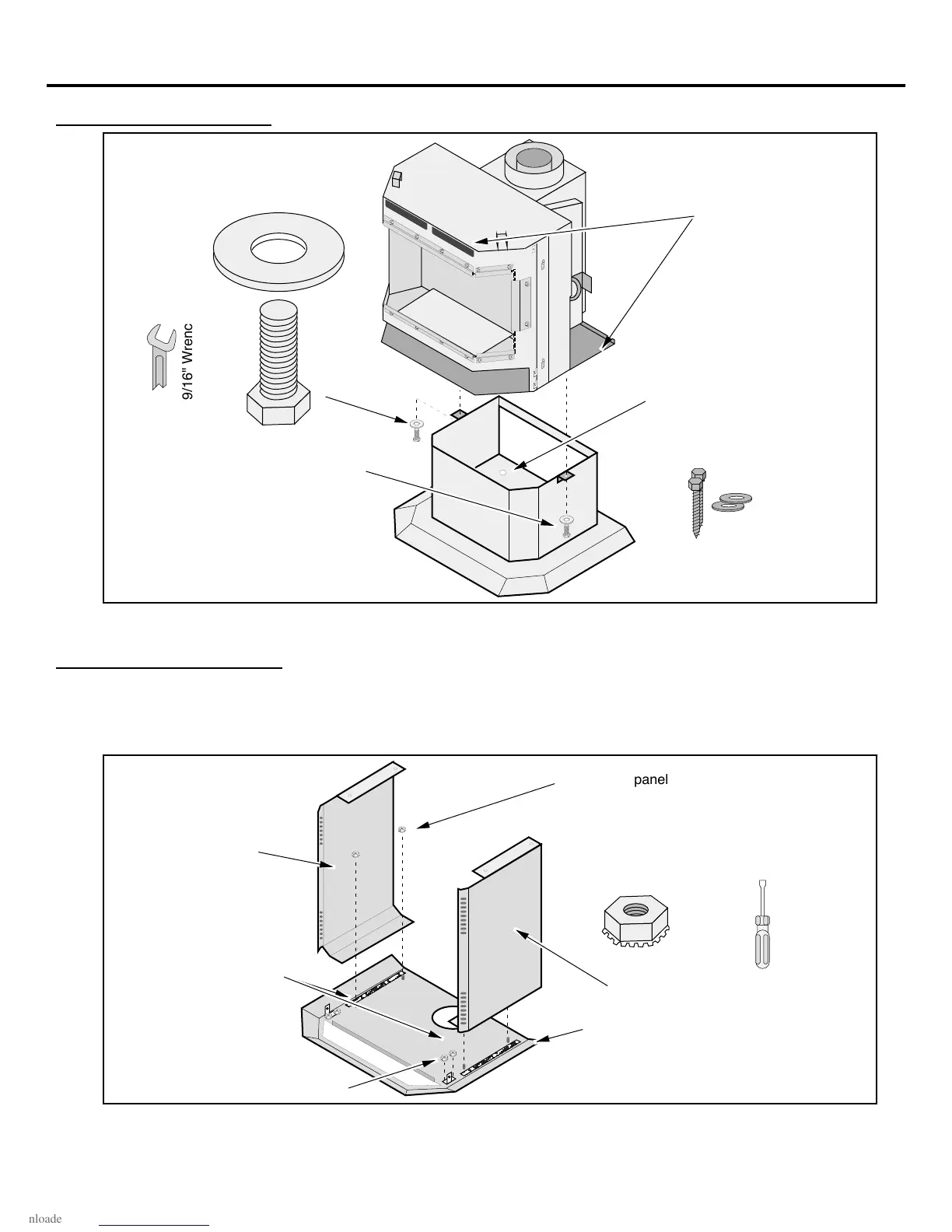

Pedestal Attachment
AA
AA
A
A
A
AA
AA
9/16" Wrench
Use a 9/16" wrench to
attach the two pedestal
bolts to the bottom of the
heater.
Lift from here
MOBILE HOME
INSTALLATIONS:
The lag bolts and washers
must be inserted through
these holes to anchor the
pedestal to the floor.
Stove Shell Assembly
1 Place the top panel upside down against a non-scratching surface. Attach the two strips of gasket
along the outside of the two studs on each side. Attach each side panel to the top panel with two 10-
32 lock-washer hex nuts (the smaller of the hex nuts) Ð use a 3/8" nutdriver - DO NOT OVER-
TIGHTEN. Attach each forward mounting bracket with two 10-32 nuts - use a 3/8" nutdriver.
AAA
AAA
Lay the top panel on a non-scratching
surface upside down. Attach the side
panels to the top panel with the four 10-32
hex nuts (the smaller of the two sizes)
until the gasket compresses.
Apply the two 6" long
gaskets along the
outside of the studs
Left side panel
Right side panel
Attach each Forward Mounting
Brackets with two 10-32 nuts.
Top panel
AAA
AAA
3/8" Nutdriver
