INSTALLATION (CONT.) PAGE 21

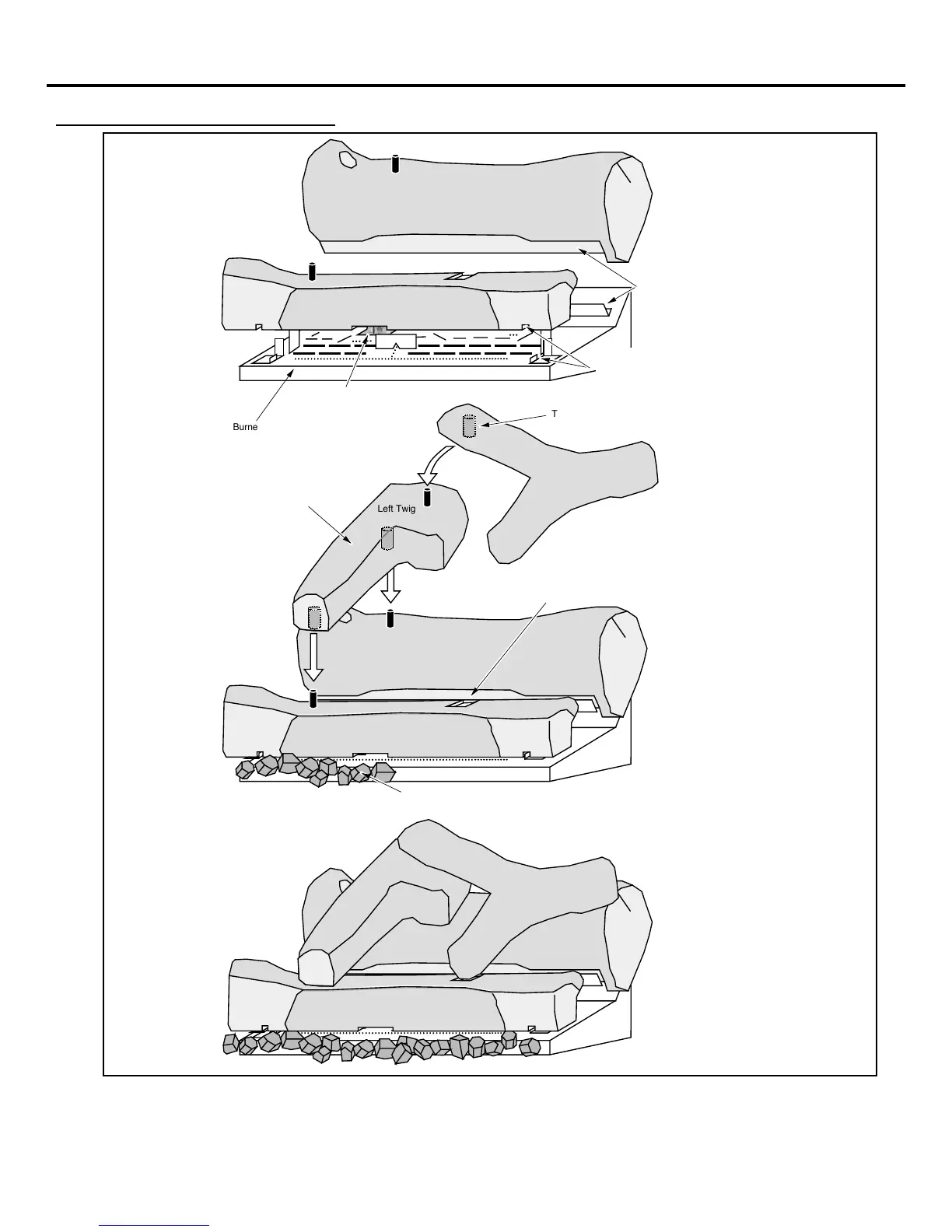

Log and Ember Installation
When in place, the
logs look like this.
The rear log has a flat portion
that rests on this ledge
Rear Log (largest)
The front log has two slots that
straddle the clips on both sides
(push the log all the way back).
Pilot Assembly
Front Log
Place the twig so the lower
branch rests inside this channel.
The left twig has two holes to accept
the pins in the front and rear log.
A
A
A
A
A
A
A
A
A
A
Left Twig
The right twig has a hole for
the pin on the left twig.
Place the coals on this ledge at the front of the firebox .
Do not place the coals over the burner holes.
A
A
A
A
A
Right Twig
Burner Pan
