PAGE 20 INSTALLATION (CONT.)

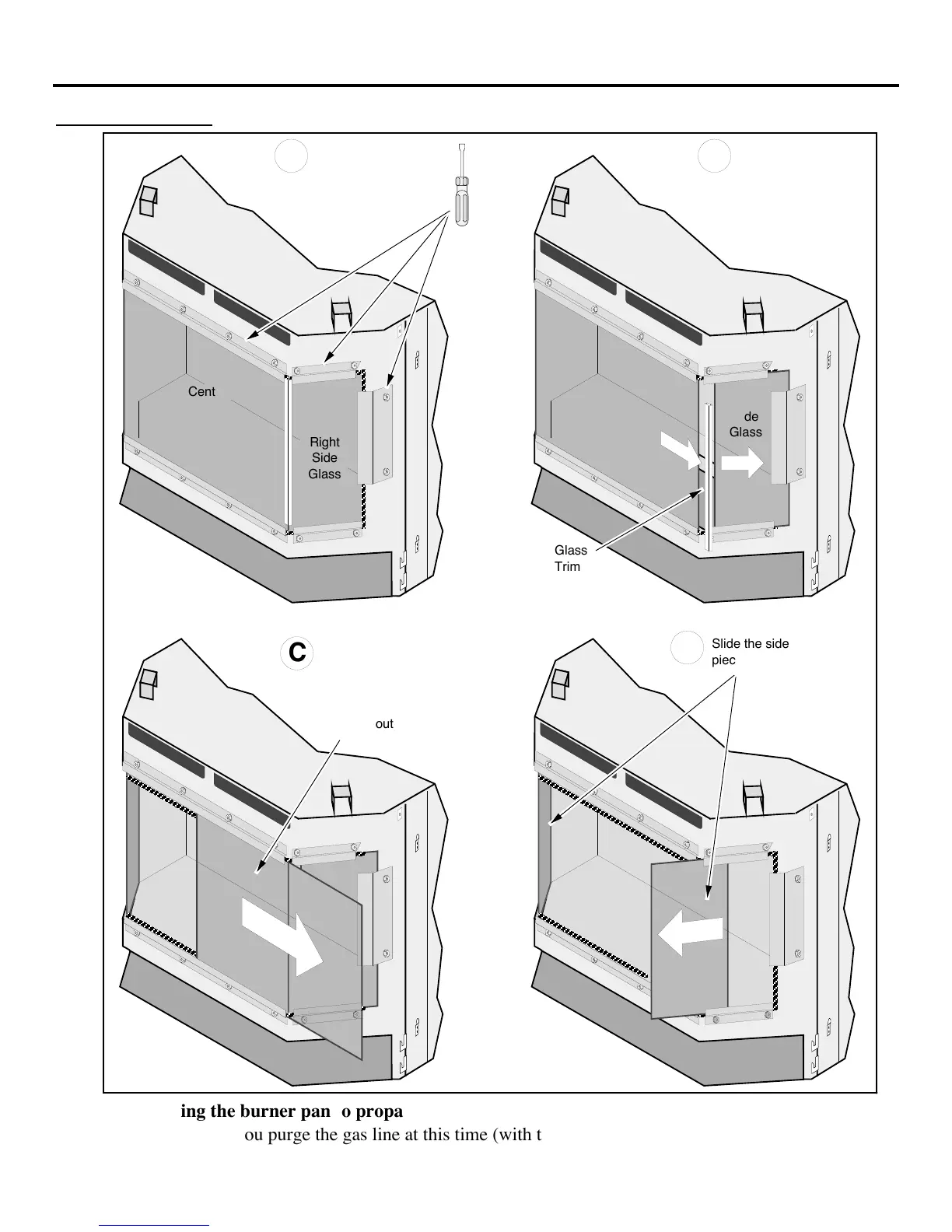

Glass Removal
AAA
AA
A
A
A
A
A
AAA
AAA
AA
AA
Right
Side
Glass
Center
Glass
Loosen all of the nuts
that hold the glass clips
against the glass.
Loosen two turns.
5/16" Nutdriver
A
Slide the right side
glass to the right
until the glass trim
can be removed.
AAA
AA
A
A
A
A
A
AAA
AAA
A
A
Center
Glass
Right
Side
Glass
Glass
Trim
B
AAA
AAA
AA
Right
Side
Glass
Slide the
center
glass out
AAA
AAA
AAA
AAA
AAA
A
AAA
C
AAA
AAA
A
Slide the side
pieces of glass out
AAAAA
AAAAA
AAAAA
AAAAA
AAAA
AAAA
AAAA
A
AAA
A
A
A
A
A
A
D
+ If switching the burner pan to propane (LP), do so now.
+ We recommend you purge the gas line at this time (with the glass removed). This allows gas to be
detected once it enters the firebox, ensuring gas does not build up.
