Avant 220/225
30
Controls of the Loader

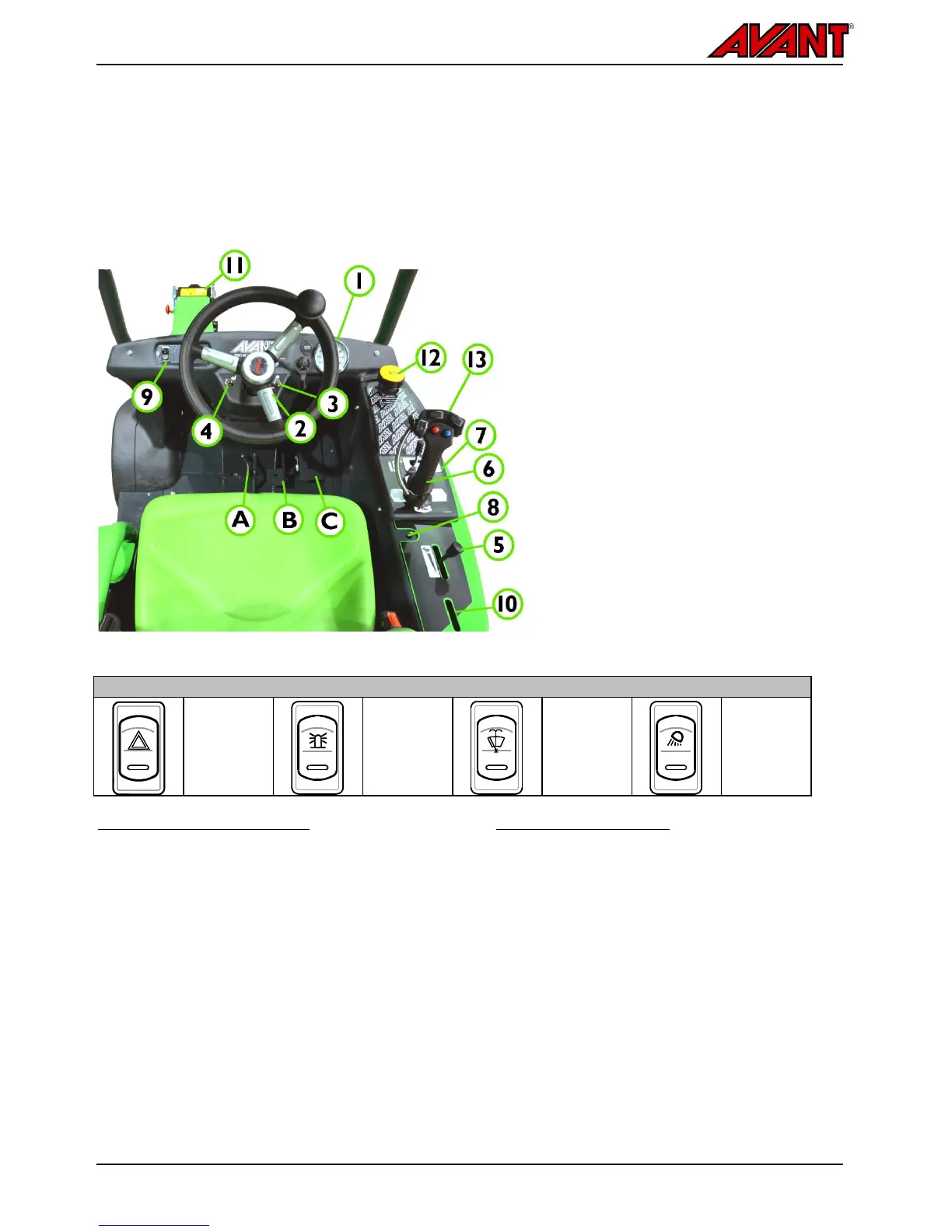

Following picture shows the location of operating controls. The location and function of controls may be slightly
different in different models, see following pages.
Reference
Page
1.
Multi-Function Display
Ignition switch
12 V outlet (max 15 A)
31
41
35
2.
Signal horn
3.
Work light switch
4.
Seat heater switch
36
5.
Hand throttle lever
33
6
Control lever of boom and bucket
32
7.
Auxiliary hydraulics control lever
32
8.
Choke knob (220 only)
41
9.
Switches, see table below
10.
Rear auxiliary hydraulics control
lever (optional extra)
35
11.
Multi connector for attachment
coupling
54
12.
Hydraulic oil filling and dipstick
64
13.
Attachment control switch pack
33
.
..
Switches on the panel
Emergency
blinker
(option)
Warning
beacon
(option)
Windscreen
wiper and
washer (CAB
L option)
Extra work
lights on the
ROPS frame,
2 front, 1 rear
(option)
Controls in the footwell
a Parking brake lever
b Drive pedal, left: drive backward
c Drive pedal, right: drive forward
See correct operation of the drive pedals on page
42.
Parking brake lever
The loader is equipped with mechanical parking
brake that locks the front wheels. When locking or
unlocking the brake, turn the steering wheel sharply
or press gently on the drive pedals, so that the
locking pins lock or unlock.

Lock: turn left and down into locking position.

Release: turn right and up to release parking
brake.
