AVANT 220 - Dashboard and Indicator Lights

Avant 220/225
31
.

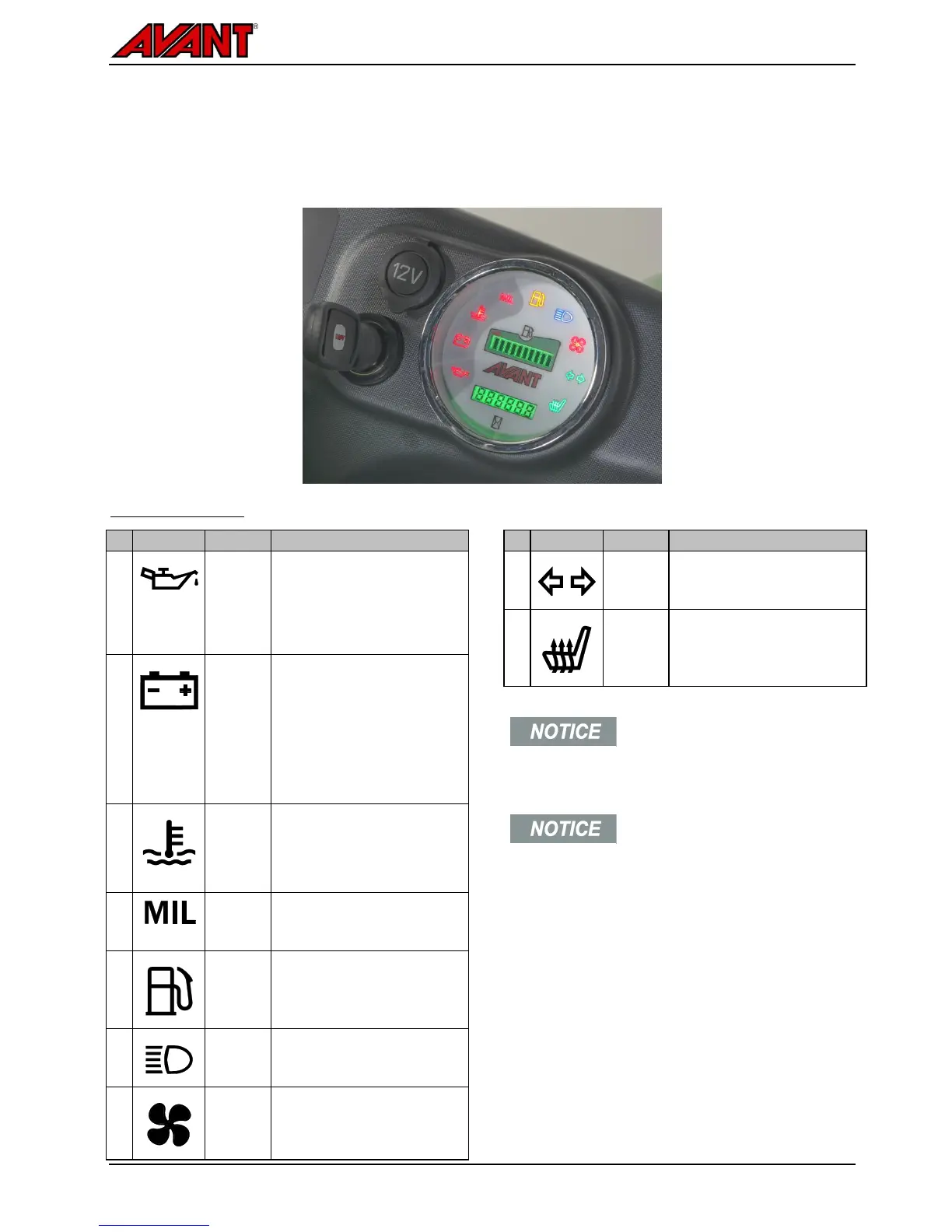

Dashboard
The multi-function display includes indicator related to features on the loader and the engine, a fuel level metre,
and an hour metre. The display is backlit whenever standard work lights or the road traffic lights are switched on.
The hour metre runs whenever the engine is running.
Indicator lights
Symbol
Colour
Remarks
1
Red
Low engine oil pressure
Stop engine immediately. Low
oil pressure can cause severe
engine damage. Check first if
low pressure is caused by low
engine oil level.
2
Red
Charge indicator
Battery discharging - limited
electric power supply of the
loader may not allow to use all
electric features simultaneously.
If indicator is lit, switch off
electric devices, or increase
engine RPM for higher charging
current.
3
Red
Temperature indicator
Not active on 200 series
loaders. If lit during operation,
light refers to too high hydraulic
oil temperature, allow to cool.
4
Red
MIL (225 only)
Engine Malfunction Indicator
Light, see page 72.
5
Yellow
Fuel level low
(not in use in 225LPG)
See page 46.
6
Blue
High beam headlights on
Road traffic light kit only
7
Red
Hydraulic oil cooler fan fuse
Hydraulic oil cooler malfunction.
See page 73
Symbol
Colour
Remarks
8
Green
Turn signal indicator
Road traffic light kit only
9
Green
Seat heater on
Suspension seat only
The charge indicator lamp may
remain lit after starting the engine.
After running the engine with higher
RPM, the light will turn off.
Engine oil pressure and charge
indicator lights should light up for a
brief moment when ignition key is
turned to ON position. If not, repair
before using the loader.
