Fuel system, gasoline 220/225

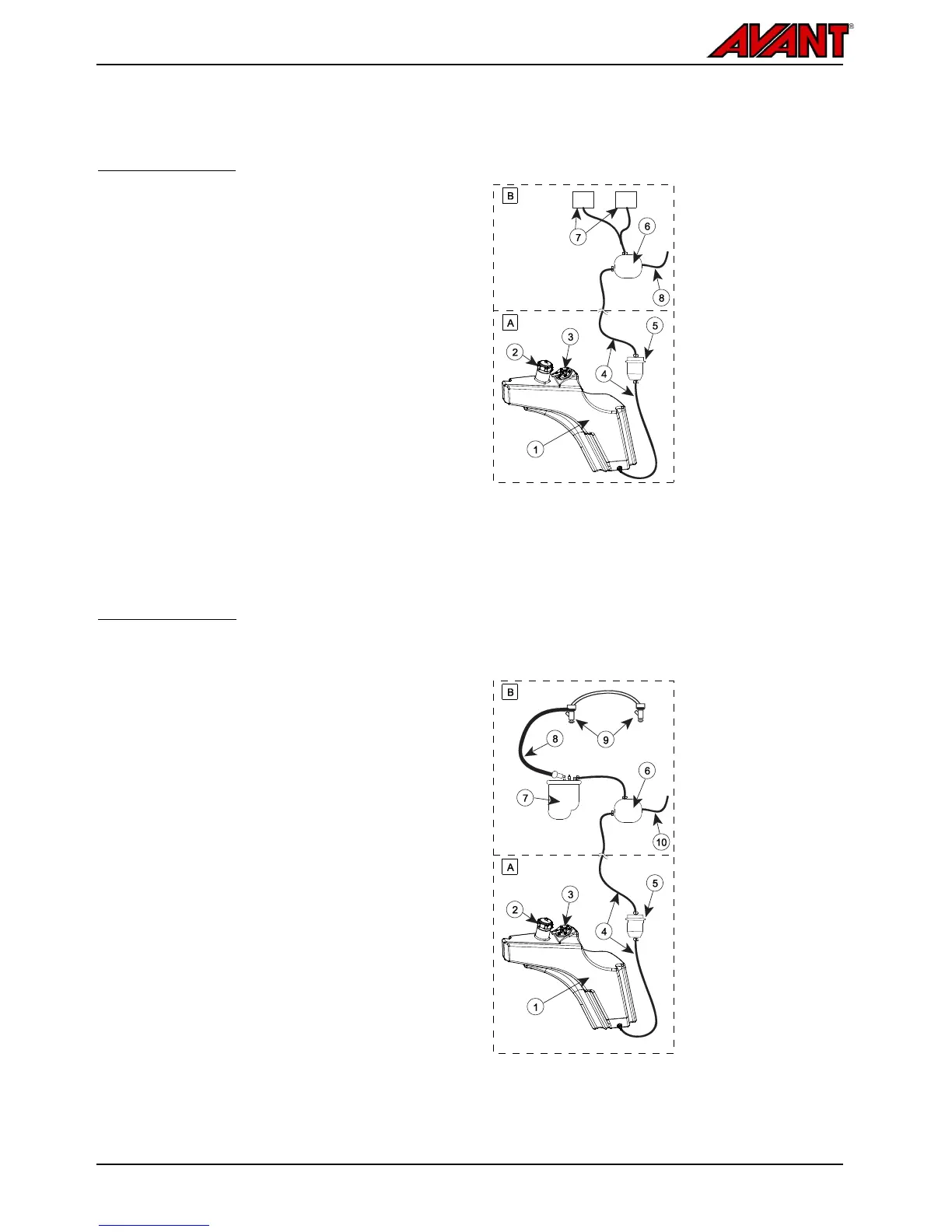

220 fuel system
A. Standard fuel tank
1.
Gasoline fuel tank
2.
Standard or lockable fuel cap with breather
3.
Fuel level sensor
4.
Fuel lines
5.
Fuel filter
B. Fuel supply to engine
6.
Pulse type fuel pump
7.
Carburettors
8.
Fuel pump hose
225 EFI System
EFI is an electronically-controlled fuel management system which is monitored by an Electronic Control Unit
(ECU). The system uses sensors to adjust fuel-air mixture for the best efficiency.
A. Standard fuel tank
1.
Gasoline fuel tank
2.
Standard or lockable fuel cap with breather
3.
Fuel level sensor
4.
Fuel lines
5.
Fuel filter
B. EFI fuel supply to engine
6.
Pulse type fuel pump
7.
EFI fuel pump
8.
High pressure fuel hose
9.
Gasoline fuel injectors
10.
Fuel pump hose
