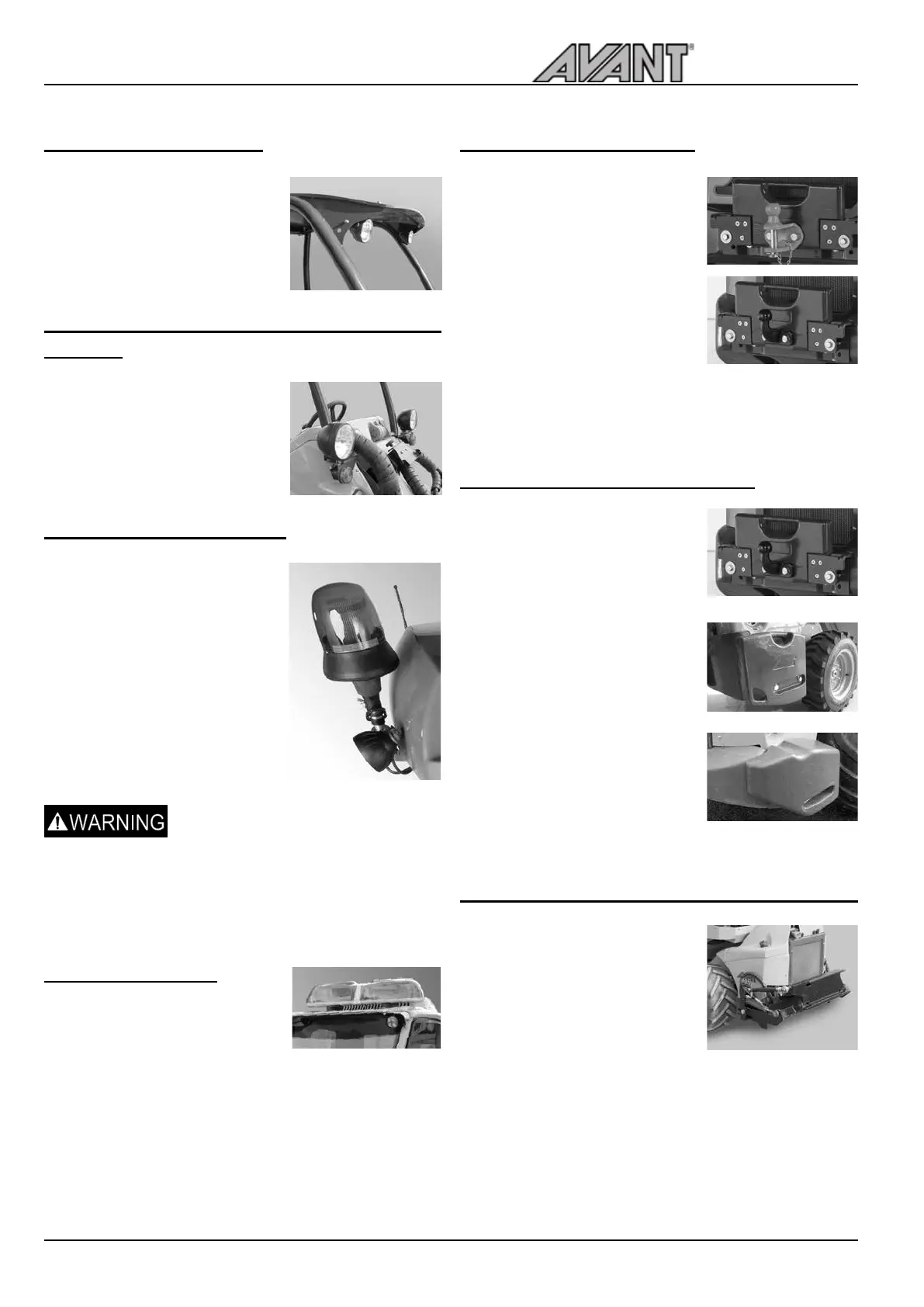

34
500 Series
Work light kit (option)
The loader can be equipped with
extra work lights, making it easier
to work in low light. The lights are
operated with the switch on the
control panel (see page 24).
Headlight, beacon, blinker & reflector kit
(option)
This optional equipment enables
road trafc registration in certain
countries. Requirements vary in
different countries, please consult
your local AVANT distributor.
Warning beacon (option)
The beacon can be removed
quickly by unturning its retaining
screw and then by pulling the
beacon out. Place the protective
seal on the beacon stand to prevent
water entering and damaging the
connectors. Handle beacon with
care. The beacon is sealed and
its inner components cannot be
replaced or repaired by user.
Risk of electric shock - do not
use or service a faulty beacon.
Beacon includes high-voltage
components. Do not use or repair
damaged beacon, replace with
new one.
Light bar (option)
Flashing lights on the light bar, only
available on DLX cab.
Trailer coupling (option)
The loader can be equipped, as
an option, with a trailer coupling.
There are two types available: a 2
in ball hitch and a 2 in ball hitch with
towing pin. Both can be mounted
either directly on the rear bumper
or on the extra back weight.
Max. allowed vertical load of the
trailer coupling is 1550 lbs, max.
towing load is 1350 lbs.
Make sure that the weight on the
trailer is distributed correctly so that the trailer cannot
cause an upward lifting force on the trailer coupling.
Extra counterweights (option)
The loader can be equipped with
extra counterweights that are
mounted on the rear bumper.
Max. amount of extra weights
(64 lb/pcs) is 3 pcs. If the machine
is tted with an extra weight with
trailer coupling, max. amount of
extra weights is 1 pcs. The loader
can also be equipped with an extra
side weight kit (176 lb or 396 lb)
which mounts behind the rear
wheels.
Hydraulic lifting device in the rear (option)
The hydraulic rear lifting device
allows mounting of some
attachments on the rear of the
machine, for example a sand
spreader or a rotary hoe. This
means that it is possible to use
a bucket or a dozer blade at the
same time in the front. Hydraulic rear lifting device includes
with a double acting auxiliary hydraulics outlet. Hydraulic
rear lifting device is optional equipment available for Avant
528 and 530.
Extra back weight 64 lb
Rear side weight (2x88 lb)
Rear side weight (2x198
lb)
Operating instructions
