Lifting
Lifting a loader with ROPS: When lifting a loader
equipped with the ROPS frame, use four lifting slings that
are approved for lifting purpose, and which are minimum
79 inches long. Loop the slings around the four ROPS
posts. Lifting kit A418706 includes all necessary parts and
detailed instructions to lift a loader with ROPS frame.
Make sure that the lifting slings cannot move and that the
loader doesn’t swing during lifting. Loop the lifting straps
around all four ROPS posts and make sure they are not
tied or get damaged by e.g. sharp corners.
Lifting a loader with cab LX/DLX: To lift a loader with
cab LX or DLX, four appropriate lifting eyelets must be
installed on the pre-threaded holes of the cab structure, on
the roof of the cab. Lift the loader using lifting chains and
hooks. Lifting kit A417352 includes all necessary parts and
detailed instructions to lift a loader with cab LX/DLX.
When lifting a loader that is equipped with the Cab L,
remove the window panels (front, side and rear window
panel) before lifting.
Risk of dropping of the loader -
Use appropriate equipment and
follow safety instructions and
safe practises when lifting the
loader.
• Remove heavy attachment and
possible extra weights from the
loader
• Lower the boom down
• Mount the frame lock on the
machine.
• Follow the instructions given in
the operator’s manual of the lifting
kits for each cab type.
• Never lift a loader with persons
riding the machine.
• Lift the loader as smoothly as
possible, and do not allow it to
drop or wobble.

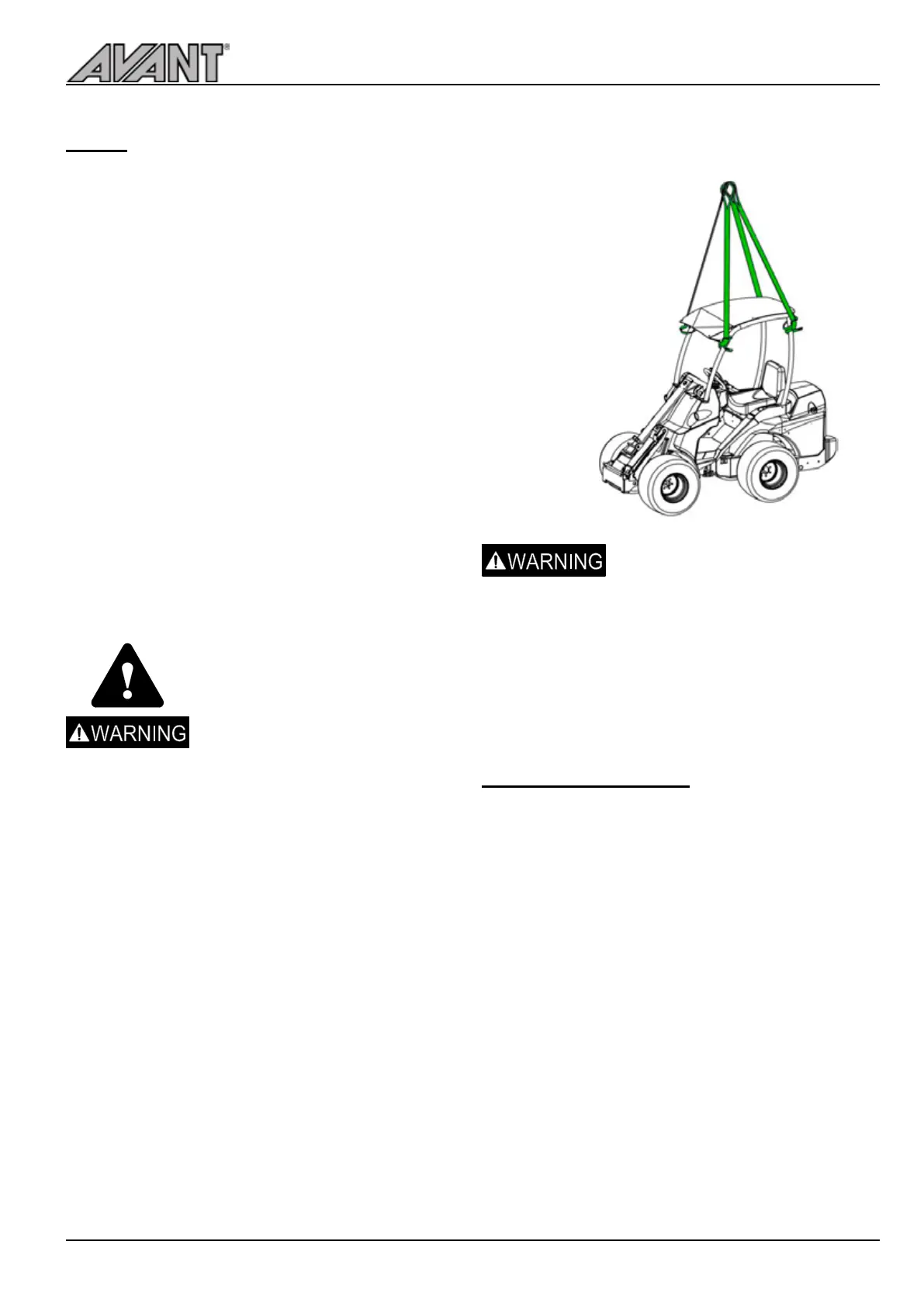

The following picture shows the principle of lifting a loader
with ROPS frame using four lifting straps.
Risk of dropping of loader -
Never attempt to lift the loader
from the counterweights or use
them as tie-down points. Eyelets
on extra side counterweights
are for installing or removing the
sideweight only. Remove eylets
from counterweights to prevent
their use.
Storage of the loader
Before long term storage, prepare the loader to ensure
long service life and trouble-free use of the loader.
• It is recommended to have the periodic service made
before storage. Contact Avant service.
• Clean the loader carefully
• Check and touch-up painted surfaces, if necessary, in
order to avoid rust damages
• Grease the greasing points and lubricate the piston
rods of the cylinders with oil
• Remove the battery from the loader and store it
in a cool, well-ventilated place. Charge the battery
monthly.
• Store the loader indoors if possible. Do not store the
loader in direct sunlight
• See the engine owner’s manual to prepare the engine
for long term storage
