Avantgarde UNO SD - Itron Version Connection and Power

CONNECTION – ITRON VERSION
BALANCED XLR CONNECTION
Line level connections feature balanced XLR connectors/terminals.
The pin assignment of these follows the EIA RS-297-A standard:
PIN 1 = GND, PIN 2 = HOT, PIN 3 = COLD. Never use cables with
differing pin assignment! This will deteriorate the sound quality and
can damage the amplif iers and/or the active power modules of the
subwoofers.
Connect the line level output of your preamplifier with the balanced
line level input of the ITRON amplif ier with an XLR cable.
Connect the balanced XLR daisy-chain output of the iTRON ampli‐
fier and the balanced XLR input of the DSP subwoofer amplif ier
with the XLR jumper cable. The jumper cable is included in the ac‐
cessory box.
Only now, connect the AC power of the components to a
household AC outlet and turn on the ITRON module and the
subwoofer DSP amplif ier.
+ 1.5
+ 3
+ 6
WARNING
ELECTRICAL SHOCK HAZARD
DO NOT OPEN!
110 – 240V ~ 50/60HZ
MAX POWER CONSUMPTION – 570W
POWER OUTPUT – 530W RMS
FUSE 2.5 A SLOW
0dB 0dB
– 1.5
– 3
– 6
TOTAL GAINDRIVER GAIN
MIDRESET HIGH IN
OUT
BALANCED INPUT
+ 1.5
– 1.5
+ 1.5
– 1.5
0dB
ENGAGED
FUSE
E FUSE
UNO G3 DUO G3
ITRON AMP
MADE IN GERMANY
SPEAKER TYPE
MODEL NO.
ORIGIN
SERIAL NO.
only to be used with marked speaker type
PUSH
+ 1.5
+ 3
+ 6
WARNING
ELECTRICAL SHOCK HAZARD
DO NOT OPEN!
110 – 240V ~ 50/60HZ
MAX POWER CONSUMPTION – 570W
POWER OUTPUT – 530W RMS
FUSE 2.5 A SLOW
0dB 0dB
– 1.5
– 3
– 6
TOTAL GAINDRIVER GAIN
MIDRESET HIGH IN
OUT
BALANCED INPUT
+ 1.5
– 1.5
+ 1.5
– 1.5
0dB
ENGAGED
FUSE
E FUSE
UNO G3 DUO G3
ITRON AMP
MADE IN GERMANY
SPEAKER TYPE
MODEL NO.
ORIGIN
SERIAL NO.
only to be used with marked speaker type
WARNING
ELECTRICAL SHOCK HAZARD
DO NOT OPEN!
110 – 240V ~ 50/60HZ
MAX POWER CONSUMPTION – 550W
POWER OUTPUT – 500W RMS
FUSE 4.0 A SLOW
CLIP
VOL
VOL
SIG
SERVICE USE ONLY
SPEAKER LEVEL INPUT
DSP
DSP PROGRAMMING
SERIAL NO.
BASSAMP-G3-500
MADE IN GERMANY
MODEL NO.
ORIGIN
SPEAKER TYPE
UNO SD DUO SD
only to be used with marked speaker type
SERVICE USE ONLY
FUSE
PUSH
18 19
SAFETYINSTALLATIONOPERATION SUBFINE TUNING
MISC
WARRANTY
OPERATION
SAFETYINSTALLATIONOPERATION SUBFINE TUNING
MISC
WARRANTY
OPERATION
PUSH
2 1
3
1
2
3
OPERATION OPERATION
1
2
3
4

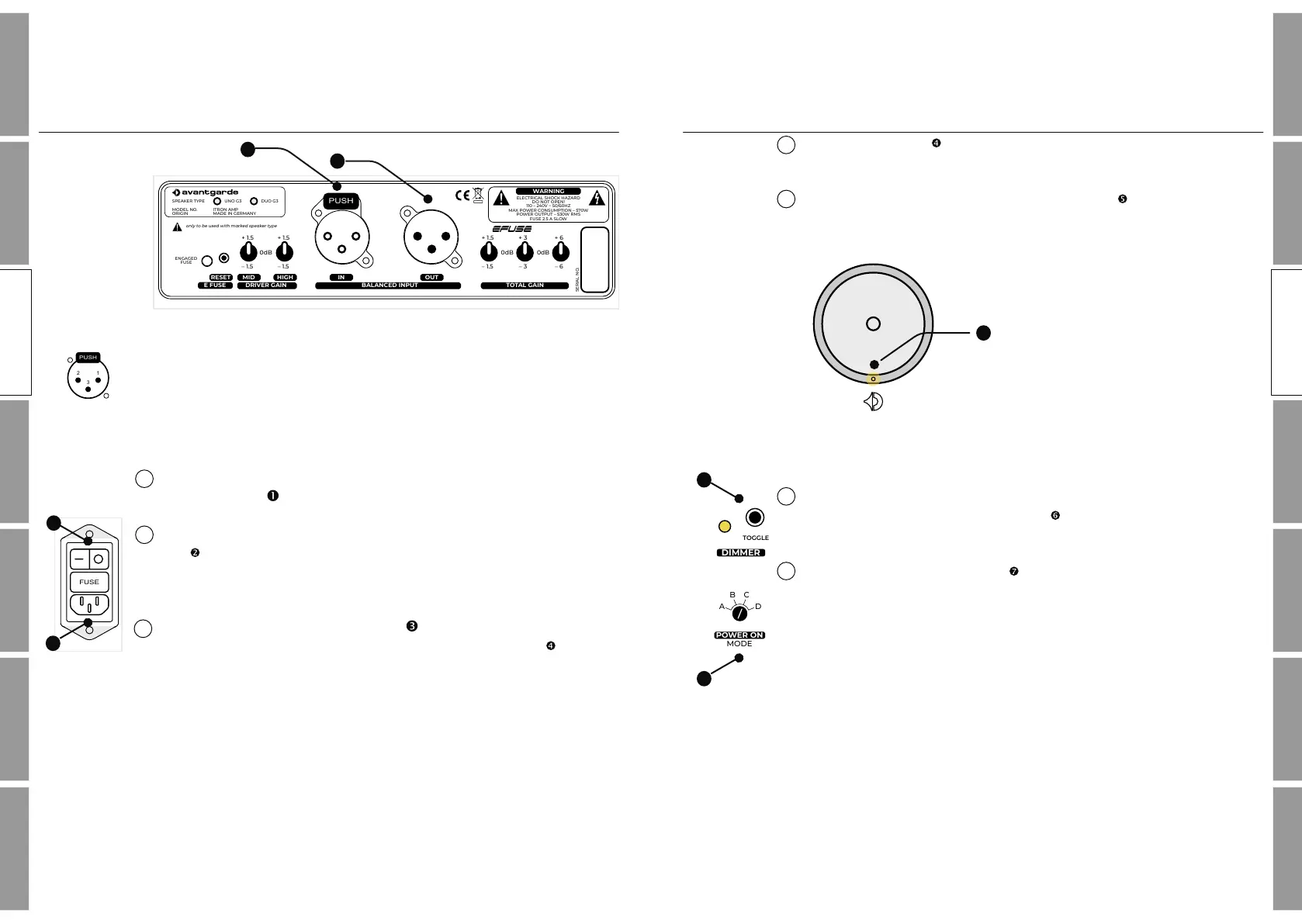

OPERATION – POWER SWITCH
ON/OFF
The power switch has an "O" OFF position and a "1" ON position.
Switch it to the ON position for operation.
The speaker has an illuminated push button on the f ront below
the tweeter to turn on the speaker.
ORANGE = Standby
WHITE = ON
PURPLE = OTA-Firmware Update (future upgrade)
The brightness of the light can be switched between 8 x intensities
using the DIMMER TOGGLE button of the DSP subwoofer ampli‐
fier.
The POWER-ON mode switch of the DSP subwoofer amplifier can
be used to select 4 different power on/off modes. See description of
the subwoofer DSP amplif ier.
1
2
3
4
7
5
6
POWER ON
MODE
A D
B C
TOGGLE
DIMMER
