CONNECTION – PASSIVE VERSION

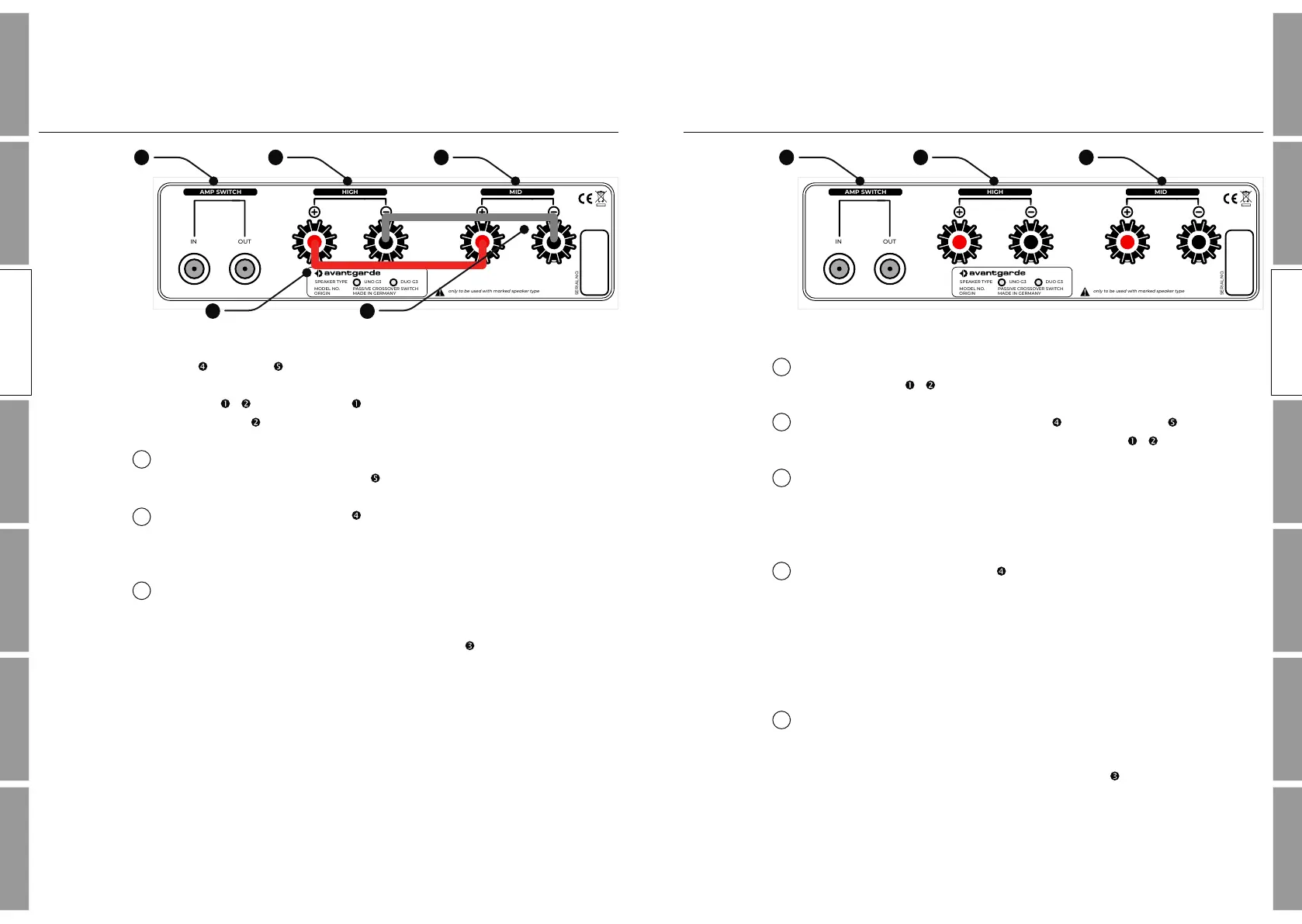

BI–WIRING
To operate the system in BI-Wiring or BI-Amping mode, the 2 x OFC
2-way bridges & must be removed.
Open the screw caps of the tweeter and midrange speaker ter‐
minals and remove the two OFC 2-way bridges & .
Connect the speaker output of your power amplif ier (or integrated
amplif ier) to the speaker terminals of the loudspeaker, using a sep‐
arate cable for each terminal. The same applies if you are using mul‐
tiple amplif iers for treble and midrange.
Connect the HIGH terminal of the speaker and the speaker input
terminals of the DSP subwoofer amplif ier with the jumper cable.
The jumper cable is included in the accessory box.
The jumper cables have hollow banana plugs which are open at the
rear. This way it is possible to stack multiple speaker cables to the
same speaker terminal.
Only now connect the components' power cords to a household
outlet and turn on the subwoofer and other equipment.
The inputs and outputs of the AMP SWITCH are exclusively avail‐
able on devices with ITRON amplif ier (incl. the AMP SWITCH cir‐
cuitry) and are used for remote switching between PASSIVE cross‐
over and ITRON amplif ier.
16 17
SAFETYINSTALLATIONOPERATION SUBFINE TUNING
MISC
WARRANTY
OPERATION
SAFETYINSTALLATIONOPERATION SUBFINE TUNING
MISC
WARRANTY
OPERATION
CONNECTION – PASSIVE VERSION
SINGLE–WIRING
High and mid have separate speaker terminals. In the standard
conf iguration these connectors interconnected with 2 x OFC 2-way
bridges & . One bridge interconnects all "+" terminals, the
other bridge interconnects all "-" terminals.
Connect the Speaker-Output of your power (or integrated) amplif ier
to the Speaker-MID connector of the speakers.
Connect the HIGH terminal of the speaker and the speaker input
terminals of the DSP subwoofer amplif ier with the jumper cable.
The jumper cable is included in the accessory box.
Only now connect the components' power cords to a household
outlet and turn on the subwoofer and other equipment.
The inputs and outputs of the AMP SWITCH are exclusively avail‐
able on devices with ITRON amplif ier (incl. the AMP SWITCH cir‐
cuitry) and are used for remote switching between PASSIVE cross‐
over and ITRON amplif ier.
