Avaya Scopia XT Meeting Center | Quick Setup Guide
Avaya Scopia XT Meeting Center | Quick Setup Guide

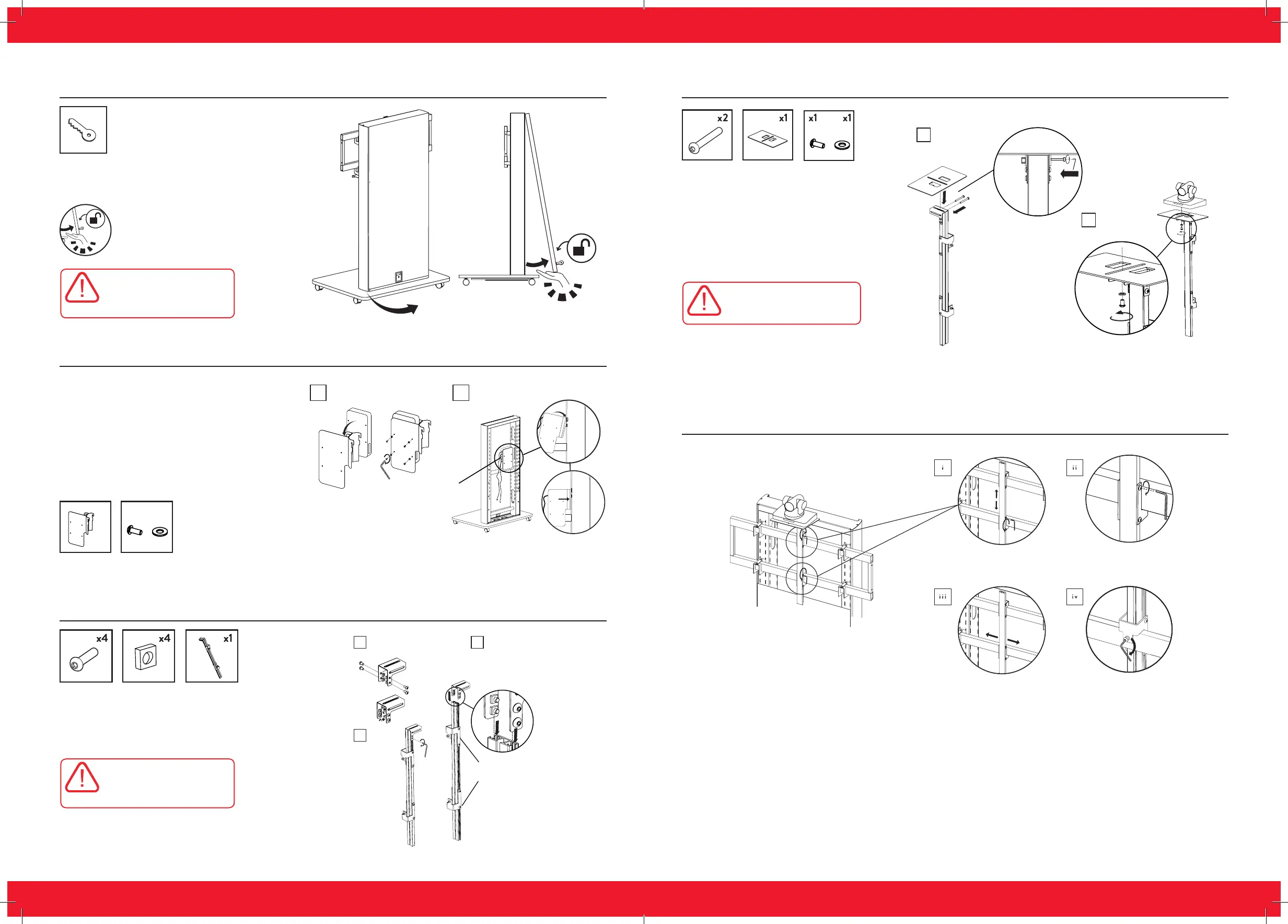

Step 5. Install the Codec Mount
1. Place the XT5000 Codec Unit with the
connectors facing to the right.
2. Connect all the required cables (see
the Installation Guide for Avaya Scopia
XT5000 for details).
3. Connect the microphone pod cable and
place it on the table, located 2m away from
the display screen (see the Installation
Guide for Avaya Scopia XT5000 for
details).
x1
x4 x4
i
Insert XT5000
Codec Unit into bracket
ii
Fit Codec Mount
on to inner column
Connections
should be visible
Extrusion
Brackets
i
Insert 4 bolts and loosely
fix with 4 square nuts
ii
Slide assembled Camera
Mount Arm
Locate square nuts
into the channels
iii
Tighten
4 bolts
Step 6. Assemble the Camera Mount Arm
Step 7. Install the Camera Mount Platform and Mount Camera
i
Install Camera
Mount Platform
ii
Mount Camera
to Platform
Step 8. Install Completed Camera Mount Assembly by Placing on the Screen Mount
Tighten all 8 bolts to
secure camera assembly
in vertical position
Loosen all 8 bolts from
step 3 to adjust vertical
position
Tighten both grub
screws to secure
Slide camera mount
assembly to desired
horizontal position
Step 4. Remove the Back Panel
x1
IMPORTANT NOTE:
Remember to support the
back panel when unlocking
to prevent it falling.
IMPORTANT NOTE:
Ensure the arm faces the
opposite direction to the
mounting extrusion brackets.
IMPORTANT NOTE:
Tighten M5 bolts once camera
Has been mounted as required.
The above symbol is meant
to represent snapping the
component into place.
