AVE AF997 - Page 5

AF53900 SIREN
26 25 24 23 22 21
INDOOR
AUXILIARY SIREN
TAMPER
Anti-removal magnetic contact
cod. AF901
ACOUSTIC HORN CONNECTION TERMINAL
ACOUSTIC HORN CONNECTION TERMINAL
FLASH LIGHT CONNECTING TERMINAL
FLASH LIGHT CONNECTING TERMINAL
+ POWER SUPPLY
– POWER SUPPLY
TAMPER MICROSWITCH
TAMPER MICROSWITCH
N.C. SIREN CONTROL TO POSITIVE
N.C. FLASH CONTROL TO POSITIVE
FLASH FILAMENT BLOWN SIGNAL TO GND
Note 1: For connections at a distance of
more than 30 cm. use screened cable (screen
earth connected to the control panel).
Note 2: By connecting as indicated the
output contact (NC) of a technical alarm
detector, having removed Jp 1, an alarm
activates the corresponding output (terminal
15) which activates the telephone dialler
(channel 1) (see page 21)
1
2
3
4
5
678
9
0
F
#
12345678910 11 12
TO TELEPHONE SOCKET
TO THE TELEPHONE
TO TAMPER LINE
LINE
13
b
14
a
15

16
a
17
b
TEL.
R47k
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
PRE-ALARM
INDICATOR
Ref. No.
45381
1 +
2 –
3 T
2 +
1 –
COD. AF45399
AF45360
Detector NC contacts
Example of standard
detector connection.
This connection is possible
also on zones zones A1, A2.
A3, C1, C2

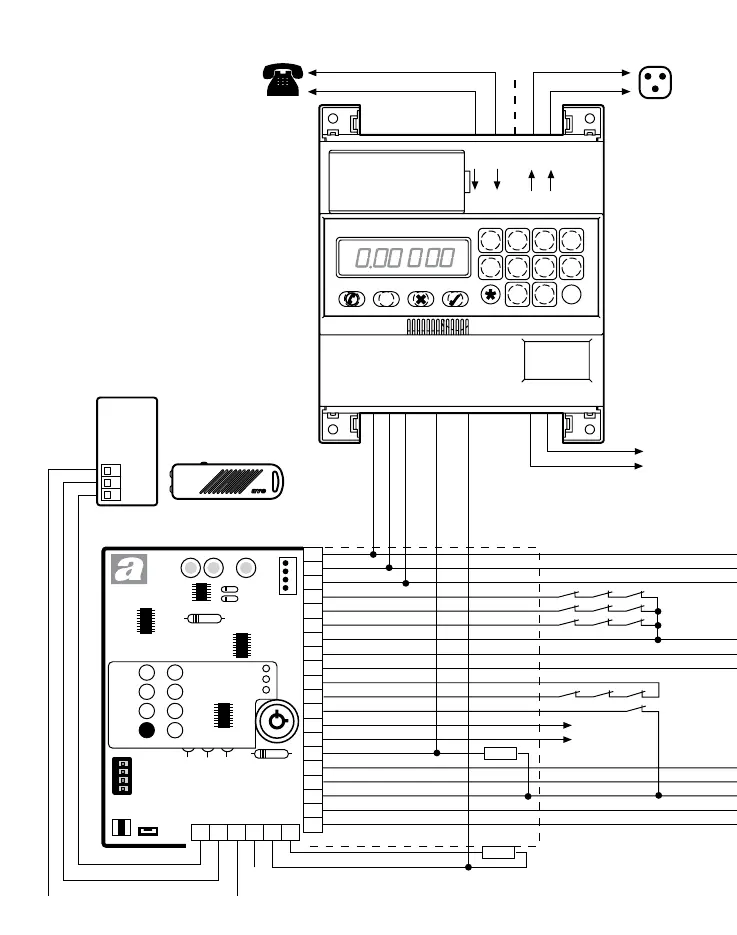

Wiring
Diagram
N
S
1
–
2
+
3 4 5
N.C.
6
TC
BLOCCO RELÈ
RELAY OUT
12V —
(10,5…14)
––
1
–
2
+
3 4 5
N.C.
6
TC
BLOCCO RELÈ
RELAY OUT
12V —
(10,5…14)
––
COD.
AF45342
1
2
3
AF45339
R
Detector NC
contacts
R
Technical alarms detector
optional NC contact
TAMPER
AF45360
- 1b -
