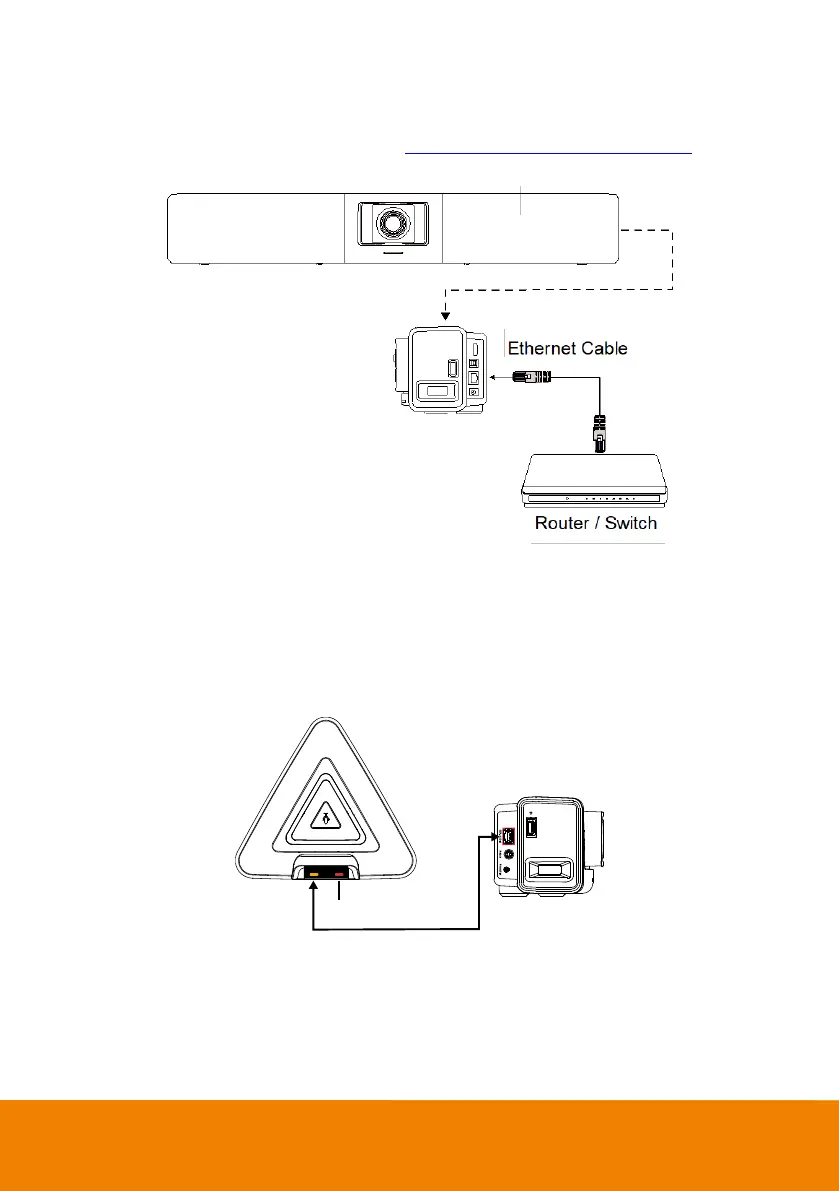

Ethernet Connection
VB342 Pro supports ethernet connection which allows user to access VB342 Pro from remote site
through browser. Web accessing please refer to “Make a Connection through the Browser”.
Expansion Microphone Installation (Optional)
Users can purchase the expansion microphone from AVer.
The expansion microphone can expand the sound received and controlled of audio, mute and unmute.
[Note] Cable is included with optional expansion microphone. There are two lengths of cables - 10m
and 20m.
1. The port won’t be used while using with AVer video bar, such as VB342 Pro and VB350. It doesn’t
support daisy chain connection.
2. Connect the provided RJ45 cable to MIC Out and connect the other side of RJ45 cable to side of
video bar.
