AVer VB342 Pro User Manual

45

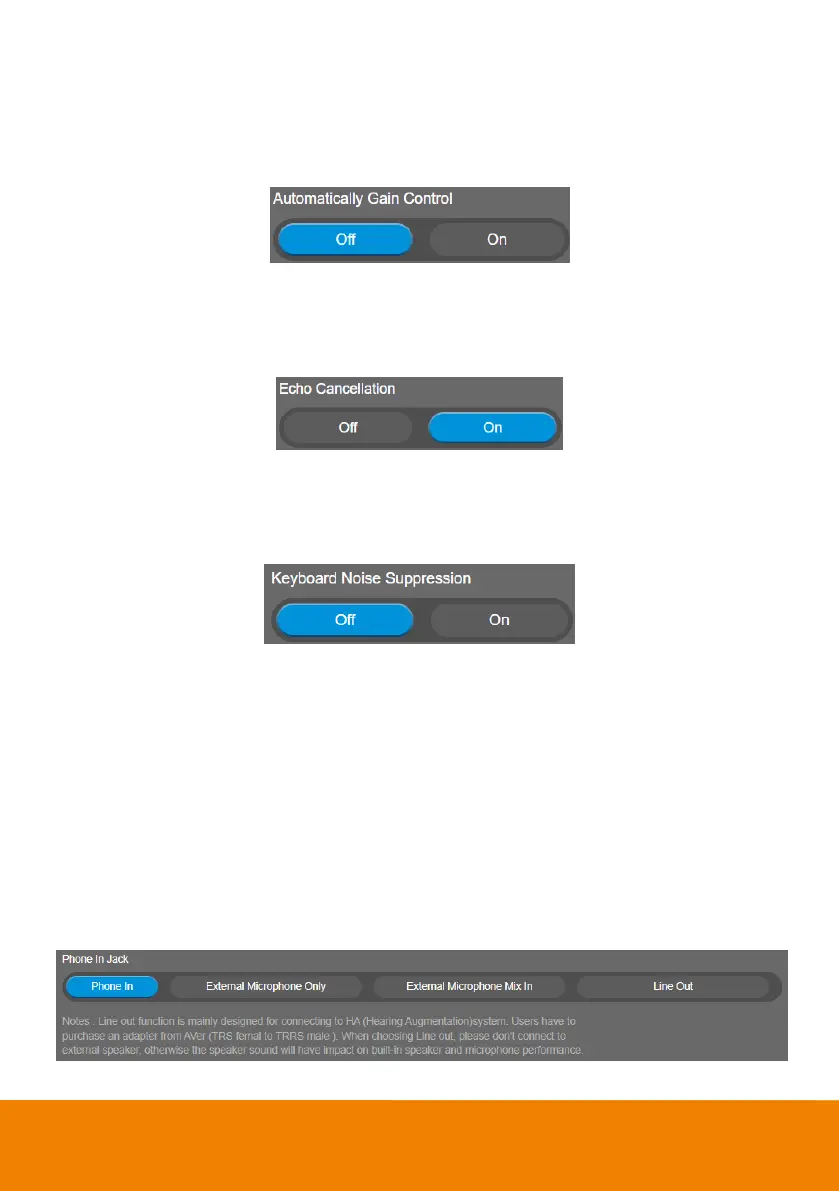

Automatically Gain Control
Enable/disable the auto gain control. It is to control ambient sound level and maintain a suitable output,
despite variation of the one at the input.
Select Audio > Automatically Gain Control > Off or On.
Echo Cancellation
Enable/disable echo situation.
Select Audio > Echo Cancellation > Off or On.
Keyboard Noise Suppression
Enable/disable keyboard noise reduction.
Select Audio > Keyboard Noise Suppression > Off or On.
Phone In Jack
The camera provides a Phone In Jack on the left-side panel. Users can also configure the Phone In
Jack to support 3.5mm audio input, Line Out or hybrid audio input for both Line In and 3.5mm audio
input.
[Note]
1. Line Out function is mainly designed for connecting to HA system. Users have to purchase an
audio-out adapter from AVer (TRS female to TRRS male).
2. If Line Out is selected, please don’t connect to external speaker, otherwise the speaker sound will
have impact on built-in speaker and microphone performance.
Select Audio > Phone In Jack > Phone In, External Microphone Only, External Microphone Mix In
or Line Out.

AVer VB342 Pro Specifications

General

Pan range	0 - 180 °
Product type	Group video conferencing system
Product color	Black
Tracking modes	Presenter mode
Wall mountable	Yes
Tilt angle range	0 - 105 °
Number of persons	- person(s)
Cable lock slot type	Kensington
Sound pressure level (max)	96 dB
Megapixel	- MP
Sensor type	-
Aspect ratio	4:3, 16:9
Optical zoom	3 x
PTZ protocols	Pelco-P/D, UVC, VISCA
White balance	Auto, Manual
Image sensor size	- \
Diagonal field of view	92 °
Vertical field of view	53 °
Horizontal field of view	84 °
Number of camera presets	10
Remote control interface	IR Wireless
Closest focusing distance	0.8 m
Optical zoom (super-wide mode)	15 x
Processor model	i5-4460
Processor family	Intel® Core™ i5
Applications supported	Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
Windows operating systems supported	Windows 10, Windows 11, Windows 7
Maximum frame rate	60 fps
Video formats supported	H.264, H.265, M-JPEG, YUV, YUY2
Maximum video resolution	3840 x 2160 pixels
Resolution at capture speed	3840x2160@30fps
Supported graphics resolutions	480 x 360, 640 x 360, 640 x 480 (VGA), 800 x 448, 800 x 600 (SVGA), 848 x 480, 960 x 540, 1280 x 720 (HD 720), 1280 x 960, 1600 x 900, 1920 x 1080 (HD 1080), 3840 x 2160
Speaker power	6 W
RMS rated power	12 W
Number of speakers	2
Microphone pick-up range	8 m
AC input voltage	100 - 240 V
DC output current	5 A
DC output voltage	12 V
Power source type	AC
AC input frequency	50 - 60 Hz
Minimum RAM	4000 MB
Minimum processor	Intel® Core i5-4460
Minimum processor speed	3.2 GHz
Storage temperature (T-T)	20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, USB Type-A to USB Type-B, USB Type-A to USB Type-C
Power cable length	3 m
RS-232 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mounting type	Stand/Wall mounting
LED indicators	Status
Warranty period	3 year(s)

Weight and Dimensions

Depth	116 mm
Width	738 mm
Height	127 mm
Camera weight	3100 g
Package depth	197 mm
Package width	872 mm
Package height	260 mm
Package weight	6300 g
Remote control weight	50 g
Camera dimensions (WxDxH)	738 x 127 x 116 mm
Remote control dimensions (W x H x D)	149.72 x 42.3 x 19.3 mm
