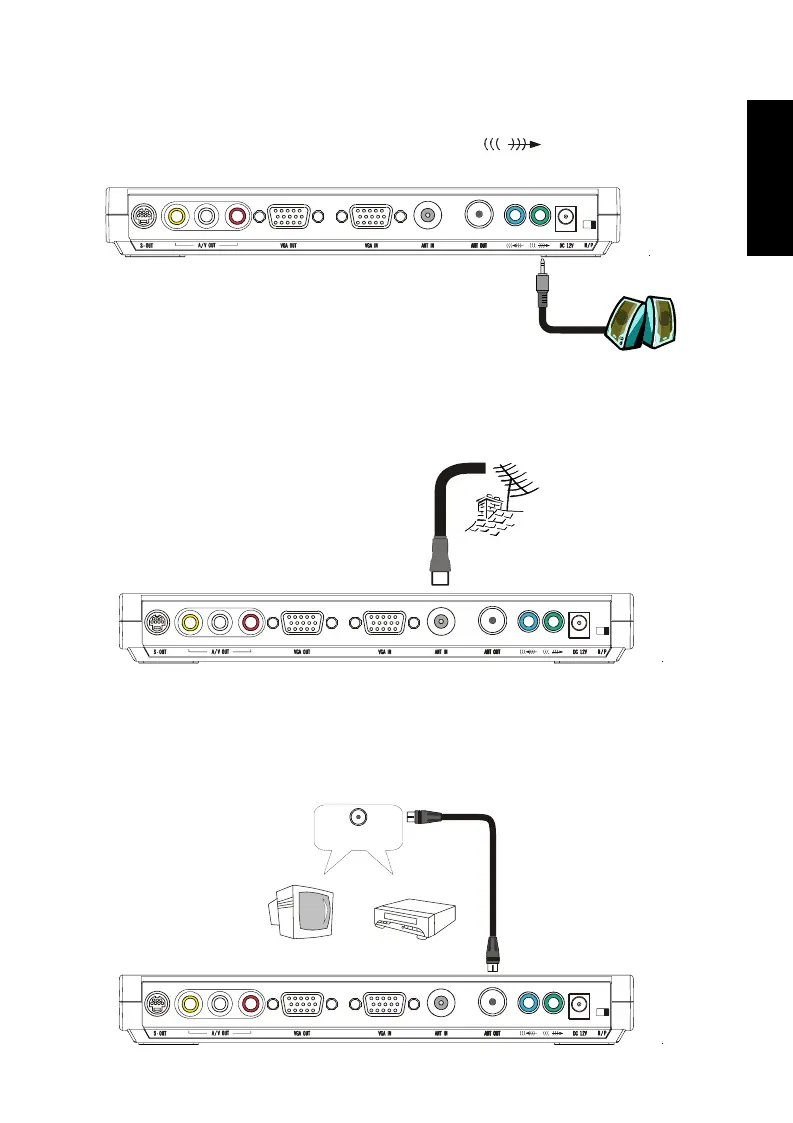

2.3.5 Connecting the External Speaker
Connect the external speakers to the jack marked as .
Speaker
2.3.6 Connecting the VHF/UHF Antenna
Attach the aerial or indoor VHF/UHF TV antenna to the ANT. IN port.
TV Antenna
() 75 Ω
2.3.7 Connecting the TV Set or VCR
For receiving analog signal, you can connect TV antenna cable to the product’s
ANT. IN port and also connect your cable between the product’s ANT. OUT and
your TV Antenna In or VCR RF In.
RF Cable
VCR
ANT. I n / RF In
Te l e v i s i o n
(Not supplied)
