Appendix A: Specifications 33

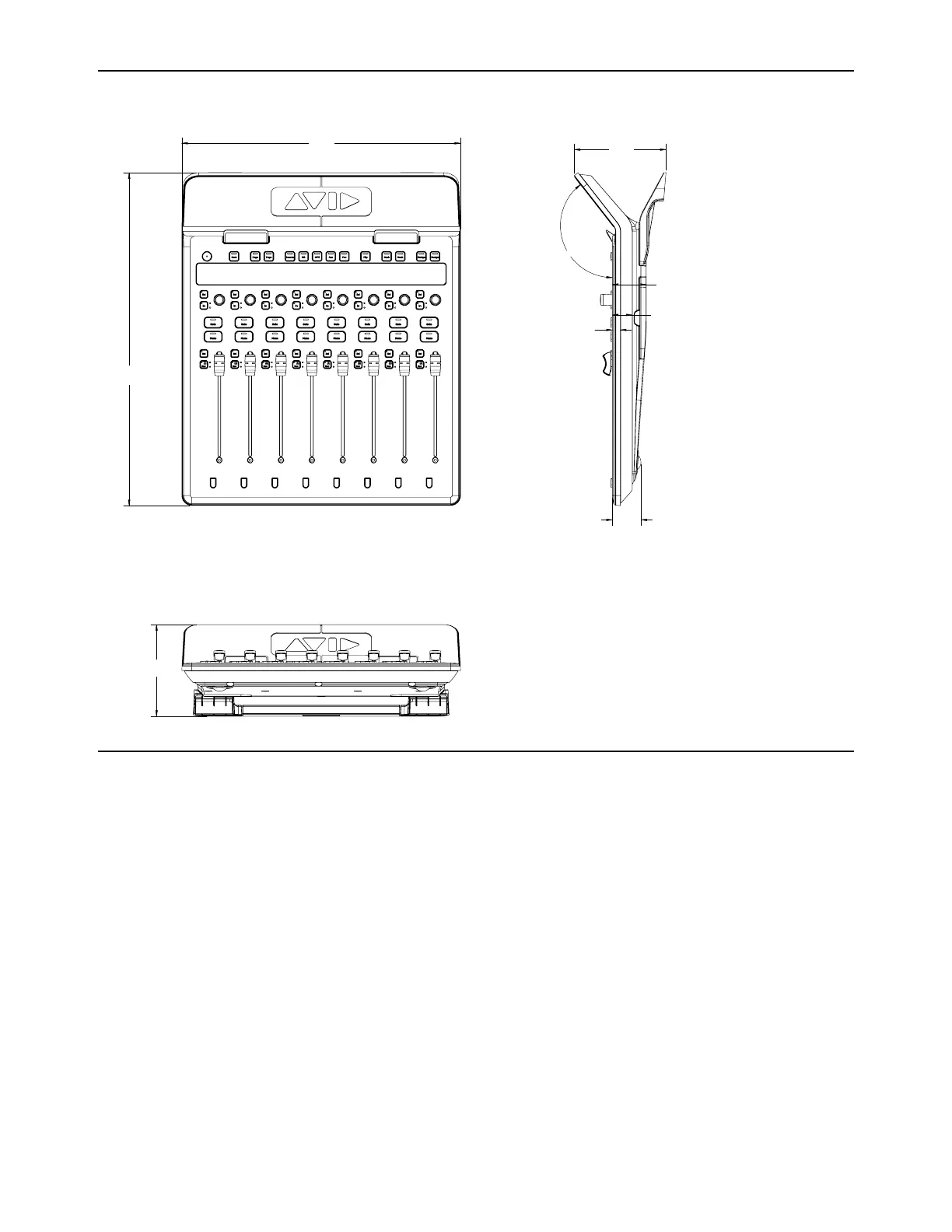

Dimensions
Test Mode
The Avid S1 has a self-test mode that lets you test the fader, LEDs and knob touch-sensitivity. This self-test mode is similar to
“Vegas Mode” on other control surfaces.
To enable Test Mode on the S1:
1 Power the S1 off.
2 Press and hold down < Bank + Bank > + Nudge > simultaneously while powering the S1 back on.
On the S1, all LEDs light and cycle through their color range.
• Press any switch and you will see all LEDs change to the Yellow/White range.
• Test the touch-sensitivity of the knobs. Tapping a knob will switch the LEDs to the Yellow/White color range.
• Rotate the top-left knob to change the speed of the fader cycle.
• Touching the fader will cause it to stop cycling.
Note that not every LED will light up with certain colors.
[12.4]
316.1
[14.9]
377.4
[4.1]
103.9
142°
[1.5]
38.5
[.9]
22.5
[.4]
9.0
[1.3]
32.5
[4.1]
103.9
