S1 Surface Controls Overview 25
Channel Strip Displays
At the top of each channel strip is an OLED (organic light emitting diode) display. Each display shows track information as follows:
1 – Meter
Shows clip, peak, and normal values. It can show mono, stereo, or surround tracks.
2 – Track Name
Shows the track name as it appears in the application. When a fader is touched, it shows the value of the fader. Af-
ter releasing the fader it reverts to showing the track name.
3 – Track Number
Shows the track number relative to its position in the application.
4 – Parameter Name
Shows the name of the parameter currently assigned to the corresponding Channel Encoder. When an en-
coder is touched, it shows the value of the parameter. After releasing the encoder it reverts to showing the parameter name.
5 – Encoder Position
Shows the relative setting of the control for the currently assigned parameter.
6 – Automation Mode
Shows the track’s current automation mode setting, as follows:
Not all applications support all the modes listed above.
7 – Attention Indicator
Indicates that the corresponding track is the attentioned track. Any parameters adjusted using the Channel
Encoders apply to the attentioned track.
Display Sleep
To preserve display life, the channel displays enter sleep mode when not in use. This can be set in EuControl Settings (see the Using
EuControl Surfaces.pdf for information on
OLED Screen Saver Time).

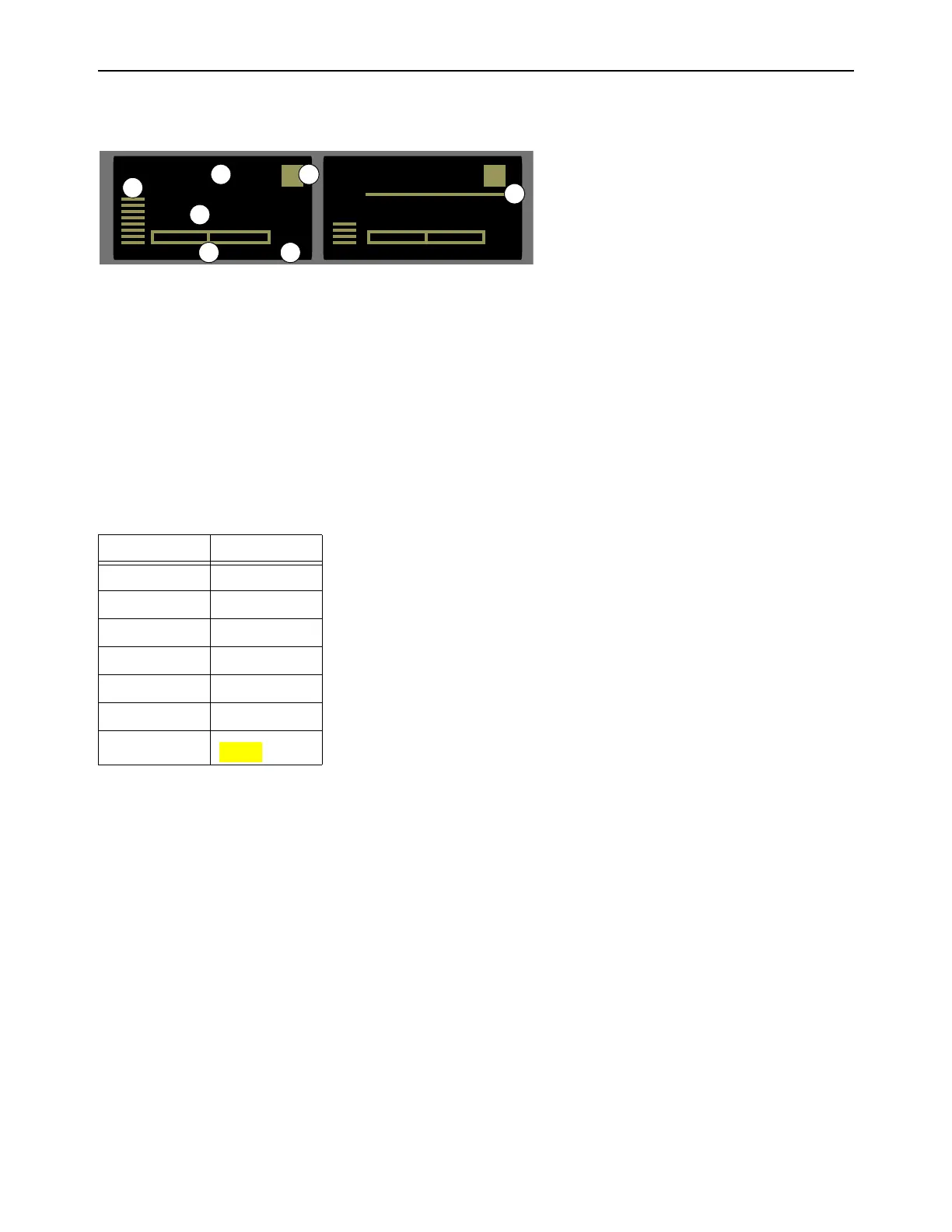

Channel strip display in Normal Mode
Automation Modes and Displayed Indication
Mode Display
Off (blank)
Read r
Touch t
Latch l
Touch-Latch tl
Write W
Trim
