Avid Technology S6L Control Surface Installing

S6L Control Surface RAM Expansion 4
3 Using a 2.5mm Hex driver, remove the fasteners that secure the back edge of the back cover to the S6L chassis and set the screws
aside.
• S6L-24C uses 8 fasteners
• S6L-16C uses 6 fasteners
4 After removing the fasteners try sliding the back cover off the chassis by pushing it down with your hands and simultaneously
pulling the cover away from the chassis.
5 Slide the panel away from the control surface and set the panel aside.

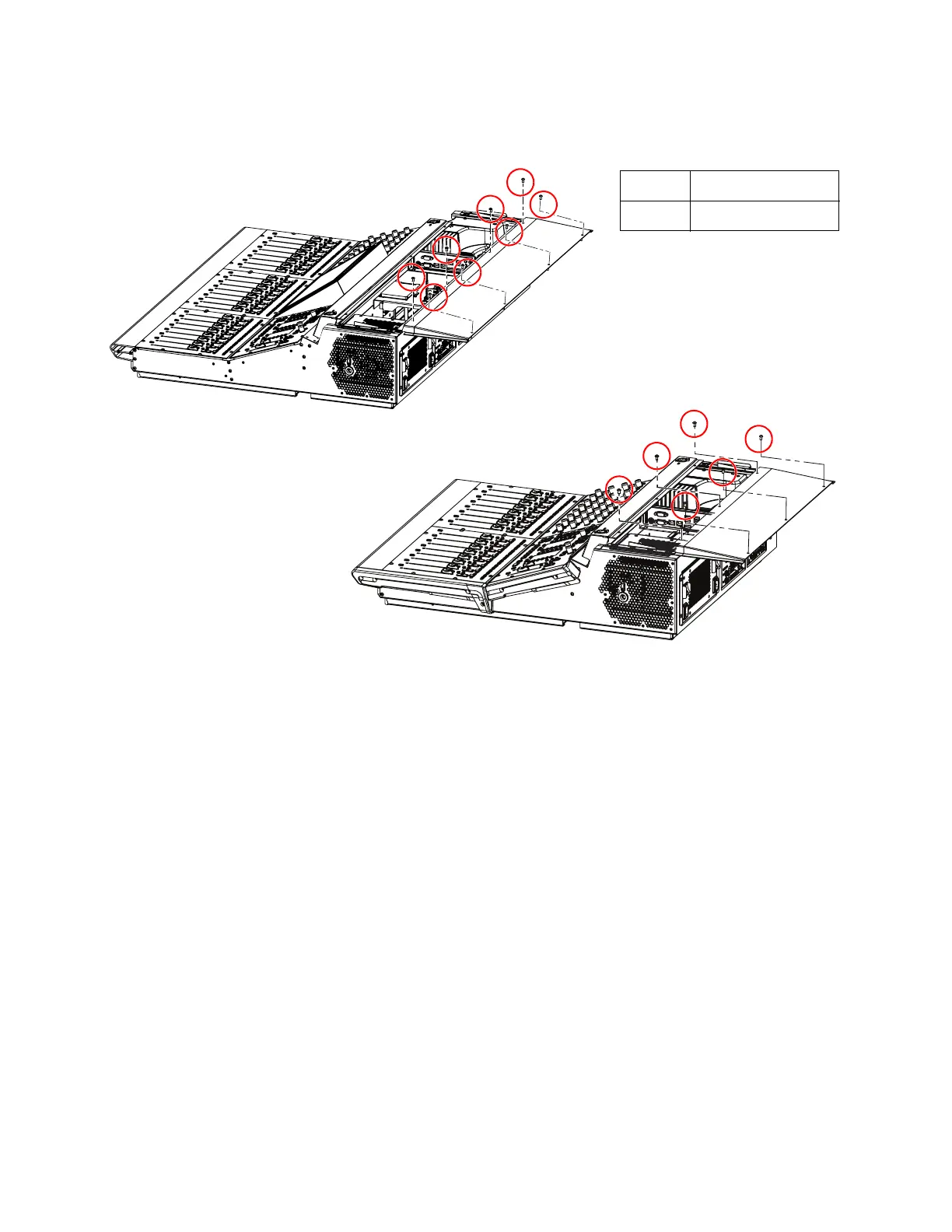

Figure 5. Back Cover fasteners on S6L-24C (above) and S6L-16C (below)
Fasteners:
Tool:
M4x8mm BHCS
2.5mm Hex driver
