Step 4. Remove the electronic canister cover by unscrewing (2) mounting screws.
(Appendix B: Procedure to Remove Electronics Cover and Electronic Canister)
Step 5. If necessary cut remote cable to required length, making sure to cut end opposite
female connector. Wire the positioner sensor back to the positioner using the cable
provided and replace cover. (See Figure 3-8).

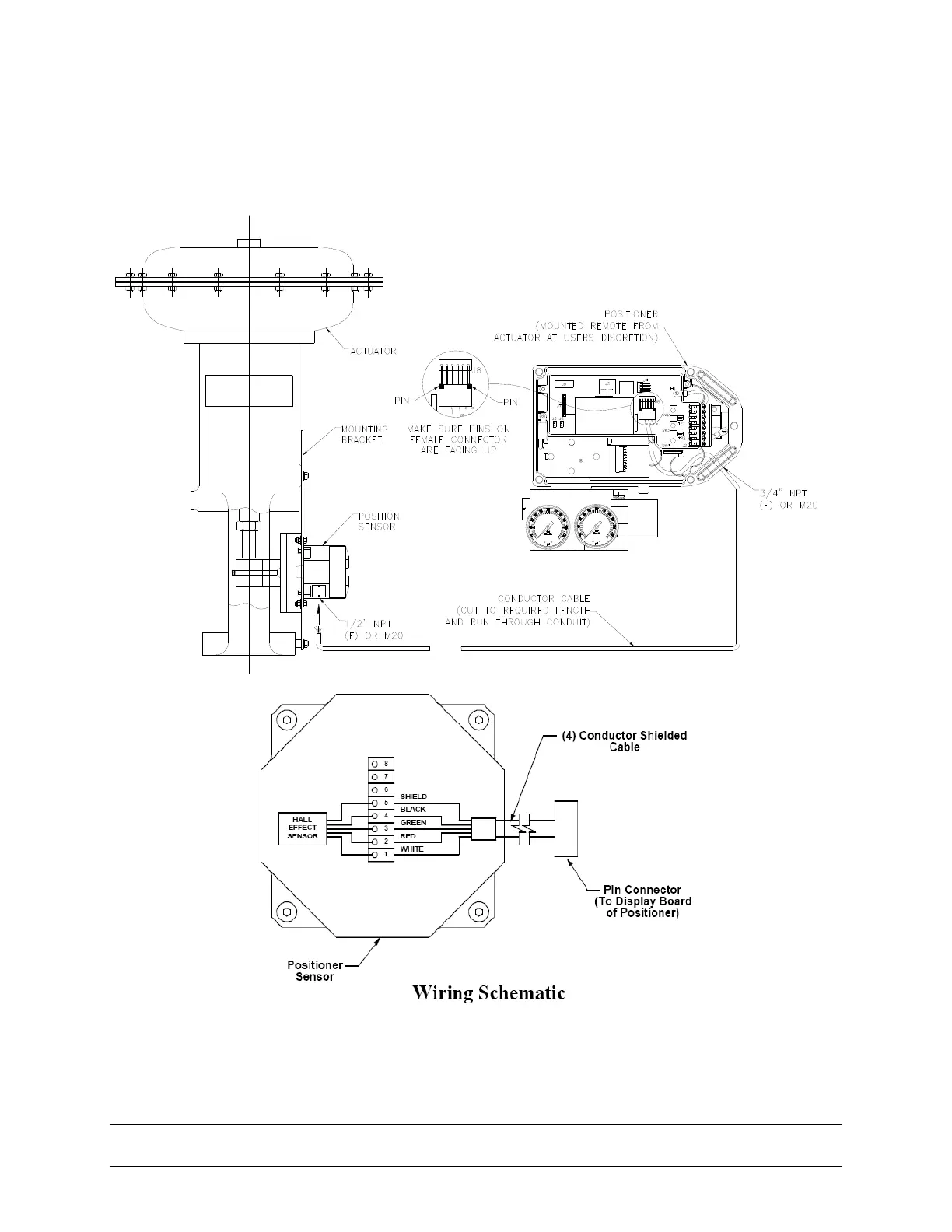

Figure 3-8
