3 Initial Setup
3.1 Mounting Positioner on a Rotary Actuator

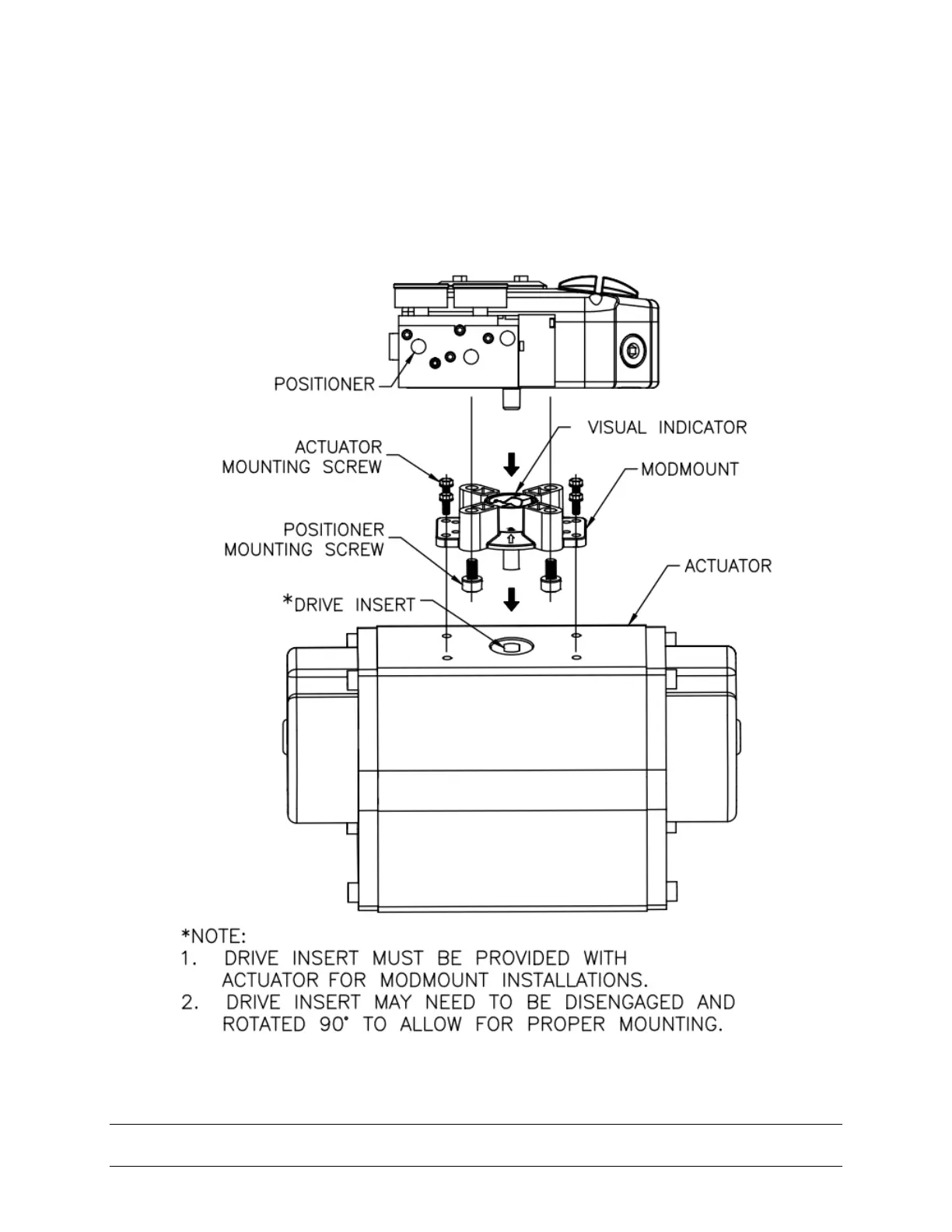

Step 1. Figure 1 shows typical direct mounting of positioner to an actuator. Mount the
modmount bracket to positioner using positioner mounting screws.
Figure 3-1
