11
EN
C - INSTALLATION
COLOUR VIDEO INTERCOM 7"
The cable's length determines which cable section is to be used:
Cable length Section to use
0 to 50 m 0.75 mm2
50 m to 100 m 1.5 mm2
Between the intercom panel and an electric strike plate (not included)
Use a 12V/1.1A maximum electric latch with or without mechanical memory.
For the connection between the intercom panel and the door release, use a cable of this kind:
Cable length Section to use
0 to 50 m 0.75 mm2
Between the intercom panel and the automated gate (not included)
Section to use: Min. 0.75 mm2

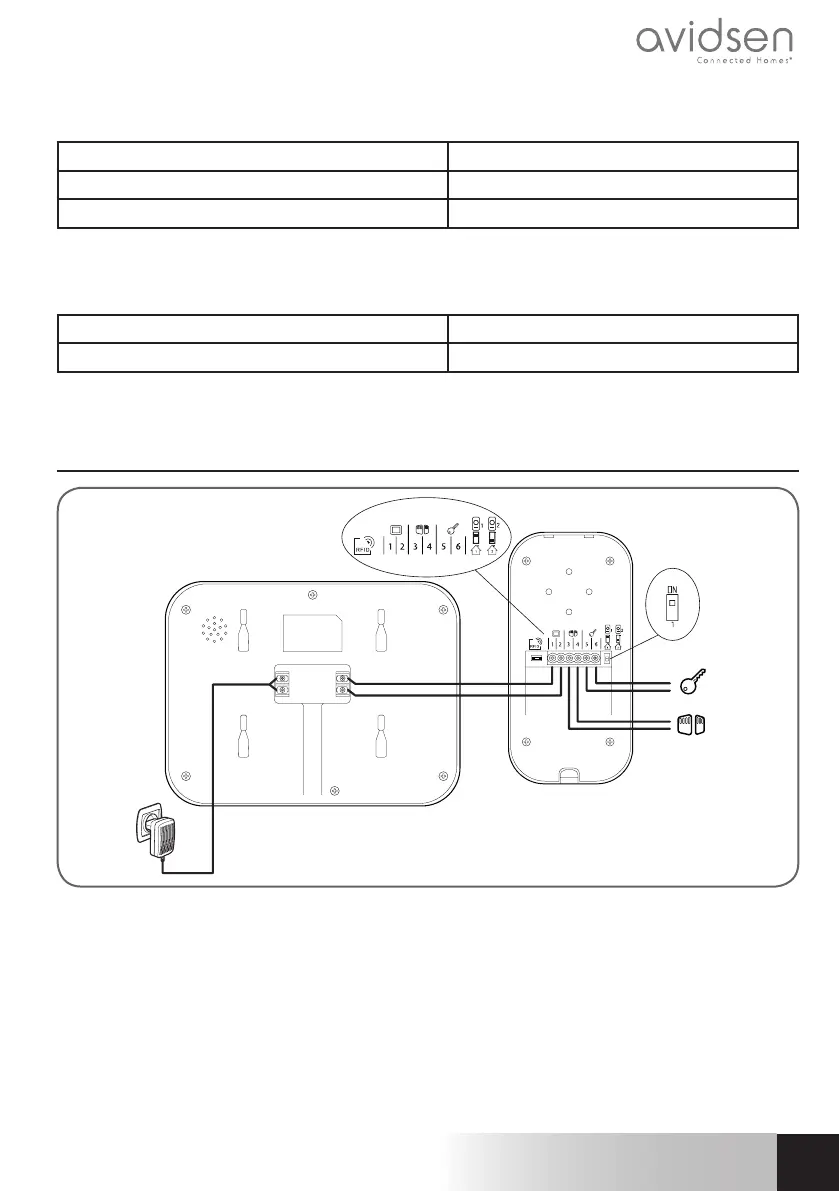

3.1 - CONNECTION BETWEEN THE MONITOR AND THE INTERCOM PANEL
+
-
1
2
Monitor
Intercom panel
IMPORTANT: connect terminals 3 and 4 directly to the opening/closing contact of the automatic control
system (automated entryway wired control system input).
