14
EN
C - INSTALLATION
COLOUR VIDEO INTERCOM 7"
1
2
+
-
1
2
+
-
1
2
Monitor
Monitor
ref 112279
Intercom panel
2 families
112276
Intercom panel
ref. 112273
Intercom panel
ref. 112273
Monitor
ref 112279
Monitor
ref 112271-112272
IMPORTANT: if you have trouble opening the lock, which may be caused by a large distance between the
screen and the intercom panel, for example, we recommend that you connect it to a separate power supply.
If you use a separate power supply, you must connect a 12 V relay (not supplied) to control it from the video
intercom, as illustrated.

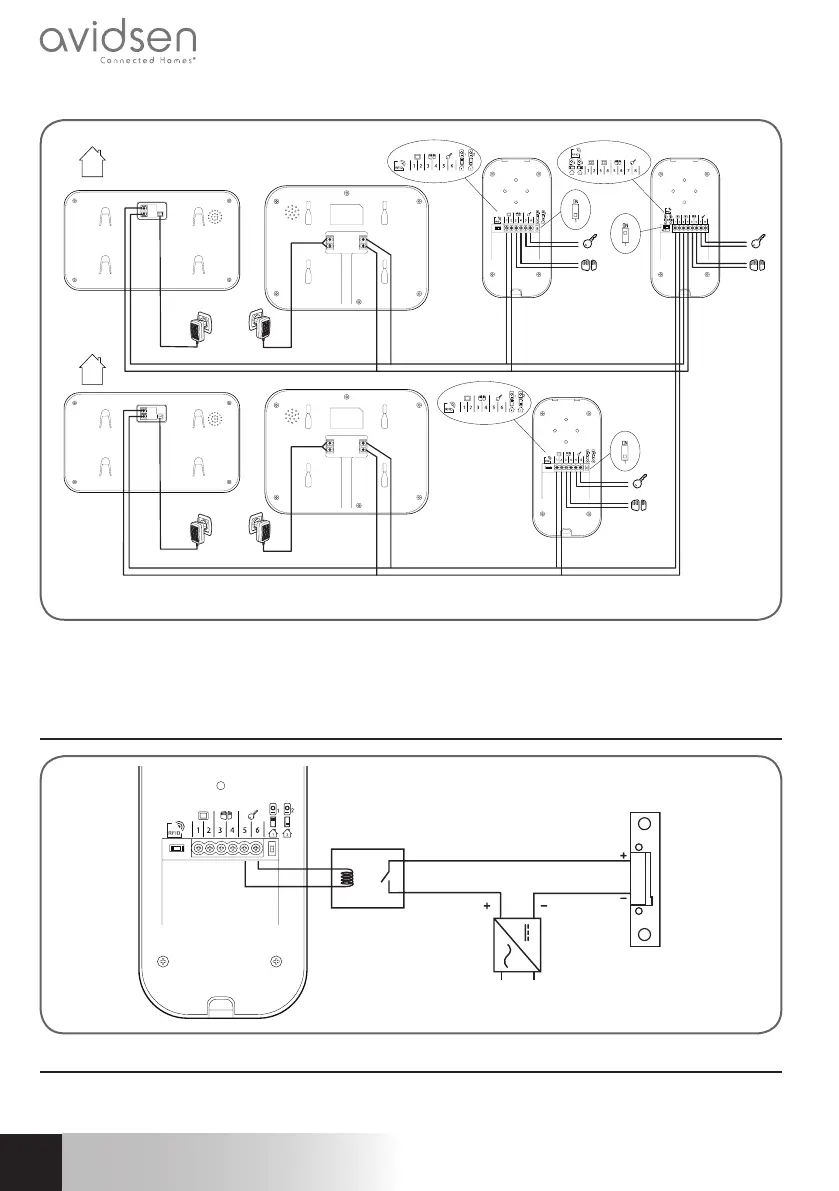

3.2.4 - CONNECTION TO AN ELECTRIC STRIKE PLATE WITH ADDITIONAL POWER SUPPLY
12 VDC
Relay with 12 V coil
and NO contact
ref. 104765
230 VAC
13
14
5
9
3.3 - ACTIVATION AND USE OF BADGES
Three types of badges are included: the red administrator badge, the grey add badge and the blue user
badges.
