Avidsen YLVA 3+ - Multi-Device Connection Configurations

12
EN
C - INSTALLATION
COLOUR VIDEO INTERCOM 7"

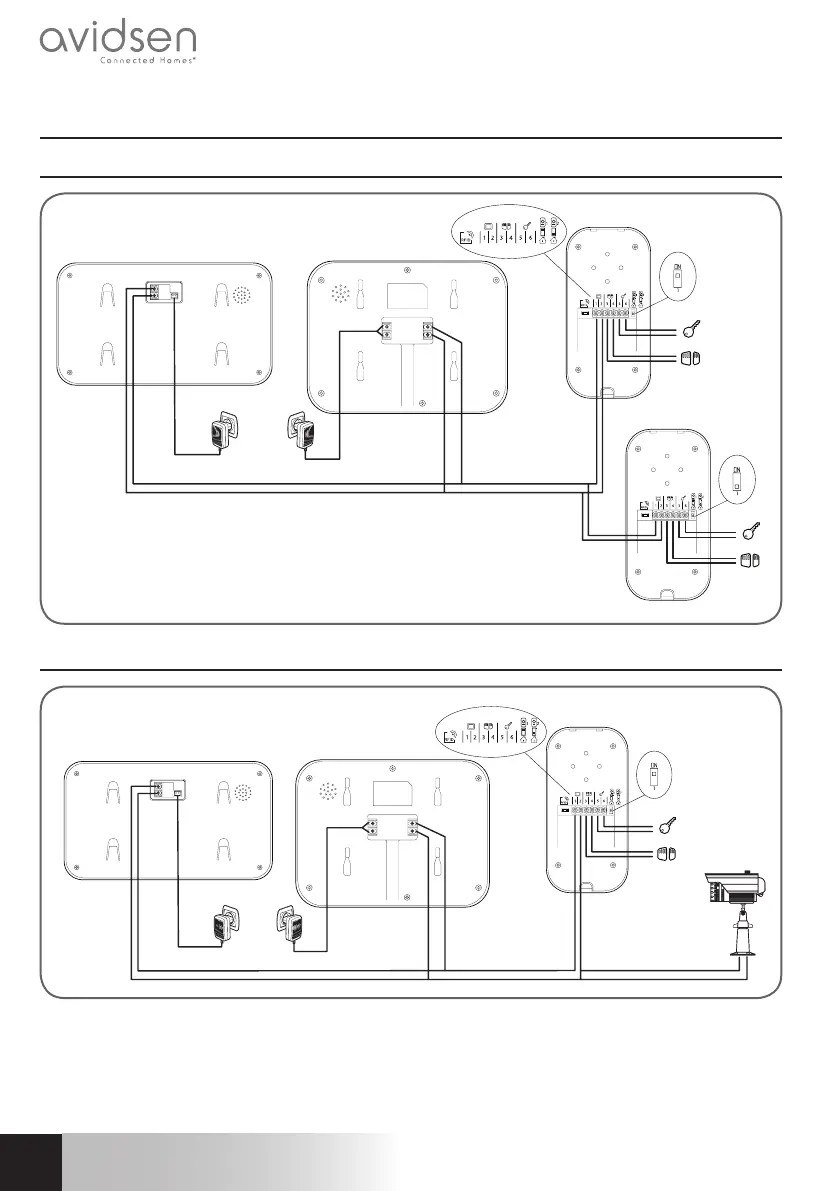

3.2 - CONNECTIONS
3.2.1 - CONNECTIONS 2 MONITORS + 2 INTERCOM PANELS
+
-
1
2
Monitor
ref. 112279
Monitor
Intercom panel
ref. 112273
Intercom
panel
3.2.2 - CONNECTIONS 2 MONITORS + 1 CAMERA
+
-
1
2
Monitor
Monitor
ref 112279
Intercom panel
CCTV
ref 112248
