COLOUR VIDEO INTERCOM 7"
B - PRODUCT DESCRIPTION
8 Loudspeaker
9 Power supply terminals
10 Communication terminals
*Subject to availability.

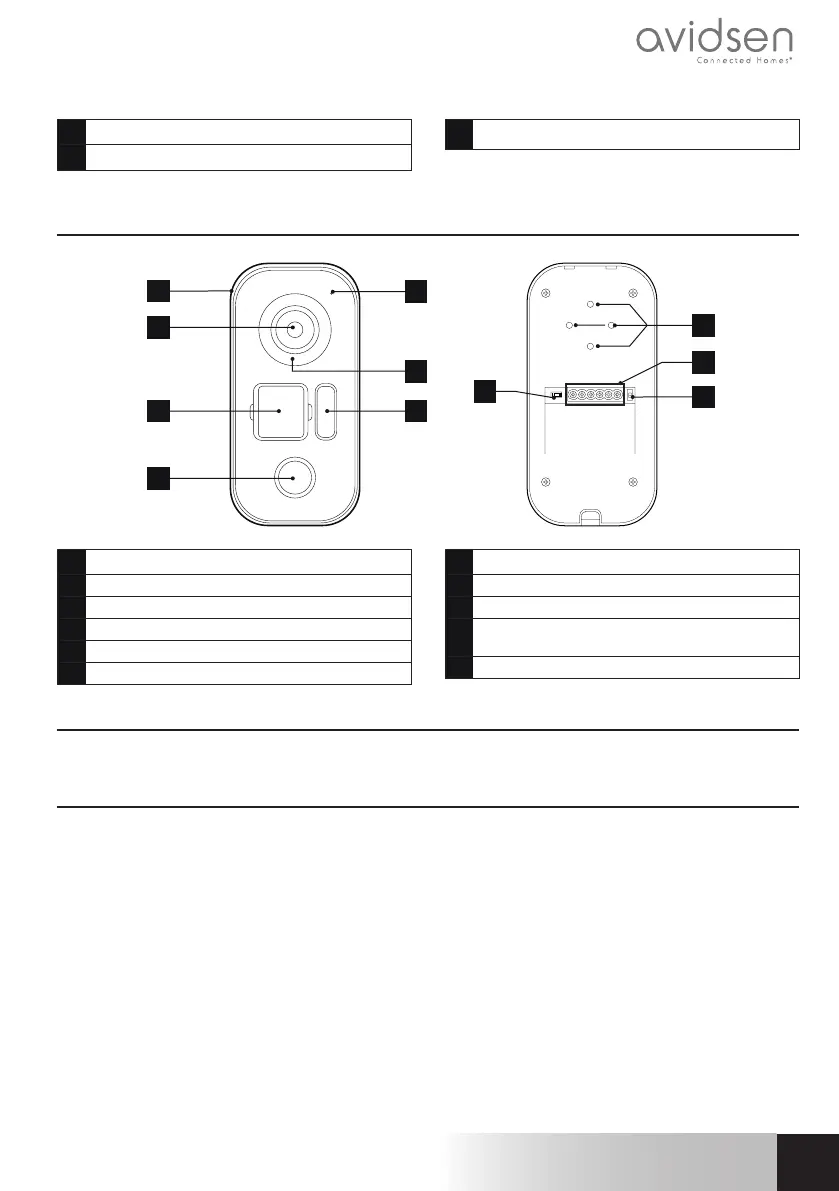

3 - INTERCOM PANEL
2
1
9
5
7
10
6
3
4
8
1 Protective hood
2 Lens
3 Name label
4 Loudspeaker
5 Microphone
6 Infrared illumination
7 Call button
8 RFID reset button
9 Connection terminals
10 Main or secondary intercom selection
switch
11 Camera direction slots
4 - WALL BRACKET
The monitor is designed to be fixed to the wall. A wall bracket and the necessary fasteners are included.
5 - MAINS ADAPTER
A 230 Vac 50 Hz/17 Vdc 1.5 A mains adapter for powering the monitor is included in the kit. Do not use other
power supplies as they could cause irreparable damage to the device and invalidate the warranty.
Do not cut or extend the wire of the mains adapter or the warranty will be void.
