FlightMax Entegra PFD
-20- 600-00081-000 Rev 07

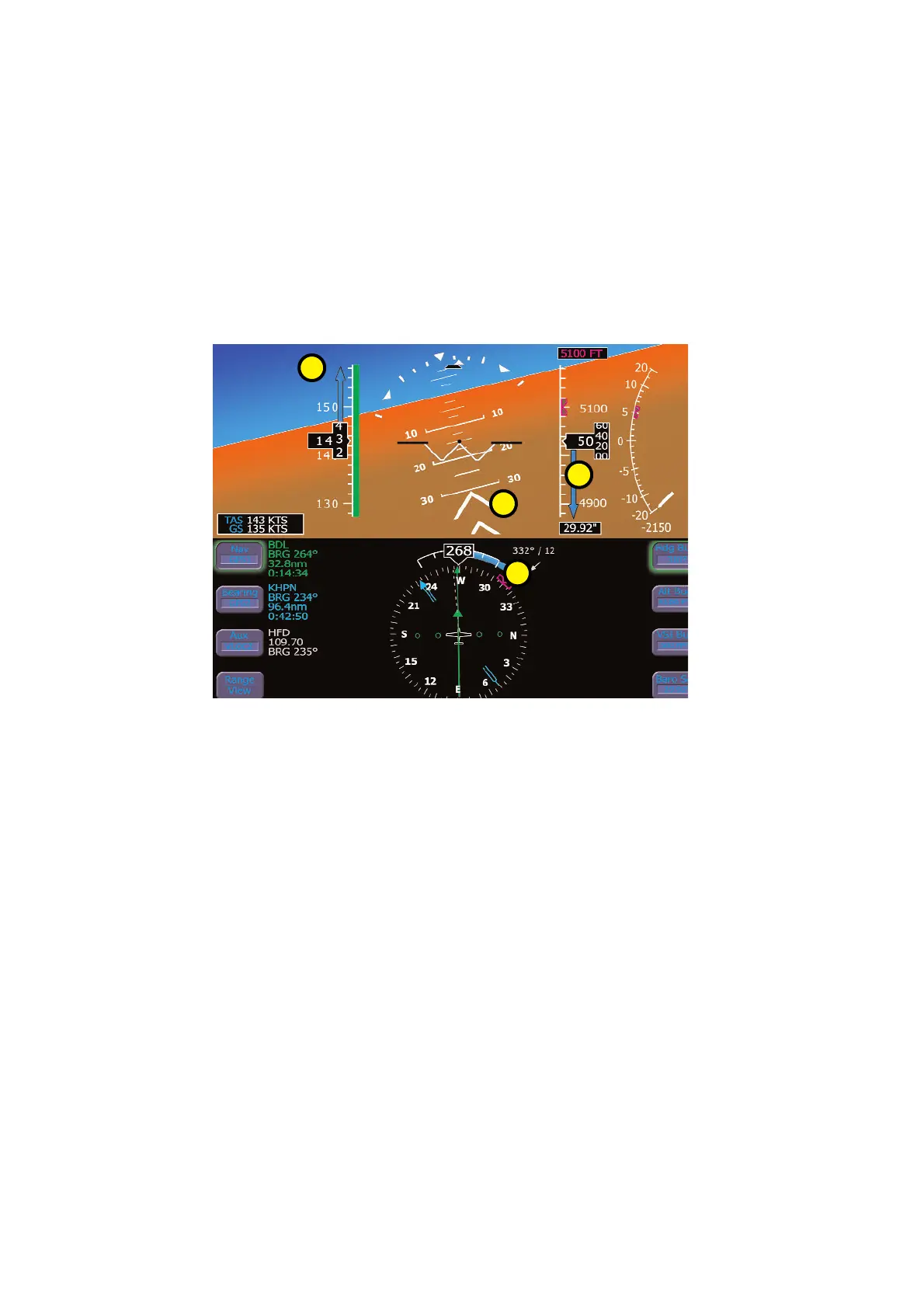

1. Airspeed Trend Indicator-
The tip of the blue airspeed trend
indicator displays the predicted airspeed six seconds into the future at
the current rate of change. An arrowhead indicates a value beyond
the current tape field of view.
2. Altitude Trend Indicator- The tip of the blue airspeed trend
indicator displays the predicted altitude six seconds into the future at
the current rate of change. An arrowhead indicates a value beyond
the current tape field of view.
3. Rate of Turn Indicator- The tip of the blue rate of turn indicator
displays the current rate of turn. The indicator is marked for 1/2 and
full standard rate of turn.
An arrowhead indicates a value beyond
1 1/2 st
andard rate.
4. Excessive Pitch Chevrons- The large white chevrons are
displayed at pitch values greater than +50 degrees and less than
-30 degrees. In all cases, the chevrons point towards the horizon line.
The trend indicators display the aircrafts projected airspeed and
altitude six seconds in the future. To capture and maintain a desired
airspeed or altitude, adjust pitch and/or power to align the trend
indicator with the desired airspeed or altitude. This will result in a
smooth capture of the desired airspeed and altitude.
Users Guide Use of Trend Indicators
