FlightMax Entegra PFD
-30- 600-00081-000 Rev 07
In the unlikely event that valid air data is unavailable:
1. Airspeed, altitude, and vertical speed data will be removed
and replaced by red-Xs;
2. Wind Vector data will be removed and replaced by dashes.
3 Outside Air Temperature (if displayed) and True airspeed data
will be removed and replaced by dashes;

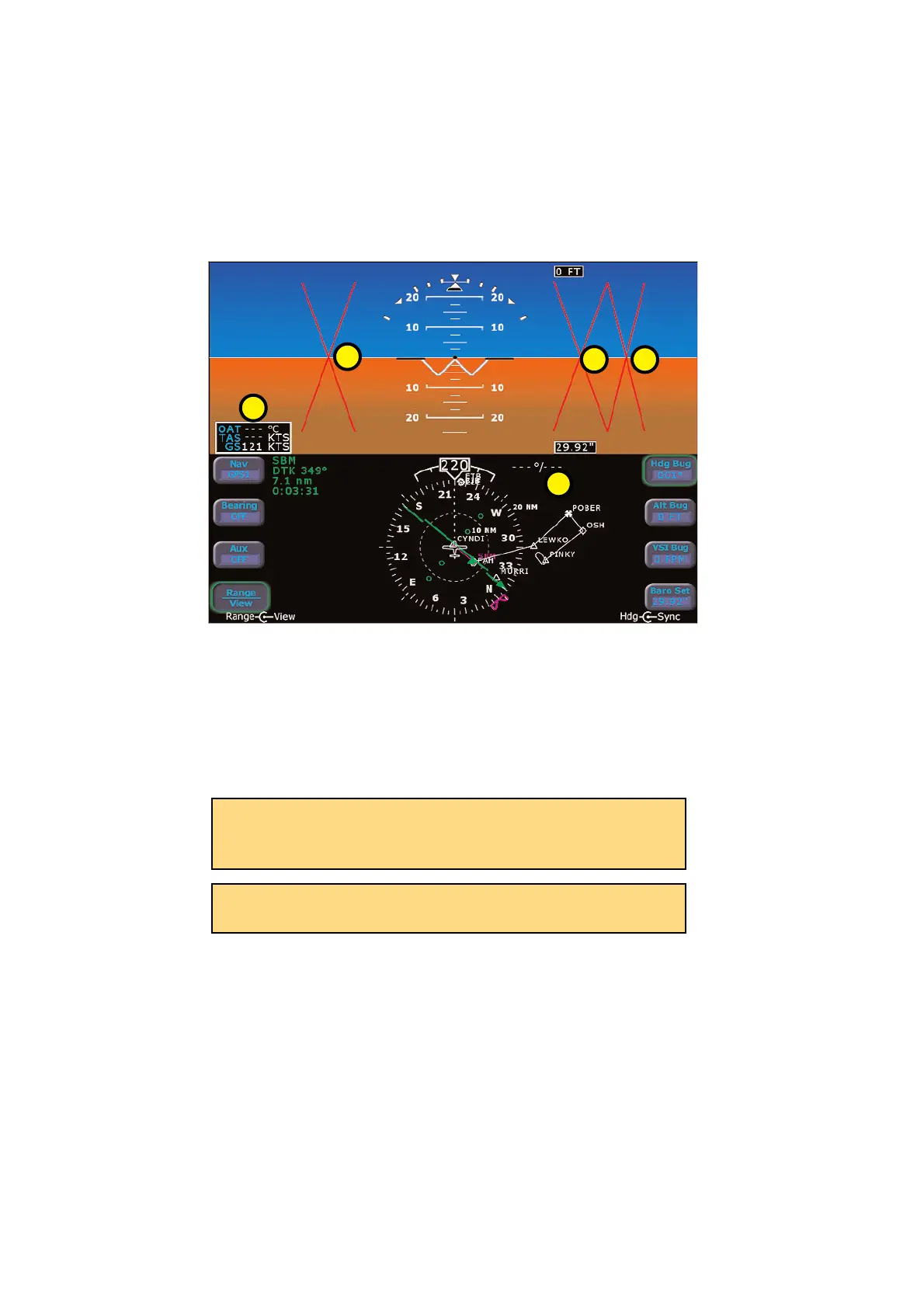

Invalid Sensor Data Invalid Air Data
2
1
1
1
3
If this occurs, revert to the mechanical backup airspeed
indicator and altimeter. Cross referencing the PFD attitude to the
backup ADI is recommended during flight with invalid air data.
When air dat
a is determined to be valid, the display of air data
will be restored.
