Avidyne FLIGHTMAX Entegra User Manual

FlightMax Entegra PFD
-2- 600-00081-000 Rev 07
1. Air Data - Displays True Airspeed (TAS) and Ground Speed (GS) in
knots, and Outside Air Temperature (OAT) in degrees Celsius. Invalid data
is displayed as dashes (---). OAT will not be displayed on the PFD when
the aircraft is equipped with an EX5000 MFD and EMax engine monitor.
2. Airspeed Window- Displays current indicated airspeed in knots.
Hash marks are displayed below 20 knots.
3. Airspeed Tape- Indicated airspeed with a display range from 20 kts to
300 kts. Each minor graduation represents 2 knots and each 10 knot major
graduation is labeled. Color bands are aircraf
t type specific:
Red Band: Never exceed speed, V
NE
, up to top of the airspeed tape.
Yellow Band: Maximum structural cruise speed, V
NO
,
up to never exceed speed, V
NE
.
Green Band: No flap stall speed, V
S
, up to maximum structural
cruise speed, V
NO
.
White Band: Full flap st
all speed, V
SO
, up to maximum flap
extension speed, V
FE
.
Red Band: 20 kt
s up to full flap stall speed, V
SO
.
4. Aircraft Reference Symbol- Current aircraft pitch angle is represented
by a black dot in the center of the Flying-W against the pitch ladder.

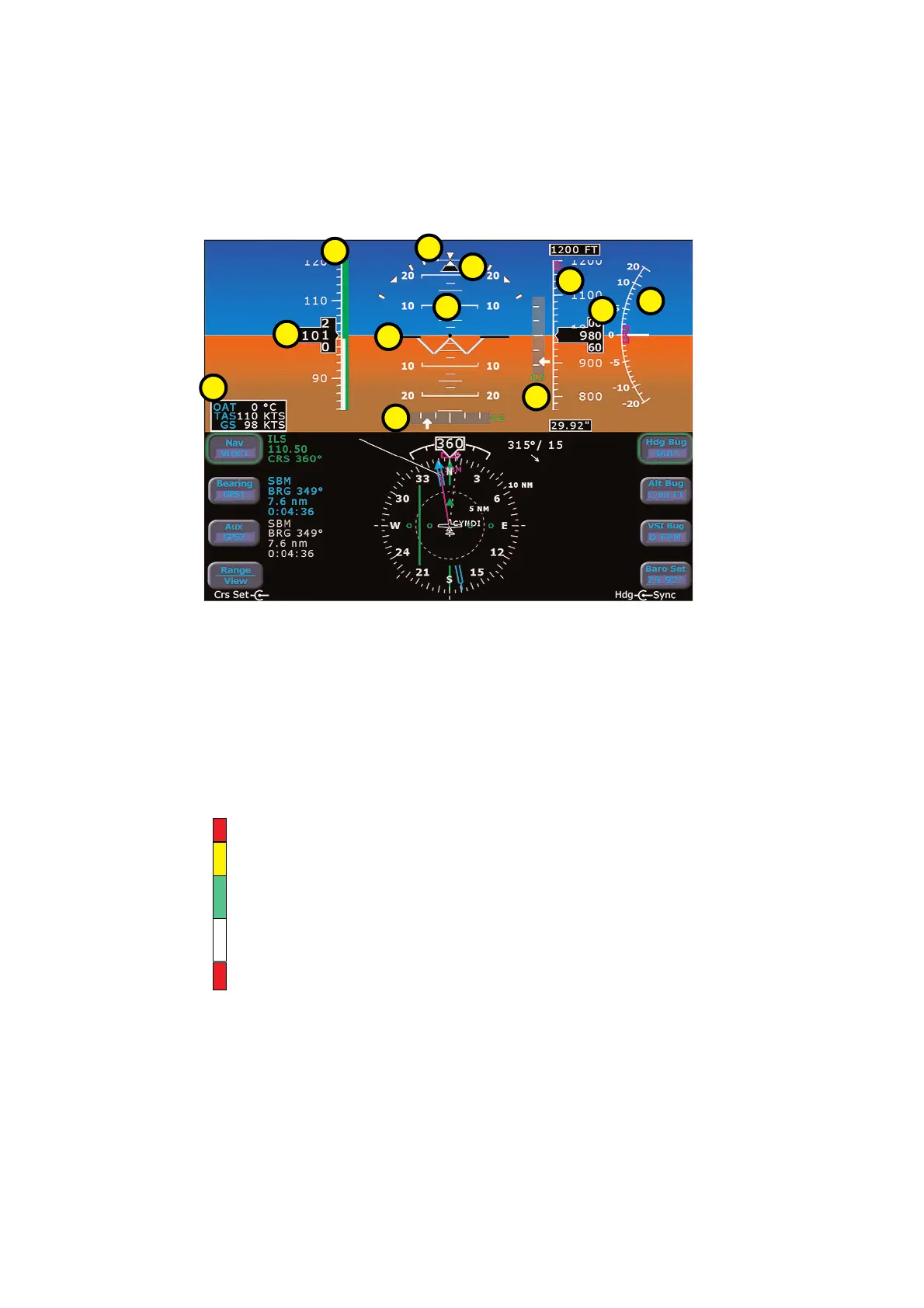

System Overview ADI Symbology
2
1
5
4
8
10
11
12
9
7
6
3
