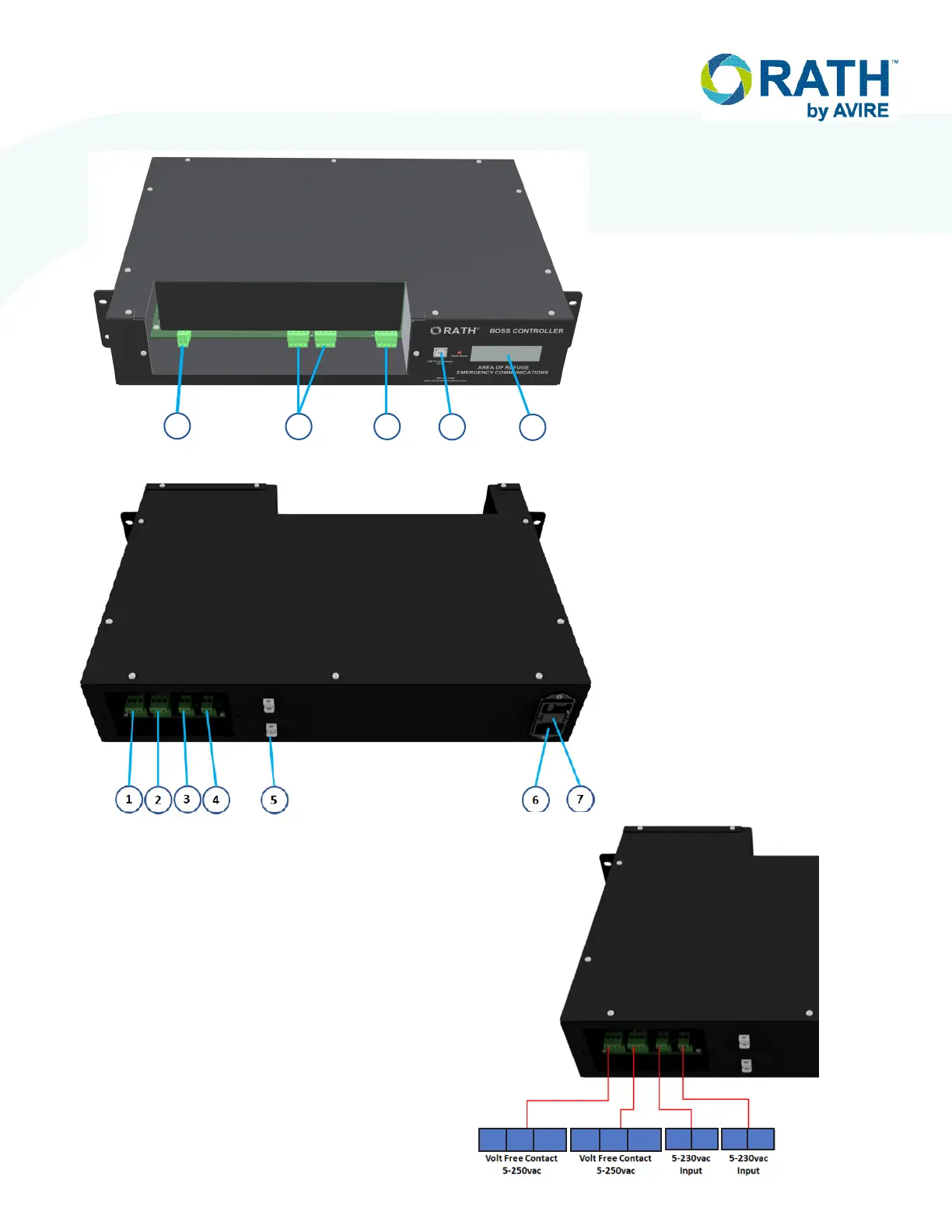

Appendix A - BOSS Detail and

Mounting

Front Components

1. External Phone Line connection

2. Call Box loop 1 and 2

3. Call Commander

4. USB programming input

5. System status display

Back Components

1. System fault relay output

2. Call Box Active Call relay output

3. Power supply fault input

4. Battery fault input

5. Cable strain relief

6. IEC power supply input

7. Power supply fuse

COMNC

COM

NC NO

V+ V-V+ V-

Page 23

1 2 3
