AVL DiTEST MCS 120
Components
User Manual
15

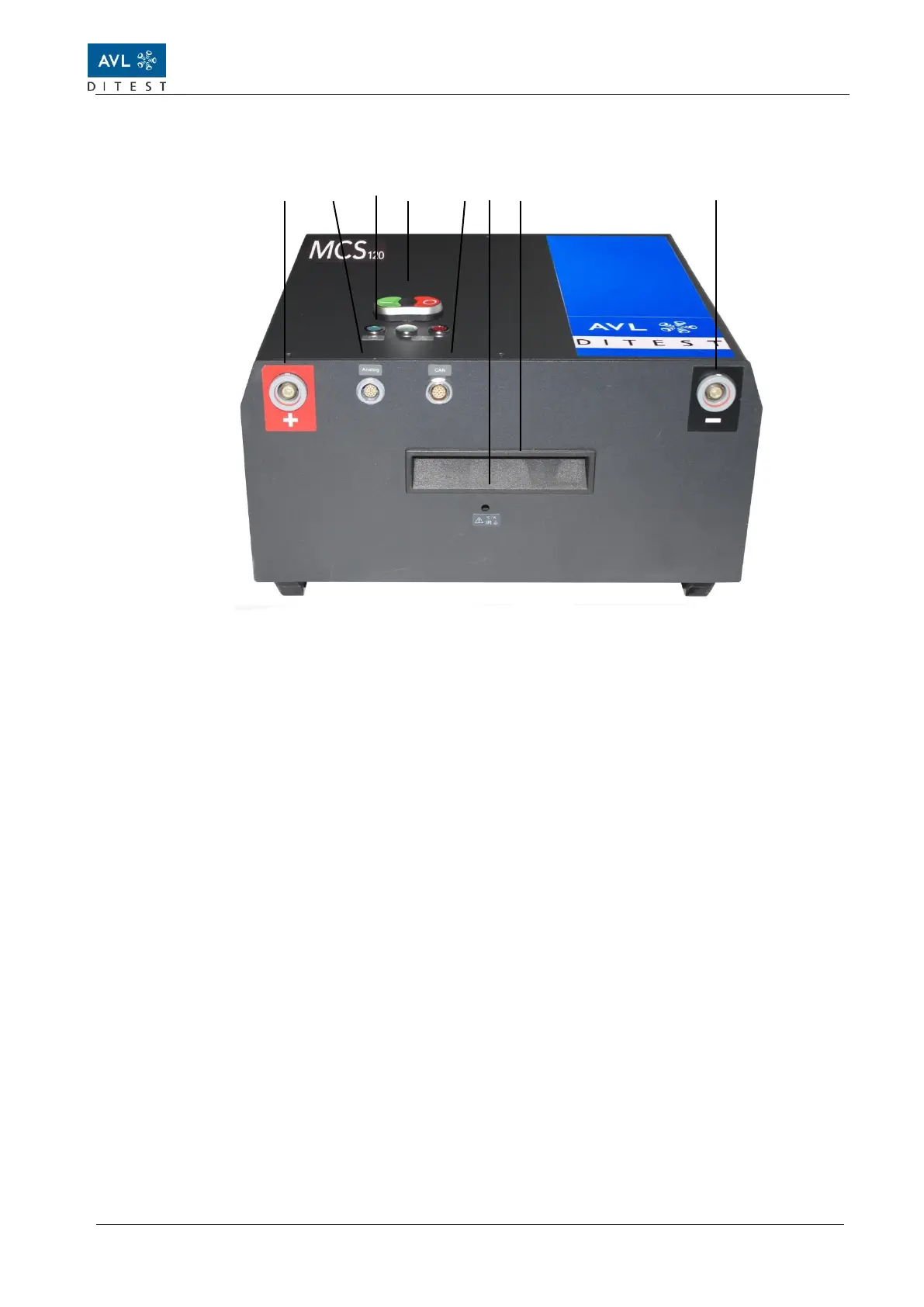

MCS 120, front view
Fig. 2-9 MCS, front view
(1) Connector „plus“ (red)
(2) Connector “analogue”
(3) LEDs
Green  Charging / discharging is running
Blue  Device on and ready
Blue  Device is idle
Red  Charging / discharging is running or an error has
happened
(4) On / Off button
Green  Power module ON (active mode)
Red  Power module OFF (idle mode)
(Only the modules are switched on/off)
(5) Connector “CAN”
(6) IR temperature sensor
(7) Carrying handle
(8) Connector “minus” (black)
