AVL DITEST MCS 120 User Manual

Commissioning
AVL DiTEST MCS 120
22
User Manual
4. Connect the power cord to the mains connector (1) and the main plug into
the wall outlet.
WARNING
Use the included mains cord set (power cord)!
If the mains cord set has to be changed note the following requirements
strictly!
On 240 V mains grid the mains cord set must be designed for a continuous
current of 10 A, on 120 V mains grid the mains cord set must be designed
for a continuous current of 20 A.
The mains cord set must have a C19 plug for the connection to the MCS 120
suitable for the above current ratings.
Connect MCS 120 only to protective contact sockets!
Set up the MCS 120 in a way that there is always free access to the power
separator! (Power cord from the mains socket).
Version USA: Only oil-resistant cables may be used!

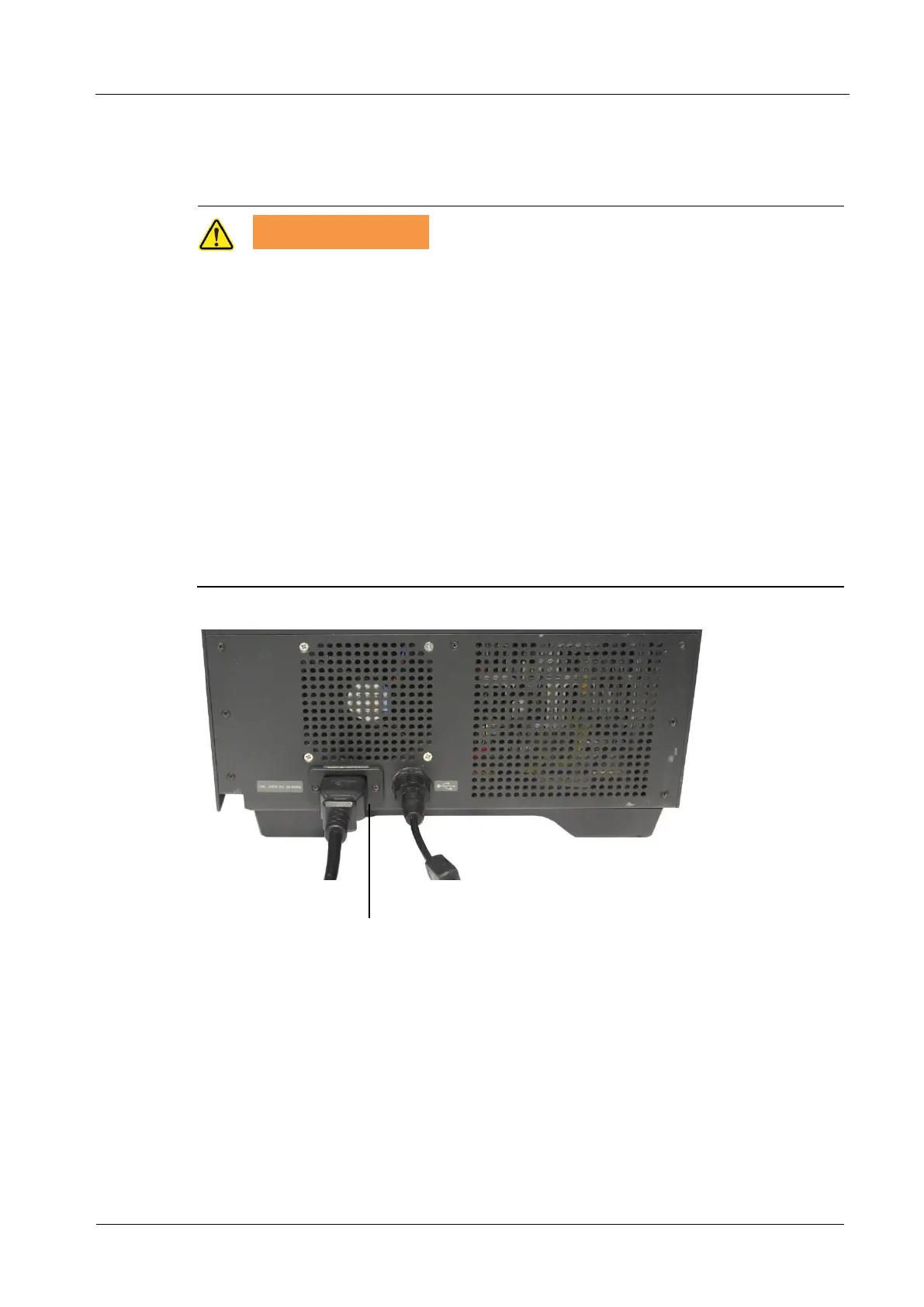

Fig. 3-4 MCS 120
5. The MCS 120 is ready for operation.
