AVL 415SE Smoke Meter — Maintenance Guide
Paper transport roll Paper transport roll complete
Material number: BW5409
 Standard transport roll
Material number: YM3687
 For measurements with high hydrocarbon contents of the particle an alter-
native transport roll is available:
Alternative transport roll
Material number: YM6962.
Ratchet clip We recommend replacing the ratchet clip during the annual preventive mainte-
nance.
Ratchet clip compl. G002 4152W52
Part Number: BO6671SP
NOTICE
This roll is not recommended as standard transport roll and shall not replace
YM3687.
o

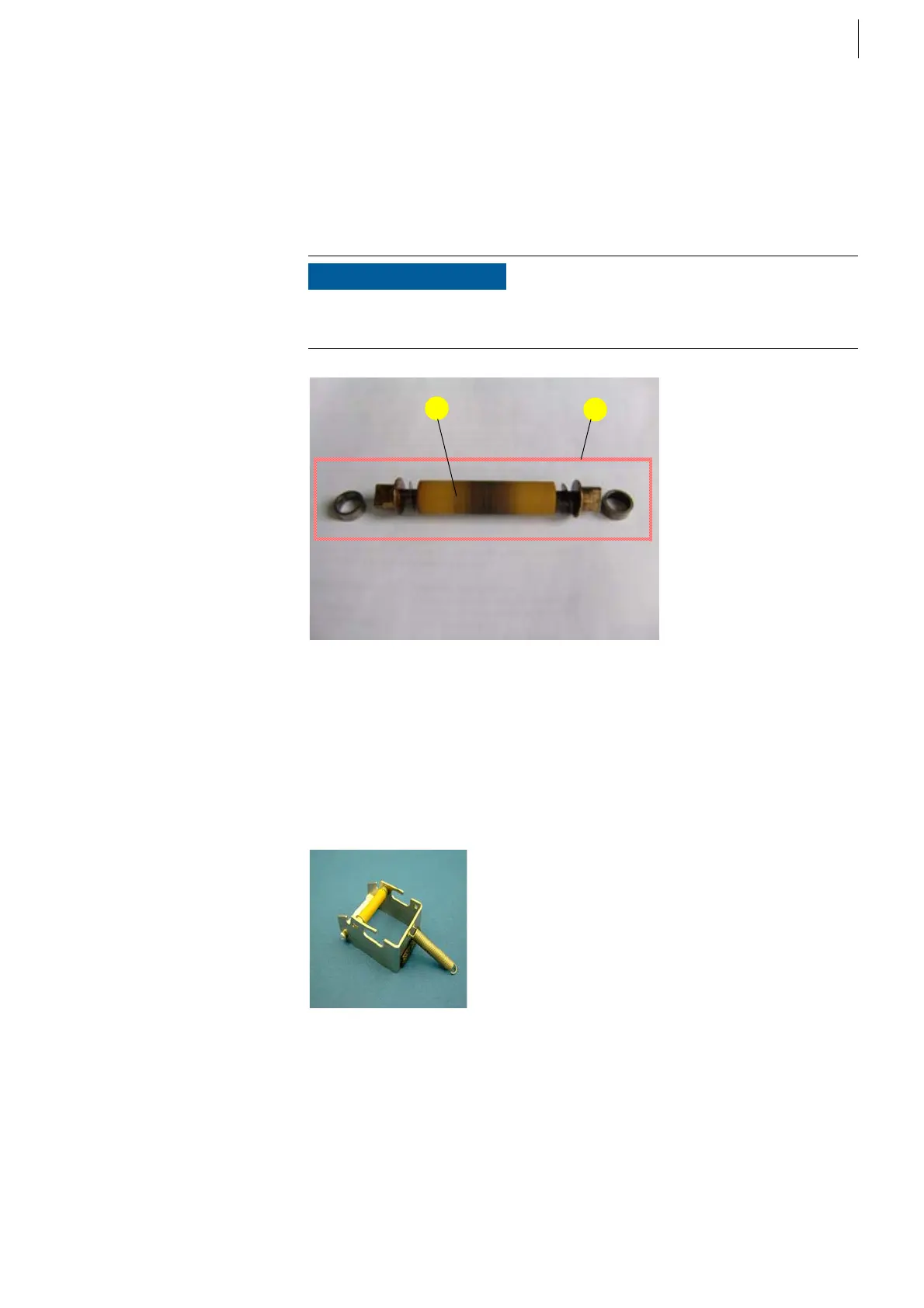

1.....Transport roll
2.....Paper transport roll complete
Fig. 17 Paper transport roll complete
2
1
Fig. 18 Ratchet clip complete G002 4152W52
(Available in the eSpares
TM
Webshop)
