Maintenance

AVL 415SE Smoke Meter — Maintenance Guide

Ratchet clip roll 4152X63./C00.0

Part Number: YM3804

Clamping lever Clamping lever compl. G002 4152W50

Part Number: BO6439SP

2.3.8

Camshaft

The camshaft must be replaced if the surface of the tappet is roughened or flat-

tened.

1. Check that the resting position of the camshaft is < ±10 deg.

2. Keep in mind that the camshaft bearing in the bearing block must not be

chipped.

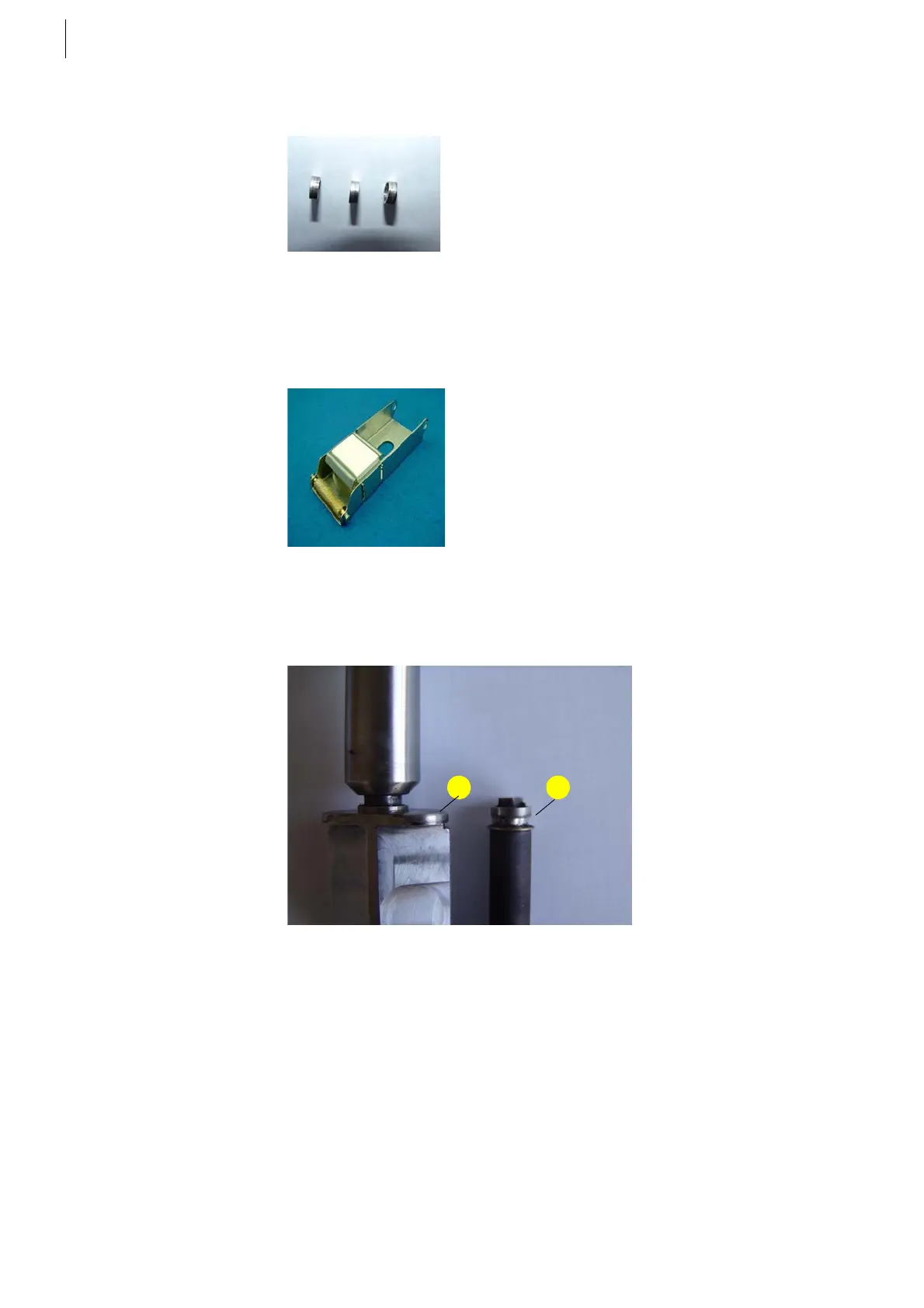

Fig. 19 Ratchet clip roll 4152X63./C00.0

(Available in the eSpares

Webshop)

Fig. 20 Clamping lever complete G002 4152W50

(Available in the eSpares

Webshop)

1 .... Defective camshaft surface

2 .... Defective ratched clip rolls, caused by defective camshaft surface

Fig. 21 Camshaft

1 2
