Maintenance
36
AVL 415SE Smoke Meter Maintenance Guide
Shop Air
Compressed Air
Unit
Usually no replacements of parts is necessary.
2.3.13
Pressure Reduction
Pressure
Reduction
Clean the unit once per month with compressed air.
Check Valve
1. Regularly clean/replace one check valve in rotation with the other one.
2. Replace the check valves once a year.
3. Perform a visual check after every assembly and at least once per week.

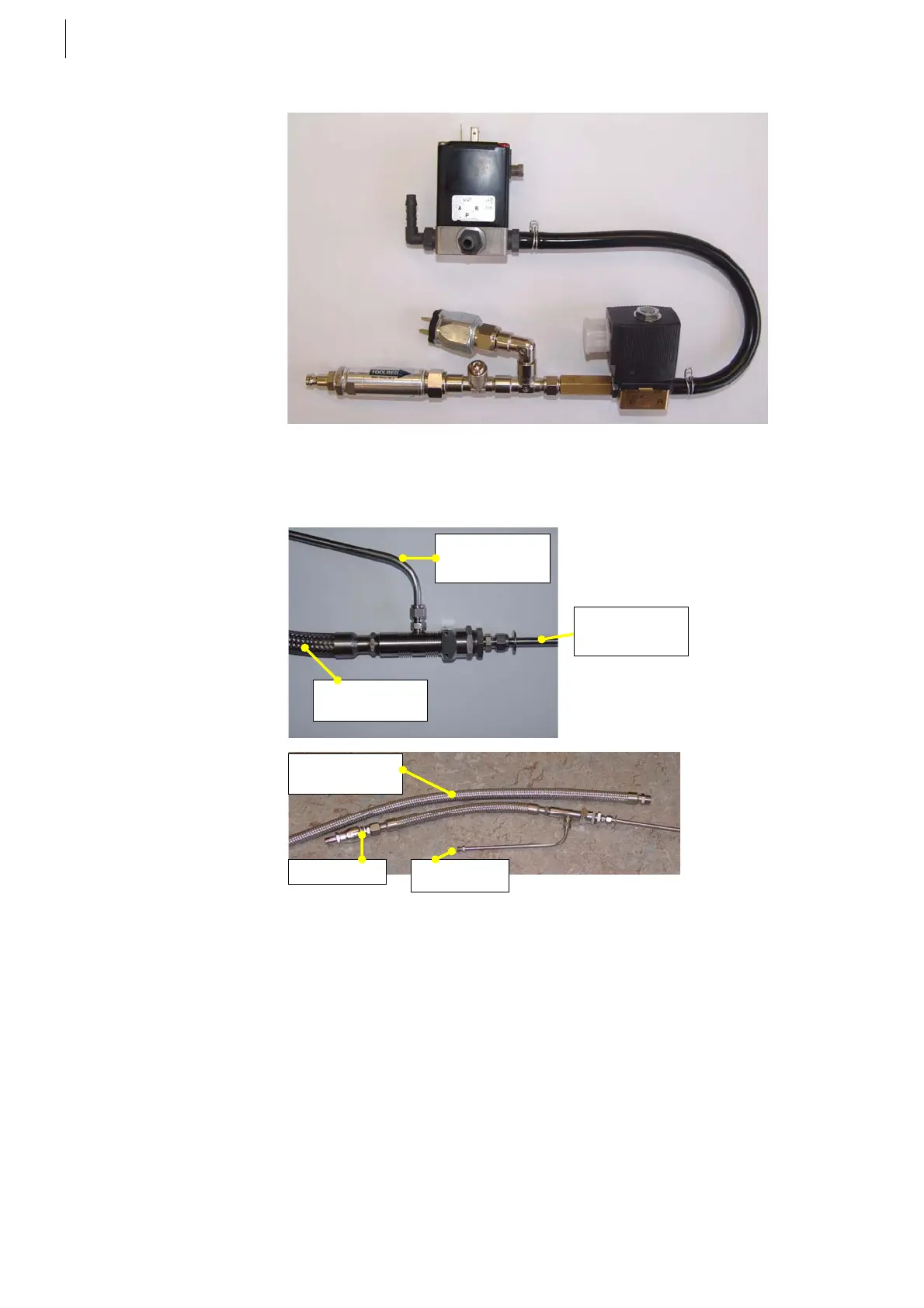

Fig. 30 Compressed air unit for option Shop Air
Fig. 31 Pressure Reduction Unit
Probe for connection
into the exhaust
duct
Probe to Smoke
Meter, 30 and 70 cm
long variants possible
Extension for cooling
the exhaust gas
Extensions for cooling
the exhaus gas
Check valve 30cm probe with connection
to Smoke Meter tubings
