Maintenance
AVL 415SE Smoke Meter Maintenance Guide
The sampled volume "Vol 415 at 25 °C/1 bar" should be between
20000 and 26000 ml in unheated operation, which matches a pumping
capacity of 10 13 l/min.
In heated operation, the measured value range is about 15 % smaller
(i.e. approx. 17000 to 23000 ml).
Pump
components
1. After about 1 000 operating hours or after 3 months at permanent system
usage at automatic tests, clean or replace the orifices, membranes, dia-
phragms and pump heads.
2. For reassembling the pump, follow the service memo 15/06.
Diaphragm pump
We recommend replacing the pump every 2 000 to 3 000 operating hours:
Diaphragm pump type 7015ZV/24VDC
Material number: MV0207SP
Shop Air
Service Unit
We recommend the replacement of the filters once a year.
Information
With a sampling line with a maximum length of 3 m connected to MV3 or
MV4, the flow rate may be reduced by no more than further 10 %.
If the Special Sampling Option (Sample Out Box) is installed, the flow rate
can also drop by around 10 %.
If the option Shop Air Purge is installed, the flow rate can also drop by
around 10 %.

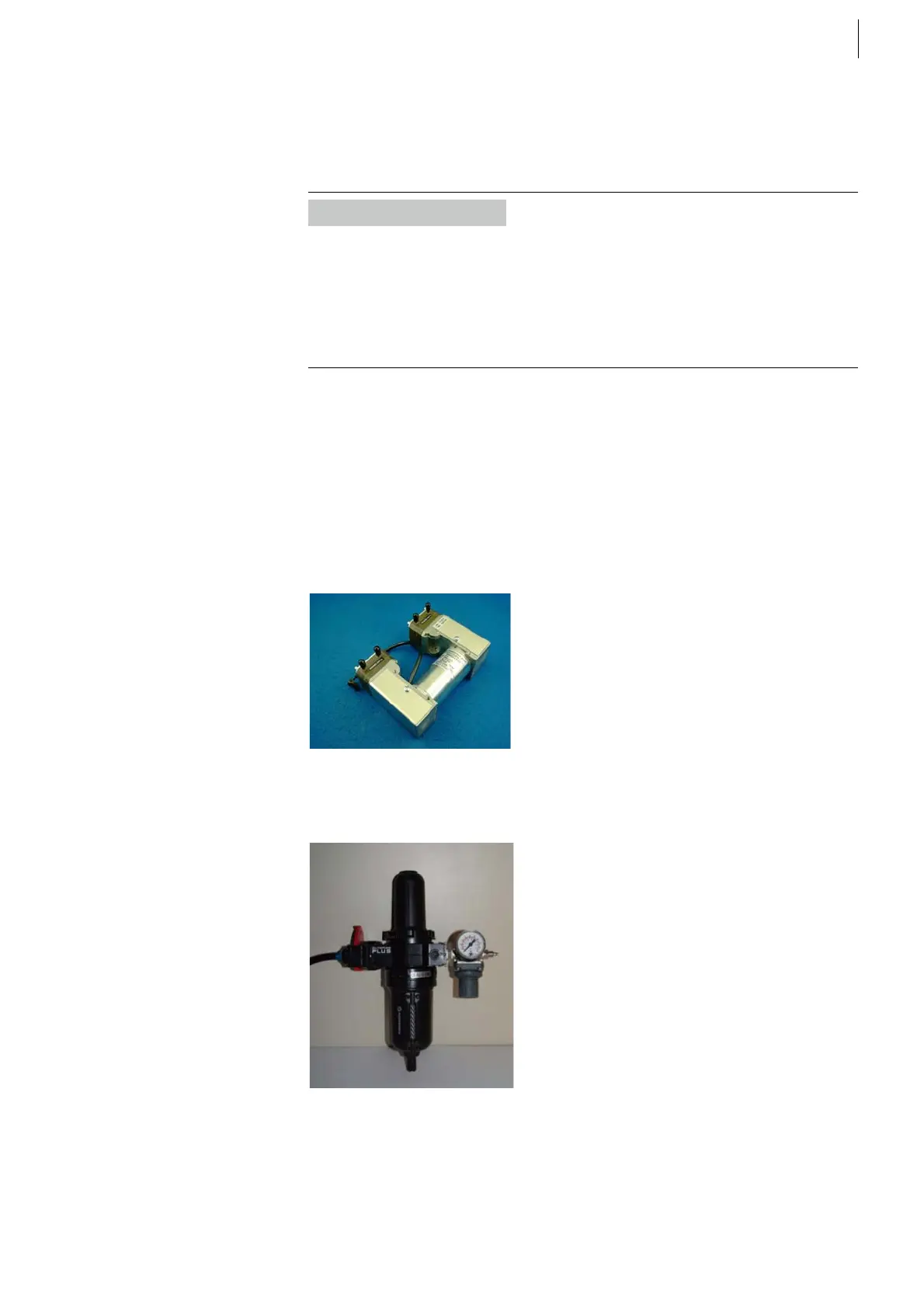

Fig. 28 Diaphragm pump type 7015ZV/24VDC
(Available in the eSpares
TM
Webshop)
Fig. 29 Service unit for option Shop Air
