AVL 415SE Smoke Meter — Maintenance Guide
2.3.2.2 Lubrication Points
Information
Lubrication and cleaning points (Fig. 1-Fig. 4)
 Blue frame:
Lubrication only with Teflon lubricant oil (material number HS0064) or Teflon
lubricant spray (material number HS0058).
 Red frame:
Lubrication (preferably) with lubricant grease (material number HS0071)
or also with lubricant oil or lubricant spray.
The marking applies for all lube points.
All marked lube points need to be cleaned on a regular basis too.

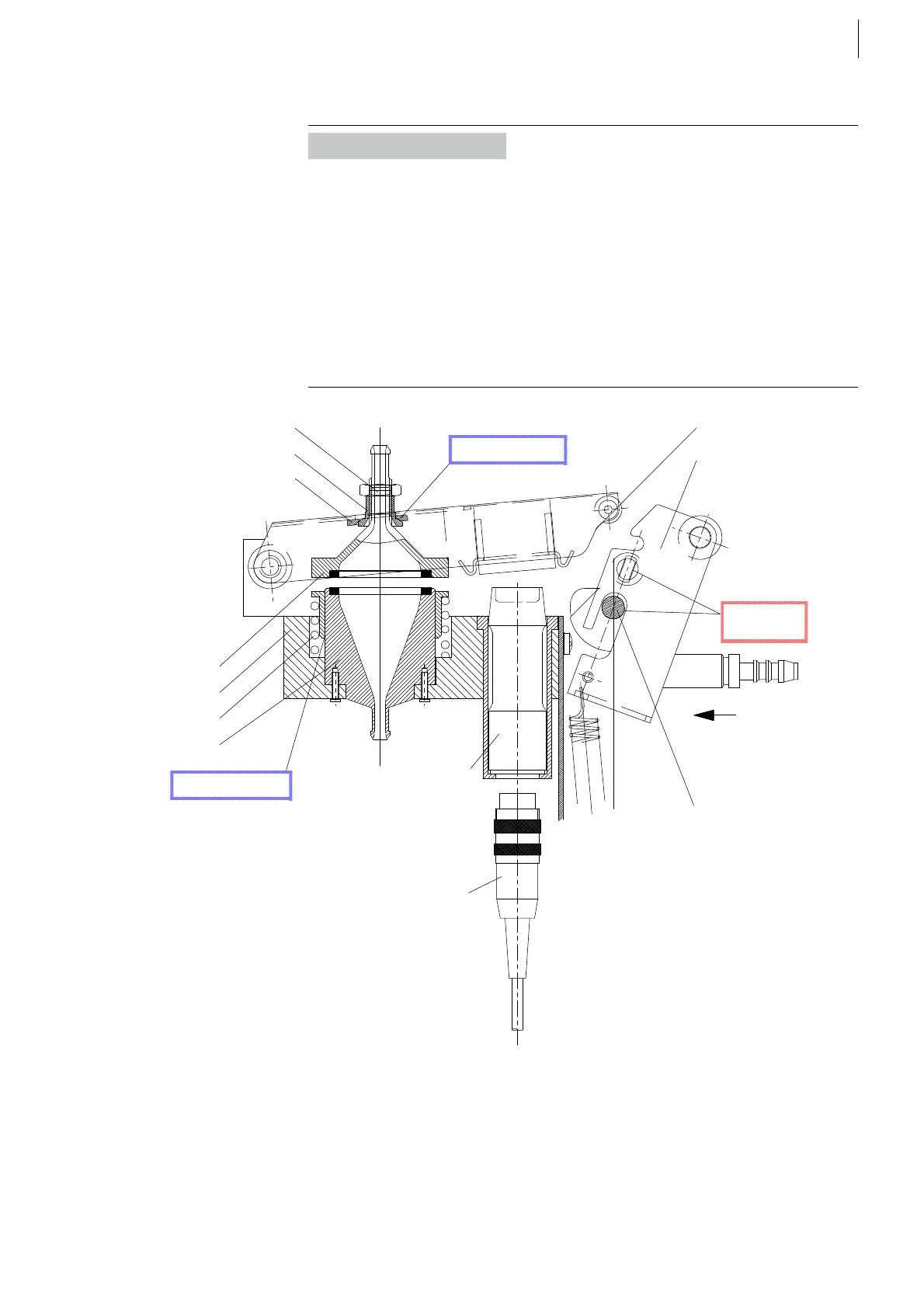

Fig. 1 Lubricating points for camshaft, clamping piece and guides of paper transport roll
Camshaft
Lubricating
points
Lubricating points
Lubricating point
Lock nut
Setting nut
Taper hub washer
Clamping lever
Ratchet clip
Upper clamp piece
Clamping block
Lifting spring
Lower clamp piece
Reflectometer head cable
Reflectometer head
