AVM FRITZ!WLAN USB Stick Installation, Configuration And Operation

42
Checking the IP Settings
5. On the “General” tab, enable the options “Obtain an
IP address automatically” and “Obtain DNS server
address automatically”.

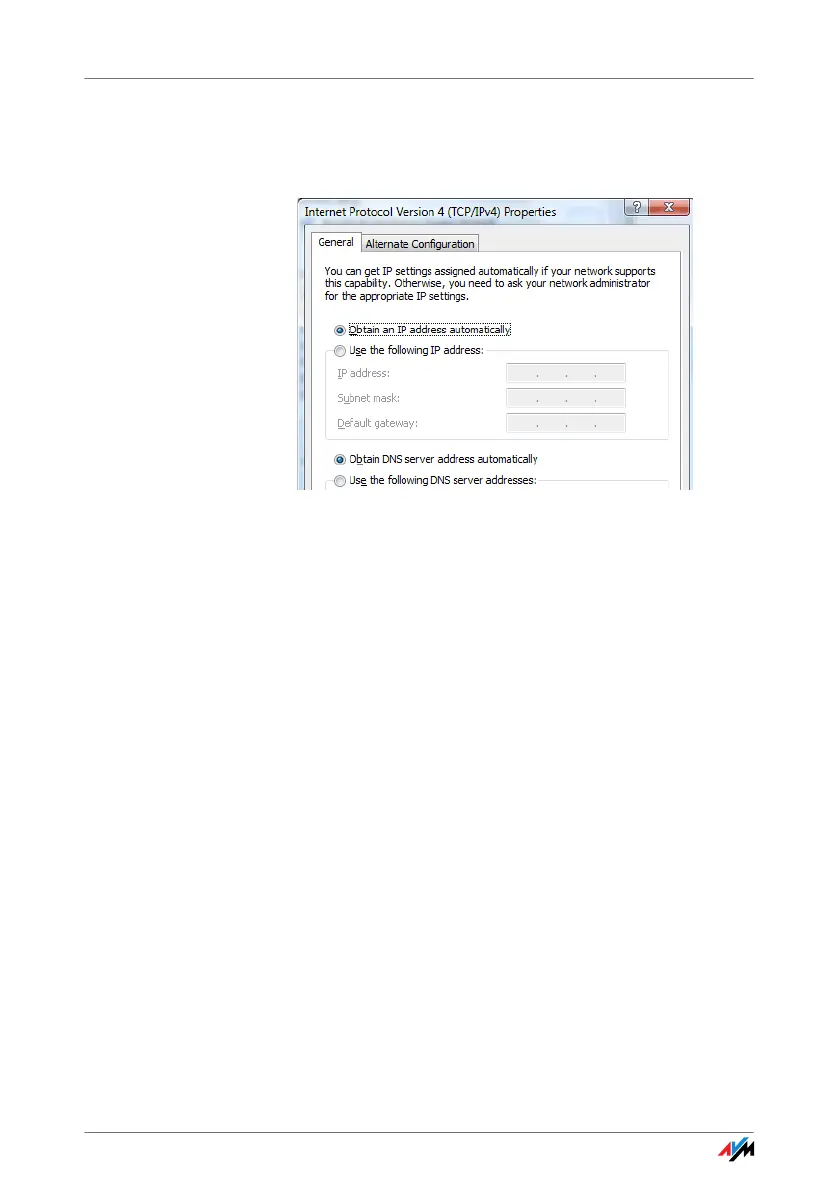

Properties of the Internet protocol (TCP/IP)
6. Confirm your selection by clicking “OK”.
If necessary, repeat steps 4 through 6 for the “Inter-
net Protocol Version 6 (TCP/IPv6)” as well.
The computer now receives an IP address from the
WLAN access point.
For WLAN products of the AVM FRITZ!Box family, auto-
matic IP address assignment (DHCP) is enabled in
the factory settings.
Obtaining an IP Address Automatically in Windows XP
Proceed as follows in Windows XP:
1. Go to “start / Control Panel / Network and Internet
Connections / Network Connections” and double-
click the “Wireless Network Connection” of the
FRITZ!WLAN USB Stick.
2. Click the “Properties” button.
3. Select “Internet Protocol (TCP/IP)” in the list of items
used in this network connection and click “Proper-
ties”.

AVM FRITZ!WLAN USB Stick Specifications

General

Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Data link protocols	IEEE 802.11b, IEEE 802.11g, IEEE 802.11g++
Security algorithms	WPA, WPA2
Maximum data transfer rate	125 Mbit/s
Dimensions (WxDxH)	132 x 138 x 35 mm
Compliance industry standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11i
Supported data transfer rates	11 Mbit/s, 54 Mbit/s, 125 Mbit/s
Compatible operating systems	Windows Vista x64 Edition, Windows Vista, XP Professional x64 Edition, Windows XP/2000
Connectivity technology	Wireless
Component for	PC/Laptop

Weight and Dimensions

Weight	125 g
