AVM FRITZ!WLAN USB Stick Installation, Configuration And Operation

Checking the IP Settings
43
4. On the “General” tab, enable the options “Obtain an
IP address automatically” and “Obtain DNS server
address automatically”.

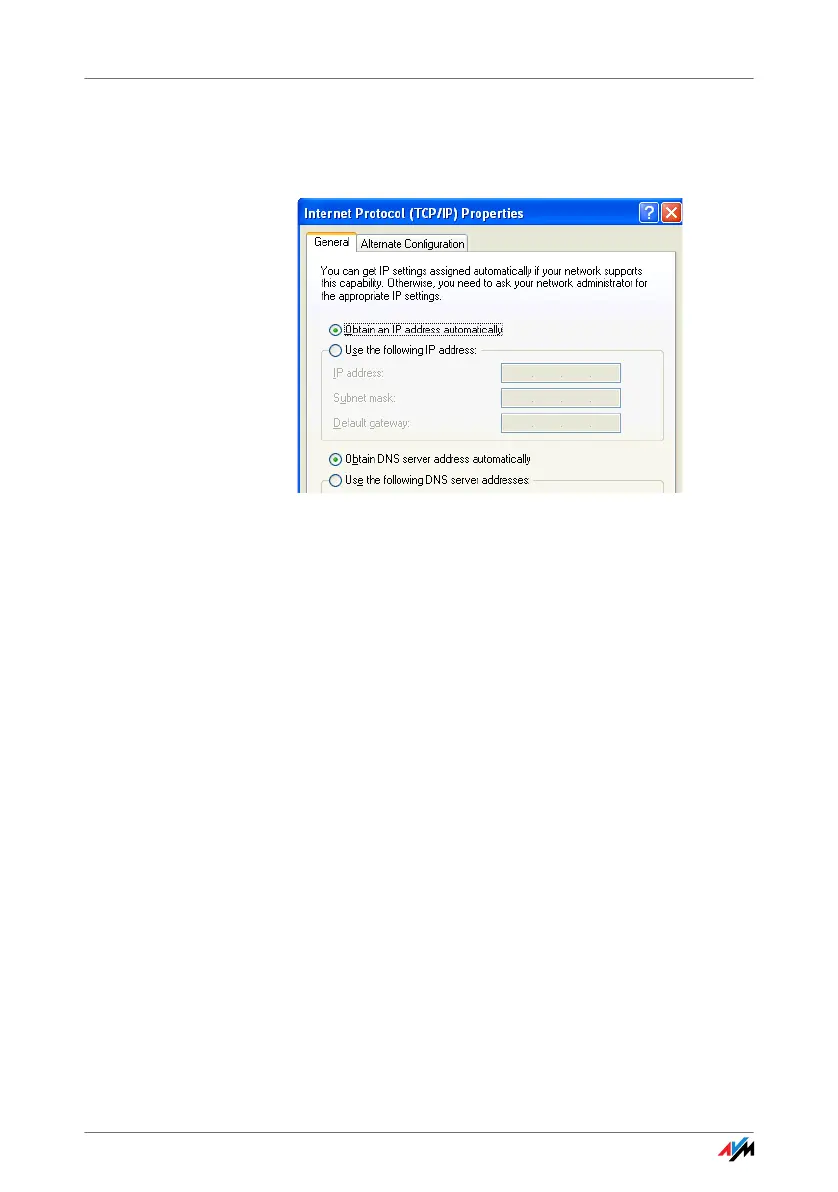

Properties of the Internet protocol (TCP/IP)
5. Confirm your selection by clicking “OK”.
The computer now receives an IP address from the
WLAN access point.
For WLAN products of the AVM FRITZ!Box family, auto-
matic IP address assignment (DHCP) is enabled in
the factory settings.
Obtaining an IP Address Automatically in Windows 2000
Proceed as follows in Windows 2000:
1. Select “Start / Settings / Control Panel / Network and
Dial-up Connections”.
2. Double-click to select the LAN connection
“FRITZ!WLAN USB Stick”.
3. Click the “Properties” button.
4. Double-click to select “Internet Protocol (TCP/IP)” in
the list of network components.

AVM FRITZ!WLAN USB Stick Specifications

General

Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Data link protocols	IEEE 802.11b, IEEE 802.11g, IEEE 802.11g++
Security algorithms	WPA, WPA2
Maximum data transfer rate	125 Mbit/s
Dimensions (WxDxH)	132 x 138 x 35 mm
Compliance industry standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11i
Supported data transfer rates	11 Mbit/s, 54 Mbit/s, 125 Mbit/s
Compatible operating systems	Windows Vista x64 Edition, Windows Vista, XP Professional x64 Edition, Windows XP/2000
Connectivity technology	Wireless
Component for	PC/Laptop

Weight and Dimensions

Weight	125 g
