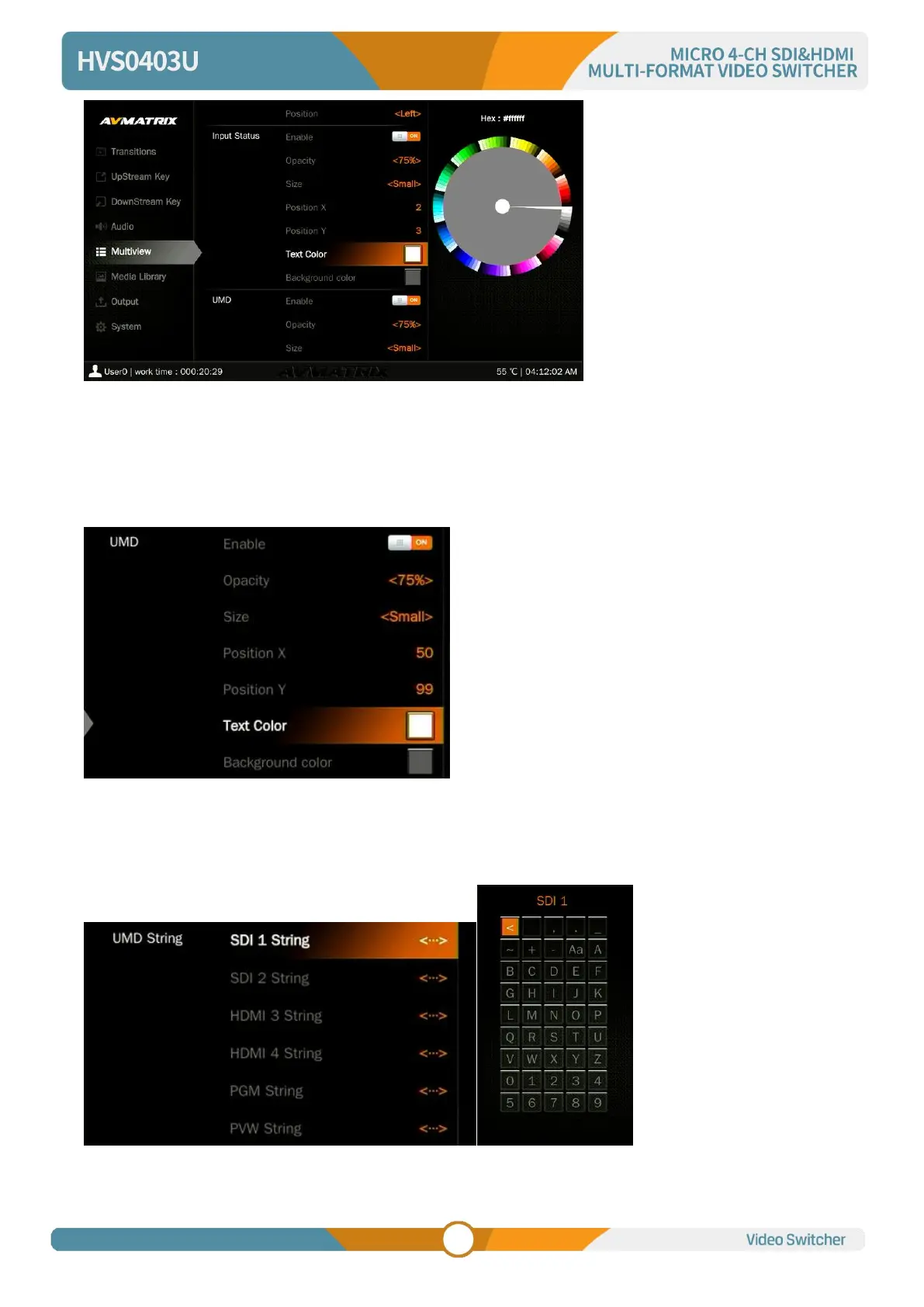

6.5. UMD Settings
The default UMD of the four inputs are SDI1, SDI2, HDMI3, HDMI4. User can turn on/off the UMD in each
window. Besides, user can set the overlay Opacity (50%, 75%, 100%), Size (Small/Medium/Large),
Position X & Y (1-100), Text color and Background Color. See below image.
The UMD string content for 2SDI and 2HDMI inputs can be set from menu. User can rename the UMD
content for each window by using a virtual keyboard and rotary button. It supports input max 10
characters for the UMD content. Below image as an example, rename the SDI1 to CAM1.
