1. BRIEF INTRODUCTION
1.1. Overview

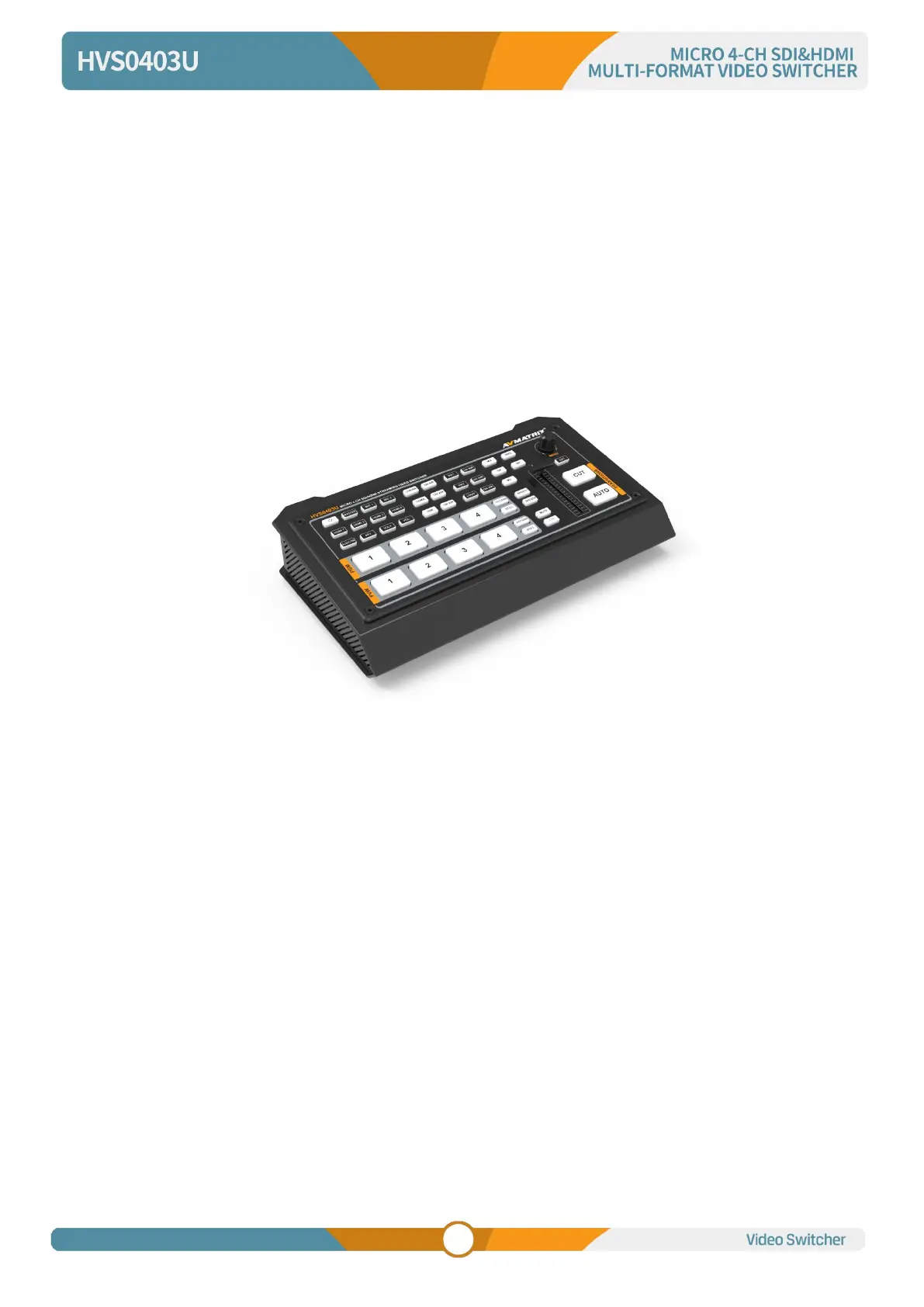

HVS0403U is a 4-channel HDMI&SDI multi-format video Switcher with compact metal case design. It
supports various functions including video switching, audio mixing, PGM/ multiview/ Aux out, different
transition effects, Luma Key Chroma Key, DSK, LOGO, PIP/ POP, media library, pattern and color
generator, etc. Inputs support multi-format, PGM output can be scaled, compatible with a variety of
equipment. The unit supports stream performances and presentations on PC through the USB-C port.
User can also customize different settings and import or export the configuration quickly for various
scenarios. It’s a powerful and professional video switcher for your choices.
1.2. Main Features
 2 channel auto-detected HDMI inputs and 2 SDI inputs

2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
 AUX output configurable and assignable

USB for capturing and streaming on PC

Clearly visible multiview & status page
 Upstream key: Luma key, Chroma key, PIP×2/ POP
 Downstream key and LOGO overlay

T-bar/ Auto/ Cut transitions; various effects: WIPE(11×2 patterns) / MIX/ DIP
 Audio mixer: HDMI embedded audio and 2-Ch MIC/line In; audio delay available

Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
 LAN port for PC software remote control

FTB/ MUTE/ STILL/ GPIO for tally
