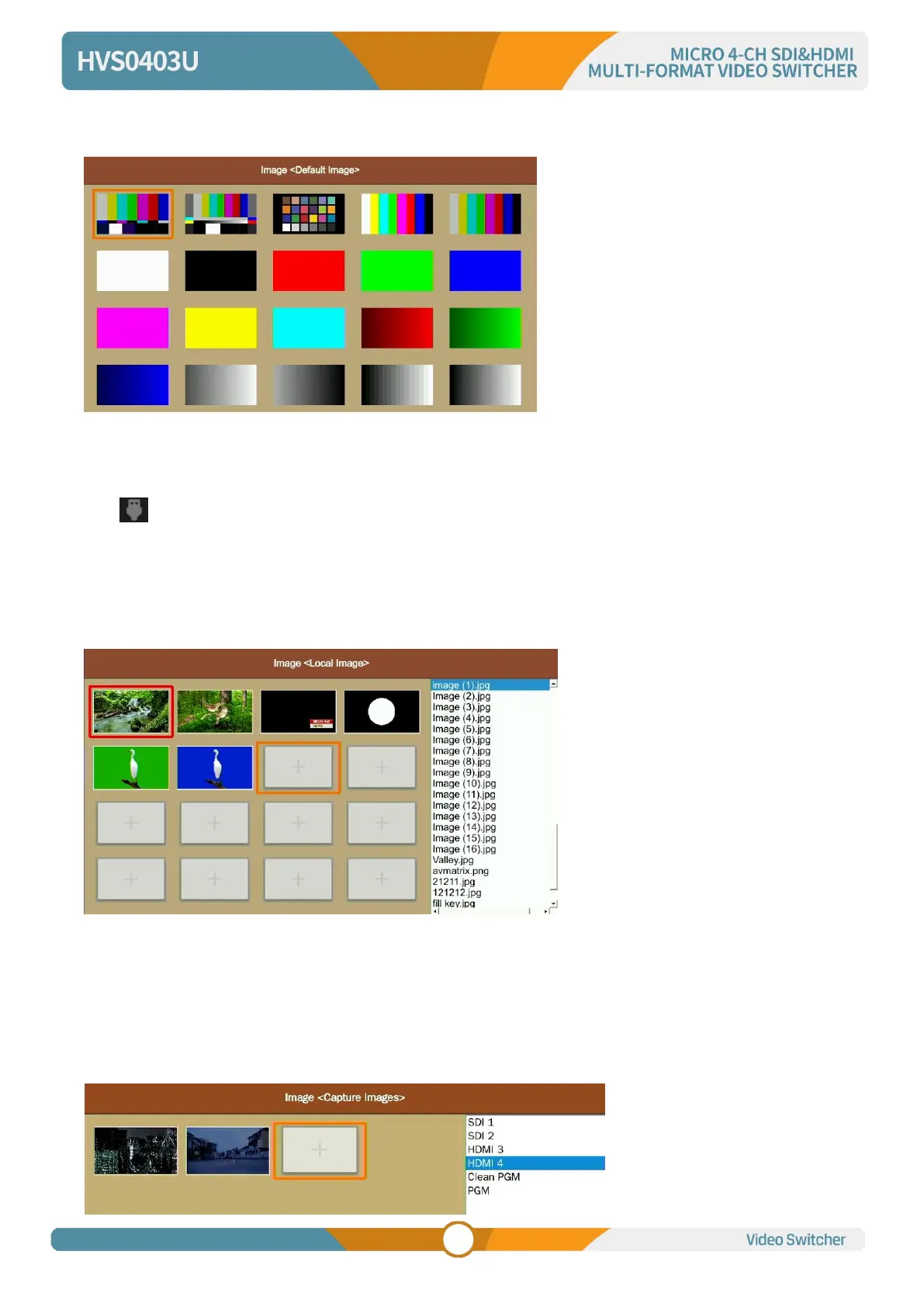

The default images are the images preset in the switcher. User can use rotary button to select one of
images from the Default Image as the source for PVW or PGM pattern. Total 39 default images for choice.
13.3.2. Local Image
The local images are the images which you upload from USB disk. When you plug in a USB disk, a
USB
icon will appear in the bottom of the Status/Menu page. The image list from USB disk can be viewed
on the menu. Select one image to upload it into the switcher. The uploaded image will be listed in the
media list. User can press the rotary button to select the uploaded image as source for PVW/PGM pattern
by selecting the option Select. User can delete the uploaded image from the menu. Up to 16 images can
be imported. See below images.
13.3.3. Capture Image
The capture image comes from screenshot of SDI 1, SDI 2, HDMI3, HDMI 4, Clean PGM, PGM. The
captured image will be listed in the media list. Up to 16 captured images supported. User can press the
rotary button to select the captured image as source for PVW/ PGM pattern by selecting the option Select.
User can delete the captured image from the menu. See below images.
