1 Introduction
The PicoZed Z7010 / Z7020 SOM (System-On Module) is a low cost System-On-Module targeted
for broad use in many applications. The features provided by the PicoZed System-On-Module
consist of:
 Xilinx XC7Z010-1CLGG400 or Xilinx XC7Z020-1CLG400 AP SOC
o Primary configuration = QSPI Flash
o Auxiliary configuration option
 eMMC (Second Stage Bootloader)
o Auxiliary primary configuration options via End User Carrier Card
 JTAG
 microSD Card or SD Card
 Memory
o 1 GB DDR3 (x32)
o 128 Mb QSPI Flash
o 4GB eMMC
 Interfaces
o 10/100/1000 Ethernet PHY (Connector required on End User Carrier Card)
o USB 2.0 OTG PHY (Connector required on End User Carrier Card)
o Three 100-pin Micro Headers
 On-board Oscillator
o 33.333 MHz
 Power
o High-efficiency regulators for VCCINT, VCCPINT, VCCBRAM, VCCAUX,
VCCPAUX, VCCPLL, VCCO_0, VCCO_DDR, VCCO_MIO1 and VCCO_MIO0
o VCCO_34, VCCO_35, and VCCO_13 are powered from Expansion Card via
Three 100-pin Micro Headers
 Software
o Vivado Design Suite
 Download from www.xilinx.com/support/download.html
 Request a free DVD from
www.xilinx.com/onlinestore/dvd_fulfillment_request.htm

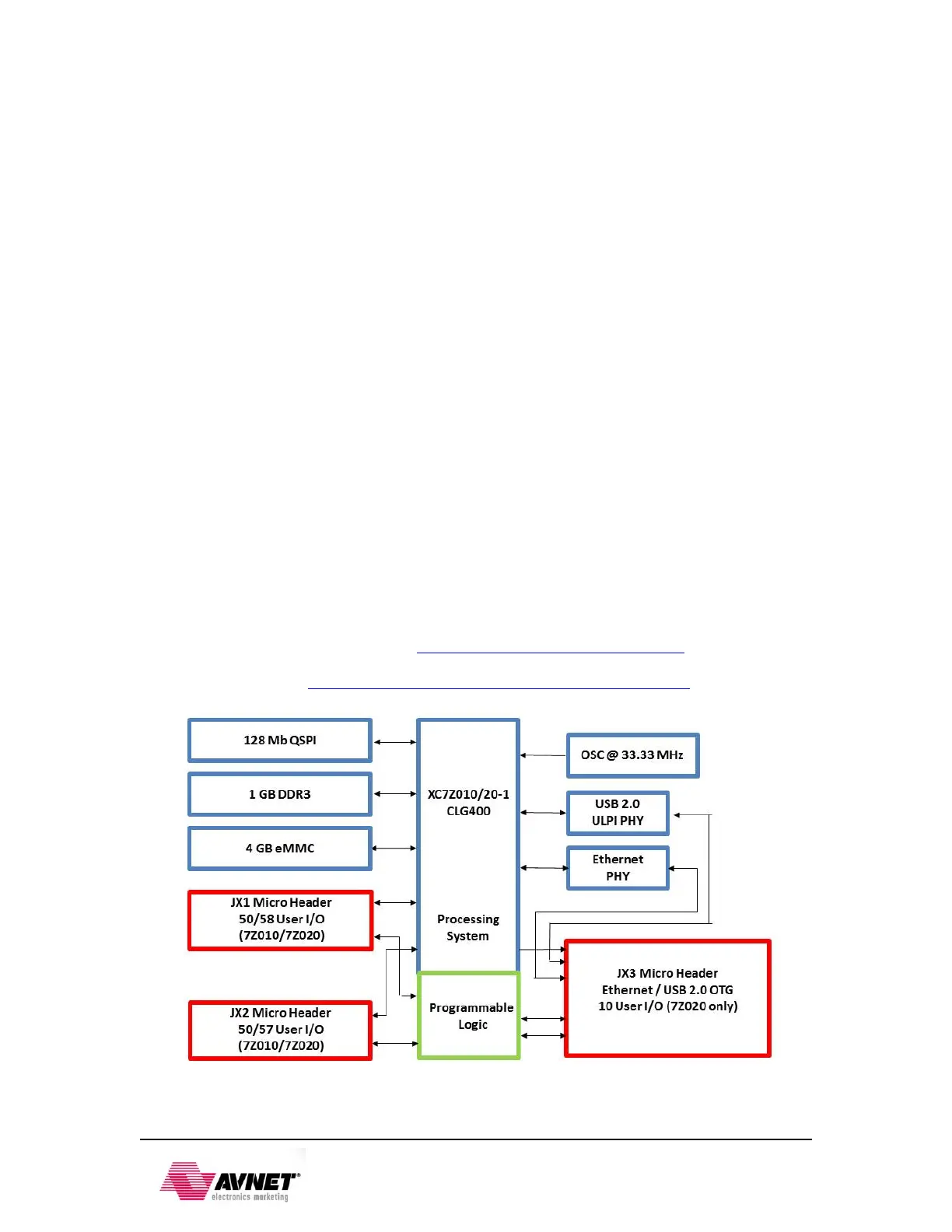

Figure 1 – PicoZed 7010/7020 Block Diagram
