1.3. PACKING LIST
 Avnet SmartEdge IIoT Gateway System

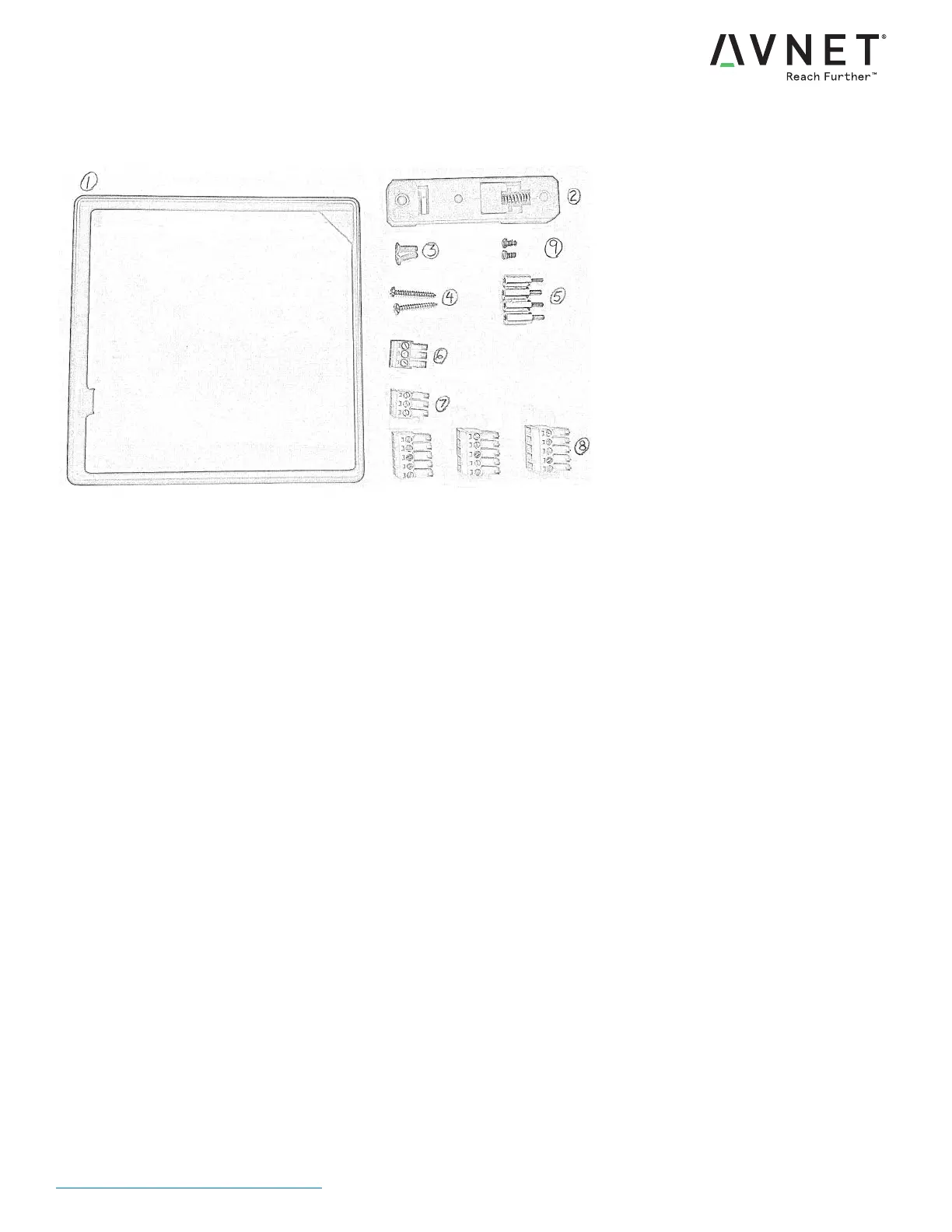

 Parts Kit:
 Extension ring: install to increase height of enclosure for Raspberry Pi HATs
 DIN rail mount with screws: install with flat head screws
 Flat head screws (2): use to attach DIN rail mount
 Wall mount screws (2): install into wood or metal, placed 97mm apart vertically
 Standoffs (4): install on top of existing standoffs when using extension ring
 3 Position terminal block, black (1): use for DC-IN connection
 3 Position terminal block, green (1): use for CANbus connection
 5 Position terminal block, green (3): use for Digital I/O and RS485 connection
 Pan head screws (2): use to secure a HAT onto the Gateway
 Quick Start Guide
 Safety Leaflet
